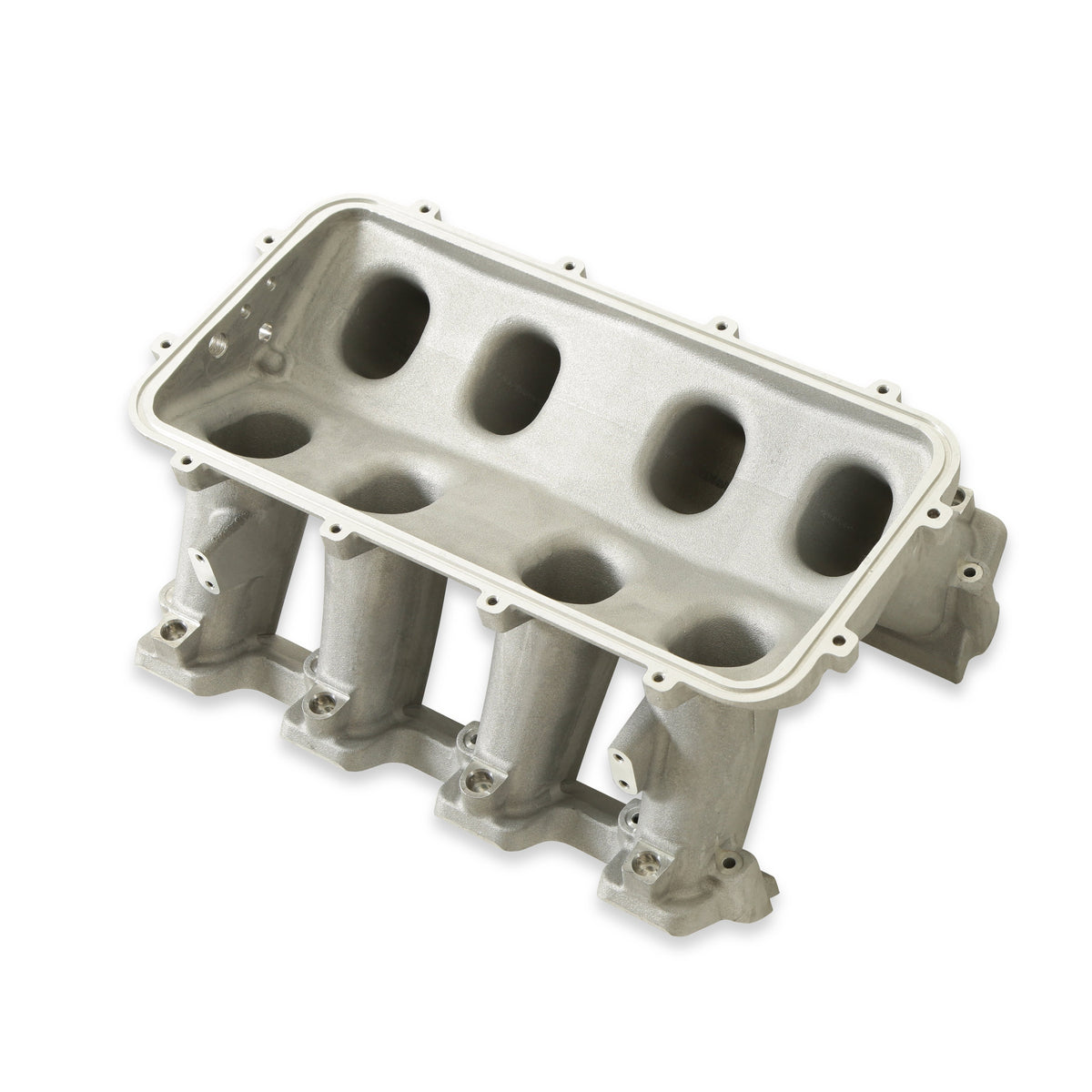

Holley EFI Holley Hi-Ram Lower Manifold - GM LS3/L92 - 300-214
$949.95
Skip to product information
The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
Holley EFI Holley Hi-Ram Lower Manifold - GM LS3/L92 - 300-214
$949.95
Features:
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- Port Size – 2.49” Height x 1.21” Wide
- Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25” to 2.77 in²
- Mounting Flange Gasket Type – Round 3/32” O-Ring Viton, 3” I.D.
Product Specifications:
- Product Details: EFI Base Only LS3/L92
- Basic Operating RPM Range: 3500-8000 RPM
- Carburetor Flange: N/A
- Carburetor Quantity: N/A
- Carburetor Studs Included: N/A
- CNC Ported: No
- Color: Natural
- Construction: Cast
- Cylinder Head Port Shape: Rectangle
- Deck Height: 9.24 IN
- EGR Port: No
- Engine: GM LS3/L92
- Flange Style: N/A
- Fuel Injectors Included: No
- Fuel Rail(s) Included: Yes
- Fuel System Type: EFI
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Intake Port Gasket(s) Included: No
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Part Type: Engine Intake Manifold
- Plenum Finish: Natural
- Product Type: Intake Manifold Base
- Removable Runners: No
- Removable Top/Lid: Yes
- Single Or Dual Plane Type: Single Plane
- Throttle Body Bore Diameter: N/A
- Throttle Body Gasket Included: N/A
- Throttle Body Included: No
- Type of Component: Lower Manifold
- Vacuum Ports: Yes
Installation Notes:
These parts should be used for the following applications: Racing/Performance/Street Rodder where hood restrictions are NOT a consideration.
