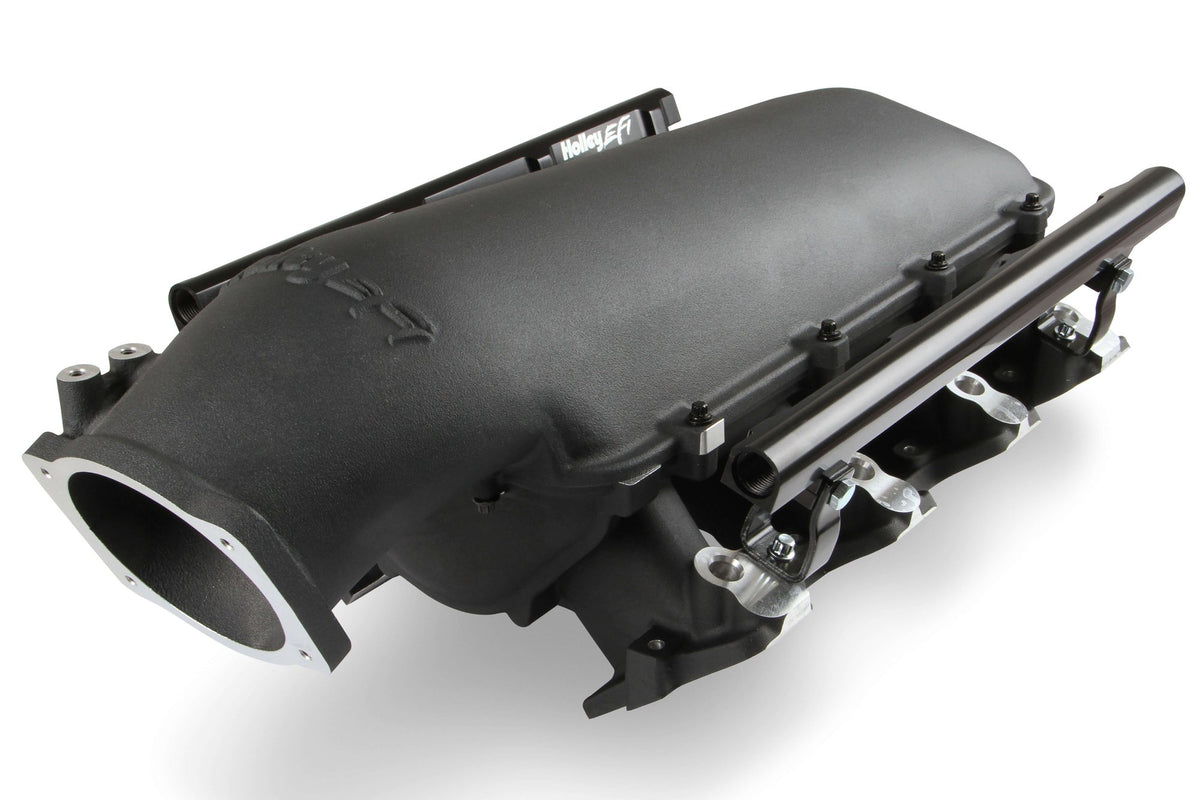

Holley EFI Holley Lo-Ram Manifold Kit Single Injector- Black - GM LS3/L92 - 300-679BK
$1,049.95
Skip to product information
applications and the 105 mm throttle body part number 112-581 or similar models. The base intake
injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel
ports (8 AN)
with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram
intake manifolds are designed for forced induction (supercharged or turbocharged) engine
manifold is designed with a low height to aid the packaging of a plenum mounted air-to-water
intercooler in a top-feed configuration. Additional manifold designs include both single and dual
rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring
The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped
Holley EFI Holley Lo-Ram Manifold Kit Single Injector- Black - GM LS3/L92 - 300-679BK
$1,049.95
Features:
- Modular design allowing the use of the included plenum entry
- Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application.
- Mounting hardware included with 3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN)
- High volume fuel rails for eight and sixteen injector configurations.
- Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
- Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration
Product Specifications:
- Product Details: Lo-Ram Manifold Kit - LS3 Top-feed. Single Injector Black Finish
- Basic Operating RPM Range: 3500-8000 RPM
- Carburetor Flange: N/A
- Carburetor Quantity: N/A
- Carburetor Studs Included: N/A
- CNC Ported: No
- Color: Black
- Construction: Cast
- Cylinder Head Port Shape: Rectangle
- Deck Height: 9.24 IN
- EGR Port: No
- Engine: GM LS3/L92
- Flange Style: EFI
- Front Maximum Height: 9.25" without Intercooler IN
- Fuel Injectors Included: No
- Fuel Rail(s) Included: Yes
- Fuel System Type: EFI
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Injector Quantity: Single
- Inlet Location: Top
- Intake Port Gasket(s) Included: No
- Manifold Type: Lo-Ram
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Part Type: Engine Intake Manifold
- Plenum Finish: Black
- Product Type: Intake Manifold
- Recommended Use: Forced Induction
- Removable Runners: No
- Removable Top/Lid: Yes
- Single Or Dual Plane Type: Single Plane
- Throttle Body Bore Diameter: 105 MM
- Throttle Body Gasket Included: Yes
- Throttle Body Included: No
- Vacuum Ports: Yes
Installation Notes:
Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height - 5.67" Total Height: Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top - 9.25" (without an intercooler installed) Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top, w/an intercooler installed - 9.25"+ the intercooler thickness
