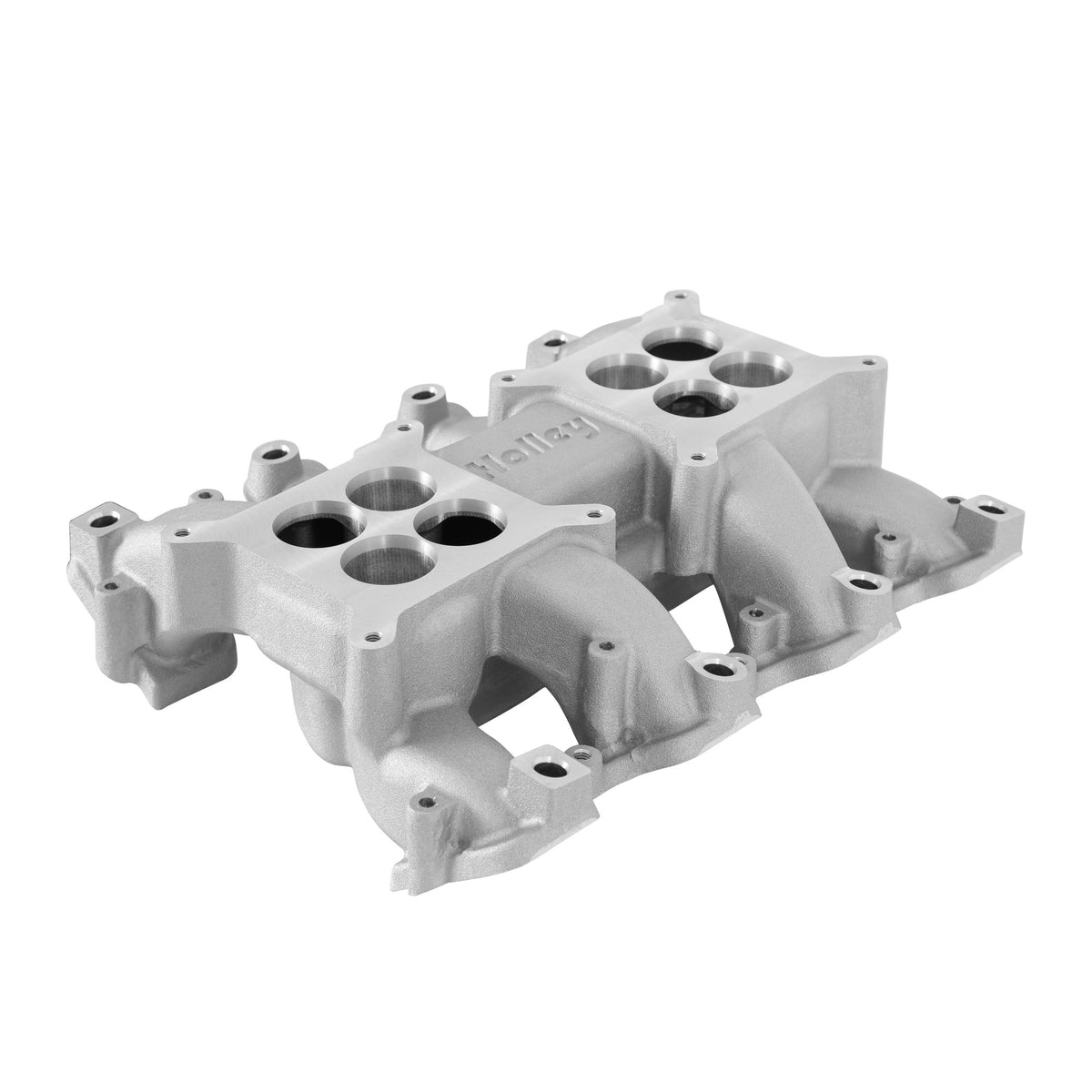

Holley EFI Holley LS EFI Manifold - 2x4 Dual Plane LS3/L92 - 300-134
$749.95
Skip to product information
The Holley GM 2x4 dual plane manifold is designed in the tradition of the great dual Holley 4160 induction systems that competed on drag strips, in Trans-Am at Lemans in the 1960's. The technology of the LS pushrod engine is now mated with the impressive multi-carb looks and performance of the muscle car era!
Holley EFI Holley LS EFI Manifold - 2x4 Dual Plane LS3/L92 - 300-134
$749.95
Features:
- Fits all GM LS Gen III or Gen IV engines equipped with LS3/L92 style rectangular port cylinder heads.
- Power band from 1500-7000rpm
- Dual plane design for equal distribution and great mid-range torque without comprimising top-end power
- Cast aluminum construction
- Perfect for any street/performance, muscle car or street rod enthusiast
Product Specifications:
- Product Details: Holley EFI 2x4 Dual Plane Intake Manifold. All GM LS Gen III or Gen IV engines equipped with LS3/L92 style rectangular port cylinder heads.
- Basic Operating RPM Range: 1500-6500 RPM
- Carburetor Flange: Square/4150
- Carburetor Quantity: 2
- Carburetor Studs Included: No
- CNC Ported: No
- Color: Silver
- Construction: Cast
- Cylinder Head Port Shape: Rectangle
- Deck Height: 9.24 IN
- EGR Port: No
- Engine: GM LS3/L92
- Flange Style: 4150 Square Bore
- Front Maximum Height: 4.73 IN
- Fuel Injectors Included: No
- Fuel Rail(s) Included: Yes
- Fuel System Type: EFI
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Intake Port Gasket(s) Included: Yes
- Manifold Type: Dual Plane
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Part Type: Engine Intake Manifold
- Plenum Finish: Natural
- Product Type: Intake Manifold
- Rear Maximum Height: 5.8 IN
- Removable Runners: No
- Removable Top/Lid: No
- Single Or Dual Plane Type: Dual Plane
- Throttle Body Bore Diameter: 1.75 IN
- Throttle Body Gasket Included: No
- Throttle Body Included: No
- Vacuum Ports: Yes
Installation Notes:
The LS engine architecture does not utilize an intake mounted water neck or distributor. NOTE: The EFI versions of the LS HI-Ram intake manifold and fuel rail are designed to accept Bosch Style EV-1 or Magneti Marelli Pico fuel injectors. OE LS fuel injectors may not fit properly in the Hi-Ram EFI intake manifold fuel rail assembly. There is a kit available separately for the LS7 Hi-Ram EFI to allow the use of stock LS7 fuel injectors, P/N 300-230 (see below in the service parts section).
