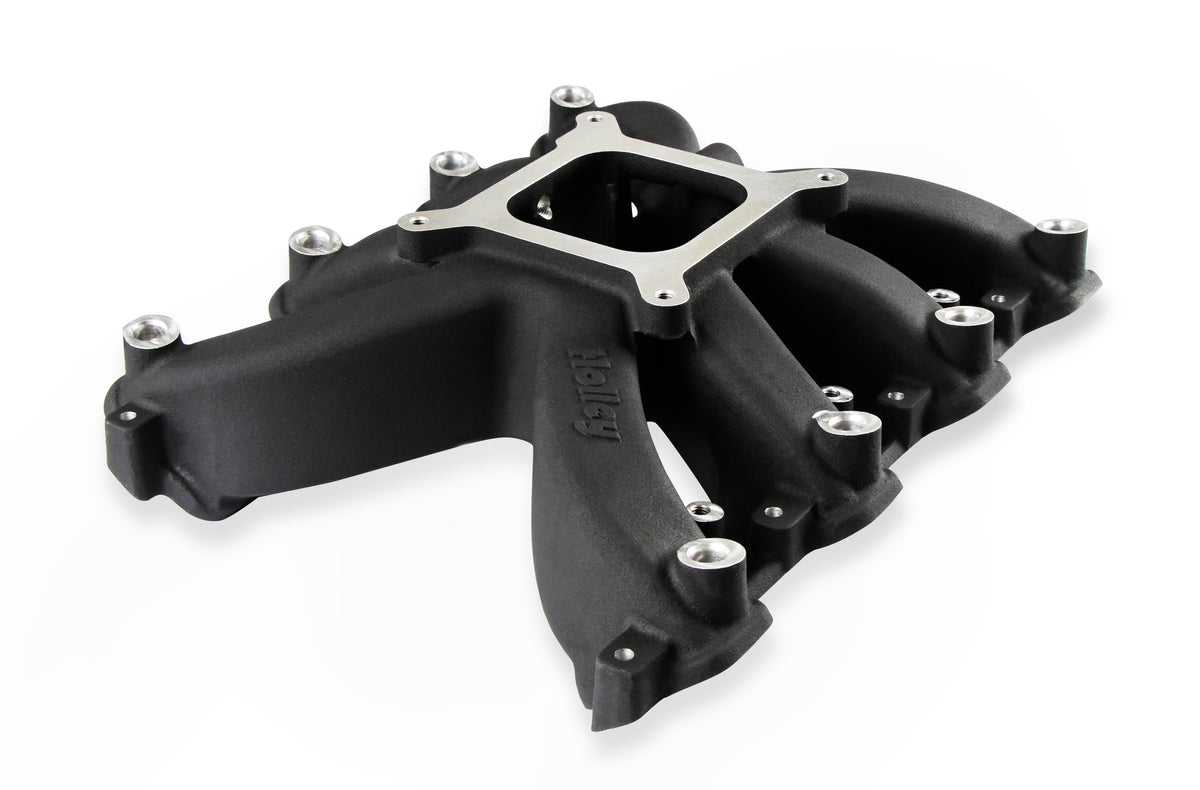

Holley EFI Holley Single Plane EFI Intake - GM LS7-Black - 300-269BK
$531.95
Skip to product information
Single Plane EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with LS7 cylinder heads-Black Finish
.
Minimum carb flange height - fit in vehicles with minimum hood modifications. Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications.
The manifold kit includes the fuel rails, mounting hardware, and o-ring cylinder head mounting flange gaskets.
Designed with a 4150 Square bore flange. Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
Holley EFI Holley Single Plane EFI Intake - GM LS7-Black - 300-269BK
$531.95
Features:
- 2500-7000 RPM power band
- 4150 Square bore flange
- Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
- Minimum carb flange height - fit in vehicles with minimum hood modifications
- Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange and bellhousing flange
- Port size - 2.33" height x 1.27" wide
- Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS mild power adder applications
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
- Includes FKM o-ring intake to cylinder head gaskets
- Weight - 11.5 lbs.
Product Specifications:
- Product Details: Single Plane EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with LS7 cylinder heads-Black Finish
- Basic Operating RPM Range: 2500-7000 RPM
- Carburetor Flange: Square/4150
- Carburetor Quantity: 1
- Carburetor Studs Included: No
- CNC Ported: No
- Color: Black
- Construction: Cast
- Cylinder Head Port Shape: Raised Rectangle
- Deck Height: 9.24 IN
- EGR Port: No
- Engine: GM LS7
- Flange Style: 4150 Square Bore
- Front Maximum Height: 5.417 IN
- Fuel Injectors Included: No
- Fuel Rail(s) Included: Yes
- Fuel System Type: EFI
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Intake Port Gasket(s) Included: No
- Manifold Type: Single Plane
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Plenum Finish: Black
- Product Type: Intake Manifold
- Rear Maximum Height: 5.417 IN
- Recommended Use: Forced Induction
- Removable Runners: No
- Removable Top/Lid: No
- Single Or Dual Plane Type: Single Plane
- Throttle Body Bore Diameter: 3.6 IN
- Throttle Body Gasket Included: No
- Throttle Body Included: No
- Vacuum Ports: Yes
Installation Notes:
Includes fuel rails, mounting hardware, and O-ring cylinder head mounting flange gaskets. The included fuel rails are designed to accept Bosch Style EV-1 or GM OE LS7 fuel injectors.
