Holley EFI Holley Standalone Digital Dash Kit - 553-109
$1,749.95
Skip to product information
Have you been looking for a dash solution for your vehicle, but just cannot find anything you like or that is cost-effective? No need to look any further as Holley has created a full-color touch screen dash that includes sensors for monitoring basic engine parameters as well as a GPS speedometer all in a cost-effective package. Holley's standalone digital dash has great features such as, a weather-resistant aluminum housing for durability, multiple gauge and indicator type selections, customizable screen and gauge layouts, and a virtual switch panel just to name a few. With the integrated 3 axis accelerometer and data logging, the dash is ideal for anything from a JR dragster to Sportsman racing. It is also equally at home in a daily driver or a show winning roadster.
Holley EFI Holley Standalone Digital Dash Kit - 553-109
$1,749.95
Features:
- Plug and play to Holley EFI systems via CAN bus (not compatible with Sniper 2)
- Weatherproof aluminum housing allowing flexible mounting options (template included)
- 7” screen with 800 x 480 resolution measuring at 4.625" H x 7.5” W x 1" Depth
- Auto brightness and dimming with low glare to the touchscreen to view from any driving angle
- 10 preconfigured screens you can customize to personal preferences displaying any measurements
- Complete customizable display of all EFI parameters including every user configurable input and output available
- Numerous gauge and indicator types with limitless customization options
- Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
- Virtual switch panel replacing the need for physical switches in vehicles
- Built in warning lights and alarms to keep you alert for any set parameters
- Progressive shift light and multiconfiguration light bar
- Control and on-screen playback of data logs
- Download and save data logs to external USB memory stick or expand internal storage on onboard microSD card
- Integrated 3 Axis Accelerometer
- Ability to connect to Holley and non-Holley ECU’s

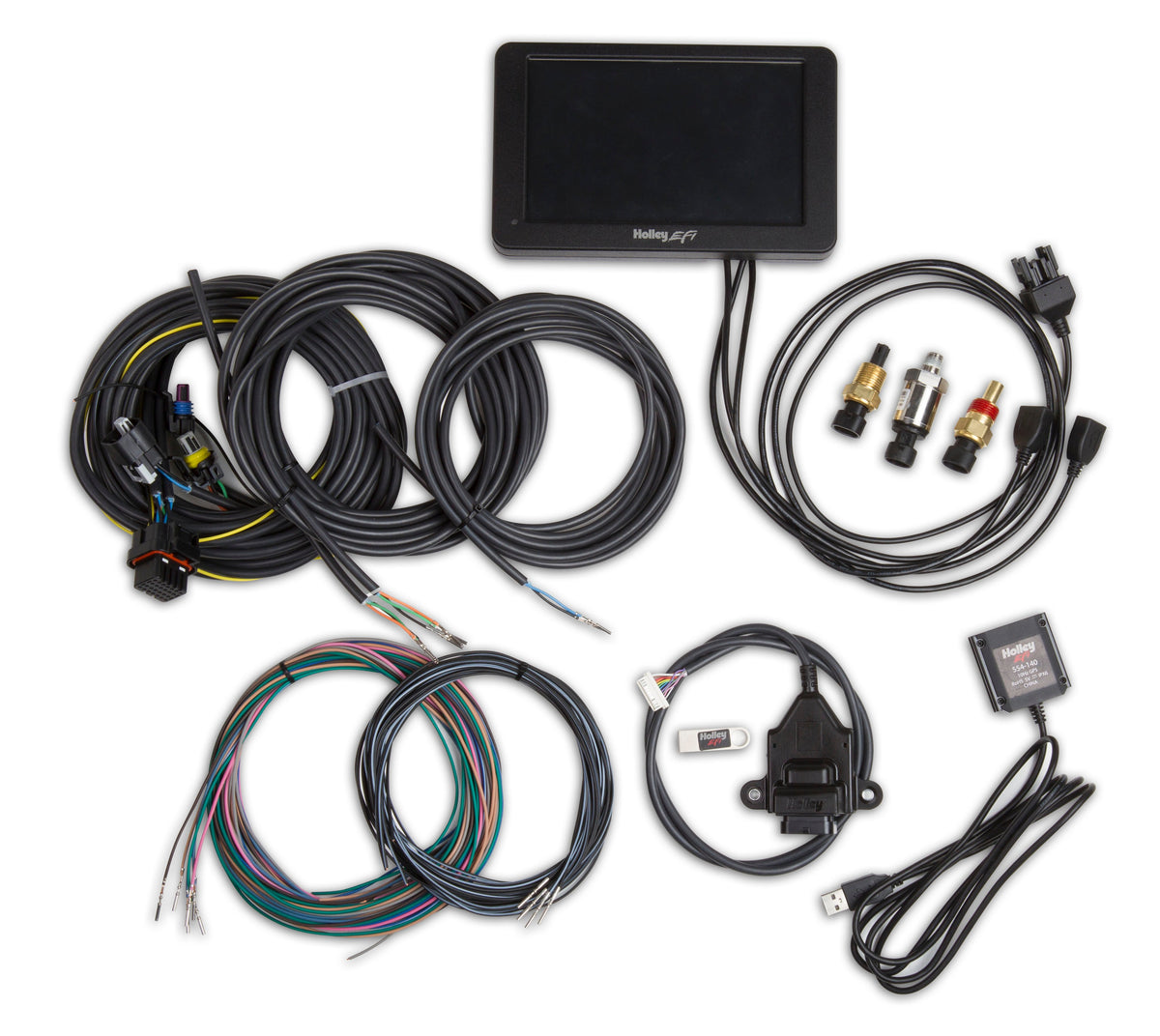

- Includes digital dash with input/output adapter, USB memory stick, terminated vehicle harness, oil pressure sensor, coolant temperature sensor, manifold air pressure (MAP) sensor, GPS module
Product Specifications:
- Product Details: Compatible with Holley EFI, Sniper 1, and Terminator X
- Depth: 1"
- Grade Type: Performance
- Height: 4.625"
- Illuminated: Yes
- Maximum Gauge Diameter: Programmable
- Minimum Gauge Diameter: Programmable
- Mounting Hardware Included: No
- Part Type: Electronic Multi-Purpose Gauge
- Product Type: Digital Dash
- Screen Size: 7" Diagonal
- Screen Type: Resistive touch screen
- Width: 7.5"
Installation Notes:
Tuning is not supported with Terminator X ECU's. Not compatible with Sniper 2.
