Sniper EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors.

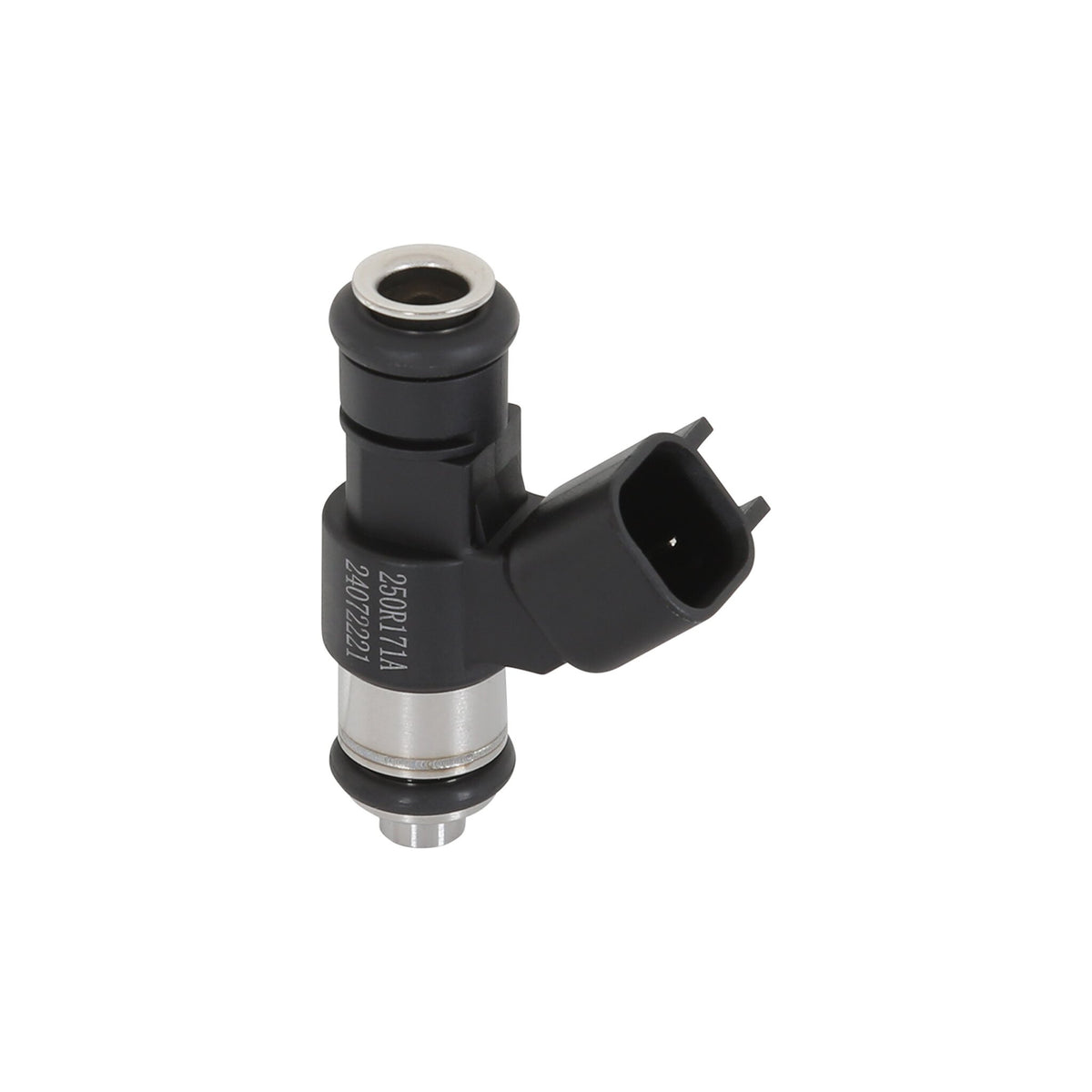

Holley EFI Holley Terminator X Fuel Injector - Individual - 522-361S
$92.75
Features:
- PICO/EV6 style performance injector
- High impedance (12.2 Ohms) for use with saturated drivers
- Rated injector flow: 36 lb/hr @ 43 PSI
- Supports up to 575 horsepower (set of 8)
- Tri-cone spray pattern
Product Specifications:
- Product Details: PICO/EV6 - 36 lb/hr - High Impedance
- Body Diameter: 0.65
- Body Length: 1.85"
- Body Style: EV6
- Connector Series: EV6
- Flow Matched: No
- Flow Rate: 36 4U
- Fuel Type: E-85, Gasoline
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Impedance: High (12.2 Ohm)
- O-Ring to O-Ring: 1.421
- Part Type: Fuel Injector
- Product Type: Fuel Injector
- Qty: 1
- Rated Injector Flow: 36 lb/hr
- Terminal Gender: Male
- Terminal Quantity: 1
- Terminal Type: Blade
- Wiring Harness Included: No
Installation Notes:
These injectors are intended to be used with the 300-260 intake manifold. They are NOT a service injector for the Sniper EFI TBI Product Line. Designed for use in setups with a 38mm distance between the o-ring seats on the fuel rail and intake manifold (commonly referred to as an "LS3-Style" injector), this injector features a USCAR connector and 14mm o-rings on both ends. It is an ideal fit for Holley EFI Intake manifolds that include fuel rail brackets for shorter LS3/LS7 length injectors. However, when used in an intake manifold designed for factory LS3/LS7 injectors, the bottom o-ring needs to be replaced to ensure proper fitment.
