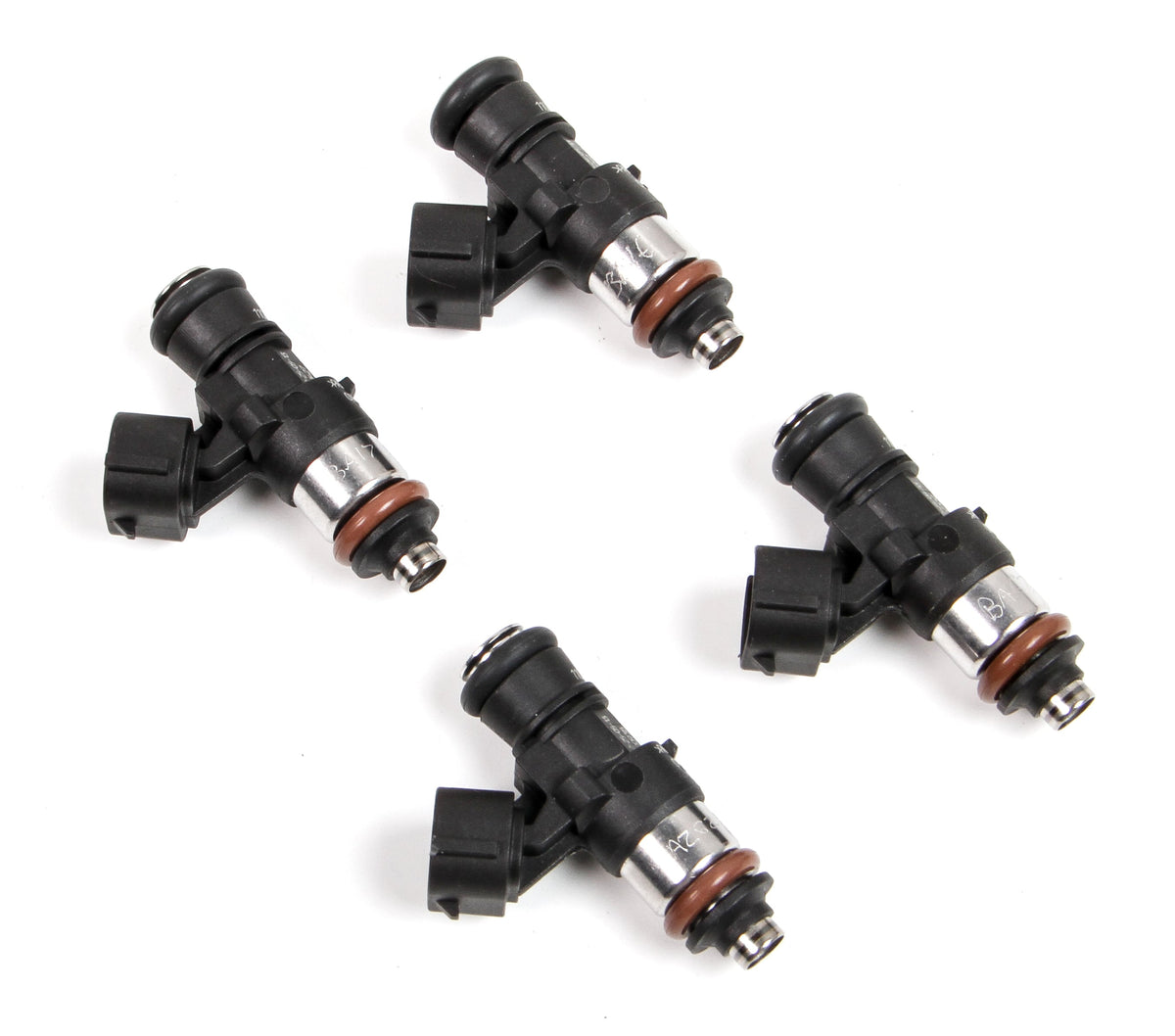

Holley EFI Holley Terminator X Fuel Injectors - Set of Four - 522-205
$1,549.95
Skip to product information
Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 205 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.
Holley EFI Holley Terminator X Fuel Injectors - Set of Four - 522-205
$1,549.95
Features:
- Bosch/EV14 performance injectors - set of 4
- High impedance for use with saturated drivers
- Rated injector flow: 205 lb/hr @ 43 PSI
- Supports up to 2600 Horsepower (8 Injectors)
- Maximum recommended fuel pressure: 75 PSI
- Requires Terminator Throttle Body Harness Part # 558-439
Product Specifications:
- Product Details: Bosch/EV14 - 205 lb/hr - High Impedance
- Body Diameter: 0.97
- Body Length: 2.85"
- Body Style: EV14
- CFM: N/A
- Color: Black
- Connector Series: EV6
- Connector Shape: EV6
- Flow Matched: No
- Flow Rate: 205 4U
- Fuel Injection Type: Port
- Fuel Type: E-85, Gasoline, Gasoline
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Impedance: High
- Length: 40mm
- Mounting Hardware Included: No
- O-Ring Quantity: 2 per injector
- O-Ring to O-Ring: 2.415"
- Part Type: Fuel Injector
- Product Type: Fuel Injector
- Qty: 4
- Rated Injector Flow: 205 lb/hr
- Retainer Clips Included: No
- Terminal Gender: Female
