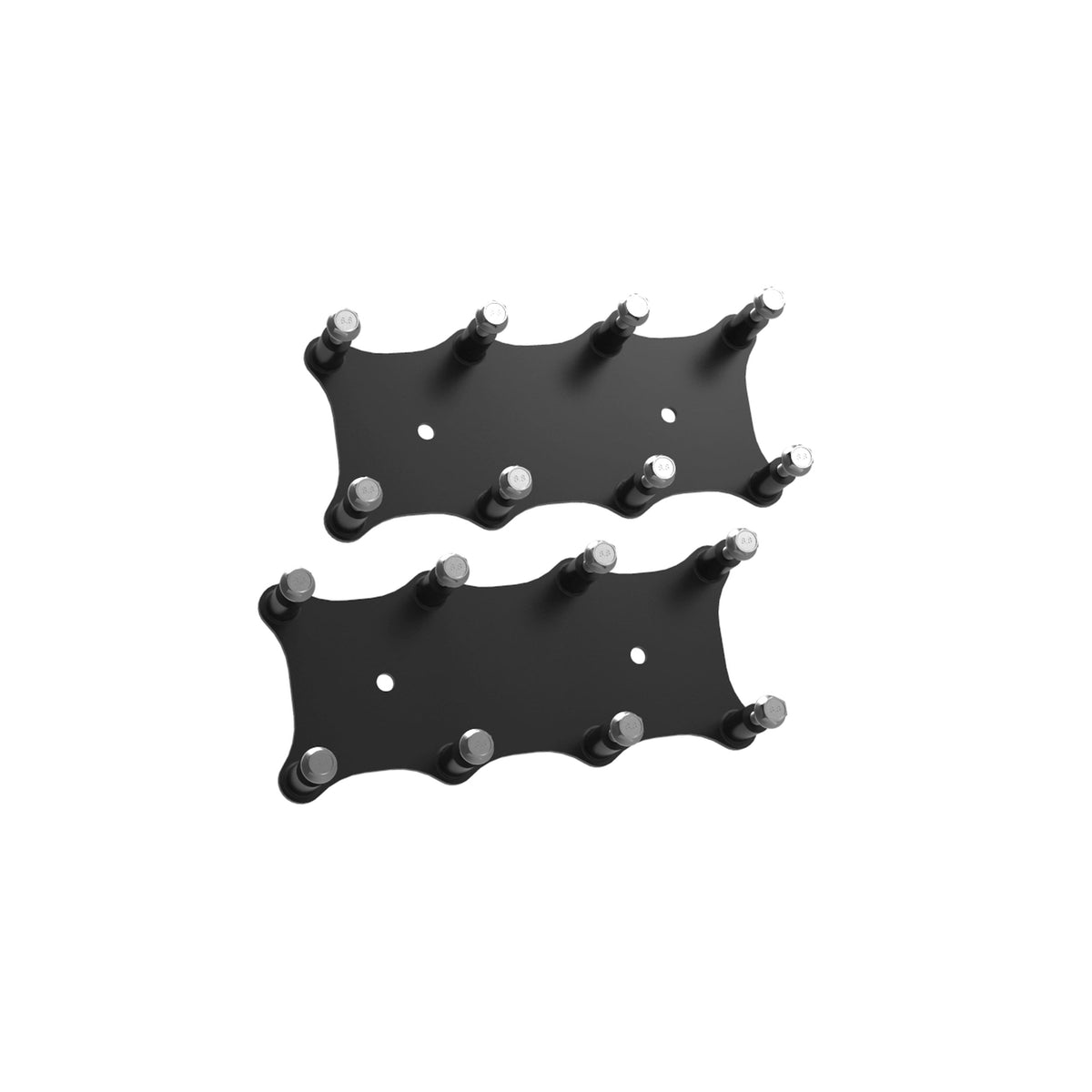

Holley EFI Ignition Coil Remote Relocation Bracket, Black Finish, Pair - 561-130
$129.95
Skip to product information
Holley is pleased to announce the arrival of our remote coil relocation brackets for all existing LS coil models, as well as for Holley EFI SmartCoils. These brackets are fabricated from lightweight aluminum and allow users to discreetly remote mount their LS engine coils at a location of their choice. Each kit was custom designed based on the specific coil model to ensure that the coils will mount as compactly as possible â€" size and shape between each kit will vary depending on the coil being used. Each kit includes two coil dependent mounting brackets (available in both natural aluminum and black) and mounting hardware for each coil.
Holley EFI Ignition Coil Remote Relocation Bracket, Black Finish, Pair - 561-130
$129.95
Features:
- Eliminates OE Coil-on-Cover clutter
- Designed to custom fit all LS Ignition coil models
- Fabricated from lightweight aluminum
- Includes coil mounting hardware
- Sold as a pair – Coils not included
- Available in Black & Natural
Product Specifications:
- Product Details: Gen V Coil Body, Remote Relocation System - Black Finish
- Coil Spacing: 0.904" / 22.95mm
- Coil Type: Gen V LS Coil / D510C
- Dimension A: With Coils: 9.8" L x 4.3" W x 2.0" H
- Dimension B: Bracket Only: 8.25" L x 3.6" W x 1" H
- Finish: Black
- Grade Type: Performance
- Hardware Included: Yes
- Material: Aluminum
- Mounting Hardware Included: Yes
- Product Type: Coil Bracket
- Thread Size: M6 x 1.0 x 25mm
Installation Notes:
Vehicle Applications: - 05-06 Chevy, Buick, Cadillac, Pontiac Cars w/ 5.3L, 6.0L, 7.0L Engines VIN Designation: M, E, C - 05-06 Chevy, GMC Trucks w/ 5.3L, 6.0L Engines VIN Designation: M, U, H Coil Reference Numbers: GM: 12570616 AC Delco: D510C MSD: 8265 / 82658 Holley: 410004 Accel:140043 / 140043-8
