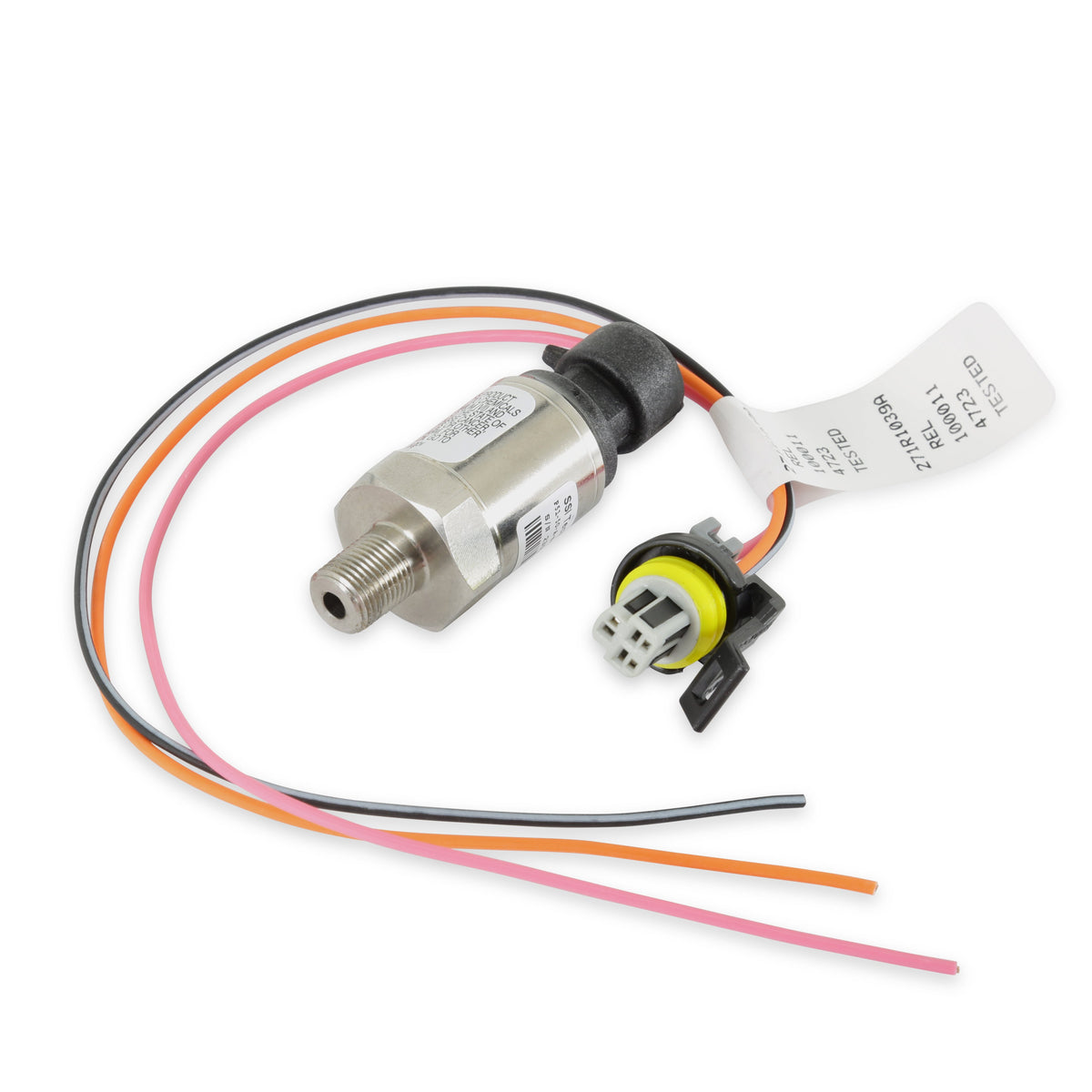

Holley EFI MAP Sensor - 3.5 Bar - 554-134
$194.95
Skip to product information
Preconfigured for Holley HP and Dominator systems, used in forced induction applications when a 2 or 3 Bar sensor is not sufficient for certain applications.
Holley EFI MAP Sensor - 3.5 Bar - 554-134
$194.95
Features:
- Stainless steel construction
- 0-345 kPa
- 3.5 Bar
- 1/8" - 27 NPT
- Linear voltage output of 0.5V - 4.5V
- Includes a pigtail with the sensor
Product Specifications:
- Product Details: 0-345 kPa Range
- Body Material: Stainless Steel
- Color: Black/Silver
- Connector Color: Black
- Connector Gender: Female
- Connector Quantity: 1
- Fitting Type: NPT
- Grade Type: Performance
- Housing Color: Polished
- MAP Sensor: 3.5 Bar
- Maximum Pressure Reading: 3.5 Bar
- Mount Type: Screw-In
- Part Type: Manifold Absolute Pressure Sensor
- Product Type: MAP Sensor
- Terminal Gender: Male
- Type: Electrical
- Wiring Harness Included: Yes
Installation Notes:
Not recommended to directly mount into the engine, recommended to remote mount the transducer. Extreme vibration can result in premature failure. Terminator systems monitor fuel pressure only. Use a small amount of PTFE thread sealer during installation.
