Holley EFI Pressure Sensor - 554-102
$155.95
Skip to product information
Plug and play for Holley Avenger, HP, and Dominator ECU fuel and oil pressure inputs.

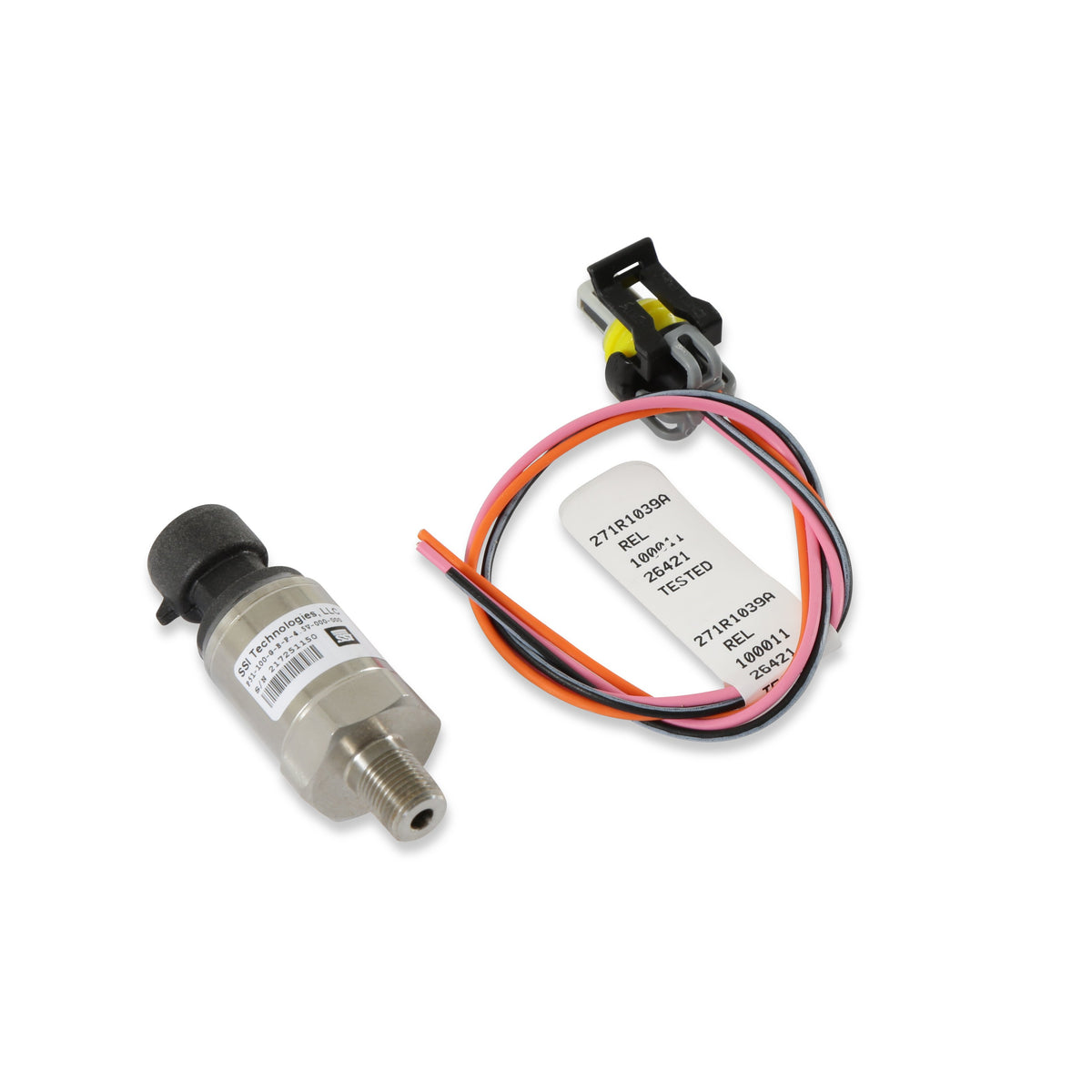

Holley EFI Pressure Sensor - 554-102
$155.95
Features:
- Plug and play for both fuel and oil pressure inputs with Holley EFI systems
- Stainless steel construction
- Linear voltage output of 0.5V - 4.5V
- Includes pigtail connector for custom configurations
Product Specifications:
- Product Details: 0-100 PSI Range
- Body Diameter: .875"
- Body Length: 2.558"
- Connector Gender: Male Female
- Connector Quantity: 1
- Fuel System Type: EFI
- Grade Type: Performance
- Inlet Size: 1/8" NPT
- Linear voltage output: .5 - 4.5 Volts
- Material: Stainless Steel
- Maximum Pressure Reading: 100 PS
- Mount Type: Screw-In
- Part Type: Fuel Injection Pressure Sensor
- Pressure Range: 0-100 PSI
- Product Type: Pressure Senser - Transducer
- reference voltage required: 5 Volts
- Terminal Gender: Female
- Terminal Quantity: 1
- Threaded End Diameter: 1/8-27 NPT IN
Installation Notes:
Not recommended to directly mount directly into the engine, recommended to remote mount the transducer. Extreme vibration can result in premature failure. Terminator systems monitor fuel pressure only. Use a small amount of PTFE thread sealer during installation.
