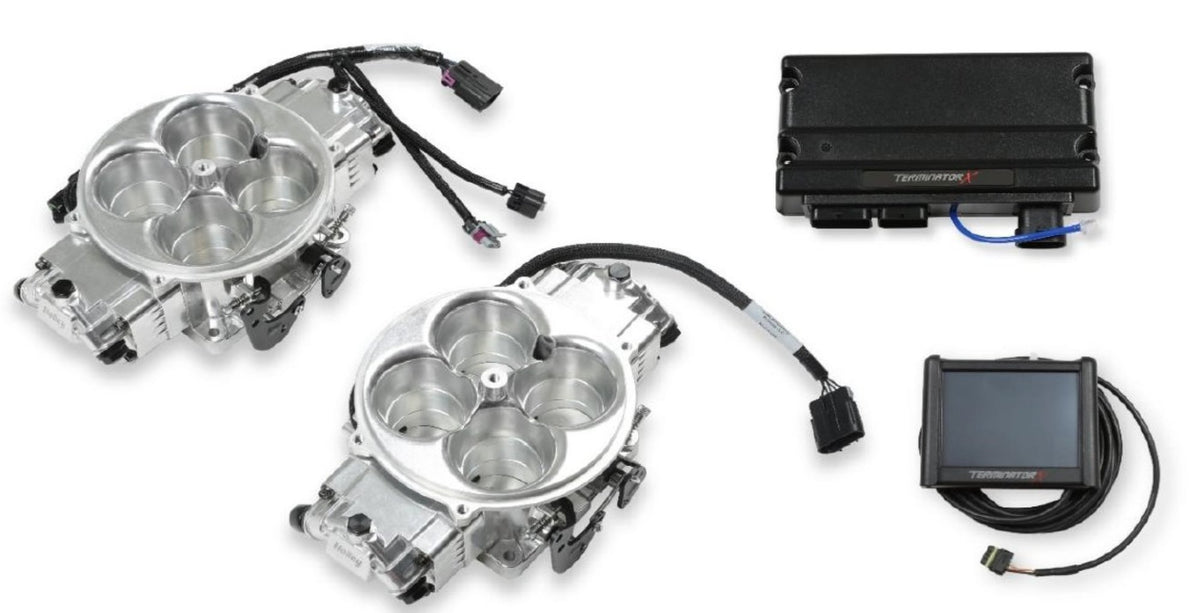

Holley EFI Terminator X Stealth 2x4 4500 Kit - Shiny - 550-1080
$3,949.95
Skip to product information
The Terminator X Stealth 4500 2x4 EFI systems from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 1500 HP naturally aspirated or 1250 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Designed to fit with Gen 3 Ultra Dominator air cleaners and fuel crossovers, allowing you to easily convert your 4500 equipped 800+ horsepower dragster or door car!
Holley EFI Terminator X Stealth 2x4 4500 Kit - Shiny - 550-1080
$3,949.95
Features:
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
- The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
- Throttle Linkage not included
- Bolt on 4500 Flange Carburetor Replacement for 2x4 intake manifolds
- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
- Universal engine harness allows you to easily install the Terminator X 2x4 4500 system on a wide variety of engine combinations
- Supports up to 1500 HP Naturally Aspirated or 1250 HP Forced Induction with Eight 100 Lb/Hr Injectors
- Included weld-in O2 sensor bung for the exhaust ensures a leak free oxygen sensor installation
- 2.125" Throttle Plates, Flow 1440 CFM each for large cubic inch engines
- Each throttle body contains 4x 100lb/hr fuel injectors
- Gen 3 Ultra Dominator Style 4 Bolt Air Cleaner Flange offering a variety of air cleaner options
- Available in 2 finishes, Shiny and Black
- Timing Control support integrated within the ECU using supporting components (distributor, ignition box, or crank trigger)
- Plug and play with Holley EFI Accessories, such as the 12.3" and 6.86" Pro Dash; CAN EGT; and Digital Analog style EFI gauges
- External fuel pressure regulator required, such as 12-848
- Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
Product Specifications:
- Product Details: 8 Injectors - 800-1500 HP
- Accelerometer Support: Yes
- Boost Control: Yes
- CAN-BUS Support: Yes
- CFM: 2880
- Coast Guard Approved: No
- Coil Per Cylinder Ignition Support: Yes
- Color: Silver
- Datalogging Support: Yes
- Distributor Included: No
- Dry Nitrous Control: Yes
- e85 Support: No
- EGT Support: Yes
- Finish: Shiny
- Flange Size: 4500
- Flange Style: Dominator
- Forced Induction HP@60PSI: 1250
- Forced Induction Support: Yes
- Fuel Filter Included: No
- Fuel Hose Included: No
- Fuel Injectors Included: Yes
- Fuel Pressure: 58.5 PSI
- Fuel Pressure Regulator Included: No
- Fuel Pump Included: No
- Grade Type: Performance
- Handheld Included: Yes
- Height: 3.85"
- Horsepower Rating (HP): 1500
- Idle Air Control Motor Included: No
- Ignition Timing Control: Yes
- Ignition Type: Universal
- Individual Cylinder Fuel Corrections: No
- Injector Size: 100 lb/hr @ 58.5 PSI
- Inlet / Outlet Size: 8AN
- Intake Manifold Included: No
- Knock Retard Support: Yes
- MAP Sensor: 1bar
- Max Horsepower Rating: 1500+
- Maximum Injector Quantity Supported: 8
- Mounting Hardware Included: No
- Multi-Stage Nitrous Control: Yes
- Naturally Aspirated HP@60PSI: 1500
- Part Type: Fuel Injection Conversion Kit
- PDM: No
- Power Distribution Module: No
- Product Type: EFI System
- Progressive Nitrous Control: Yes
- Self-Tuning: Yes
- Terminator LS Options: Fuel, Spark
- Throttle Bore: 2.125 in.
- Throttle Position Sensor Included: Yes
- Traction Control Support: Yes
- Transmission: N/A
- User-Tuneable: Yes
- Wet Nitrous Control: Yes
