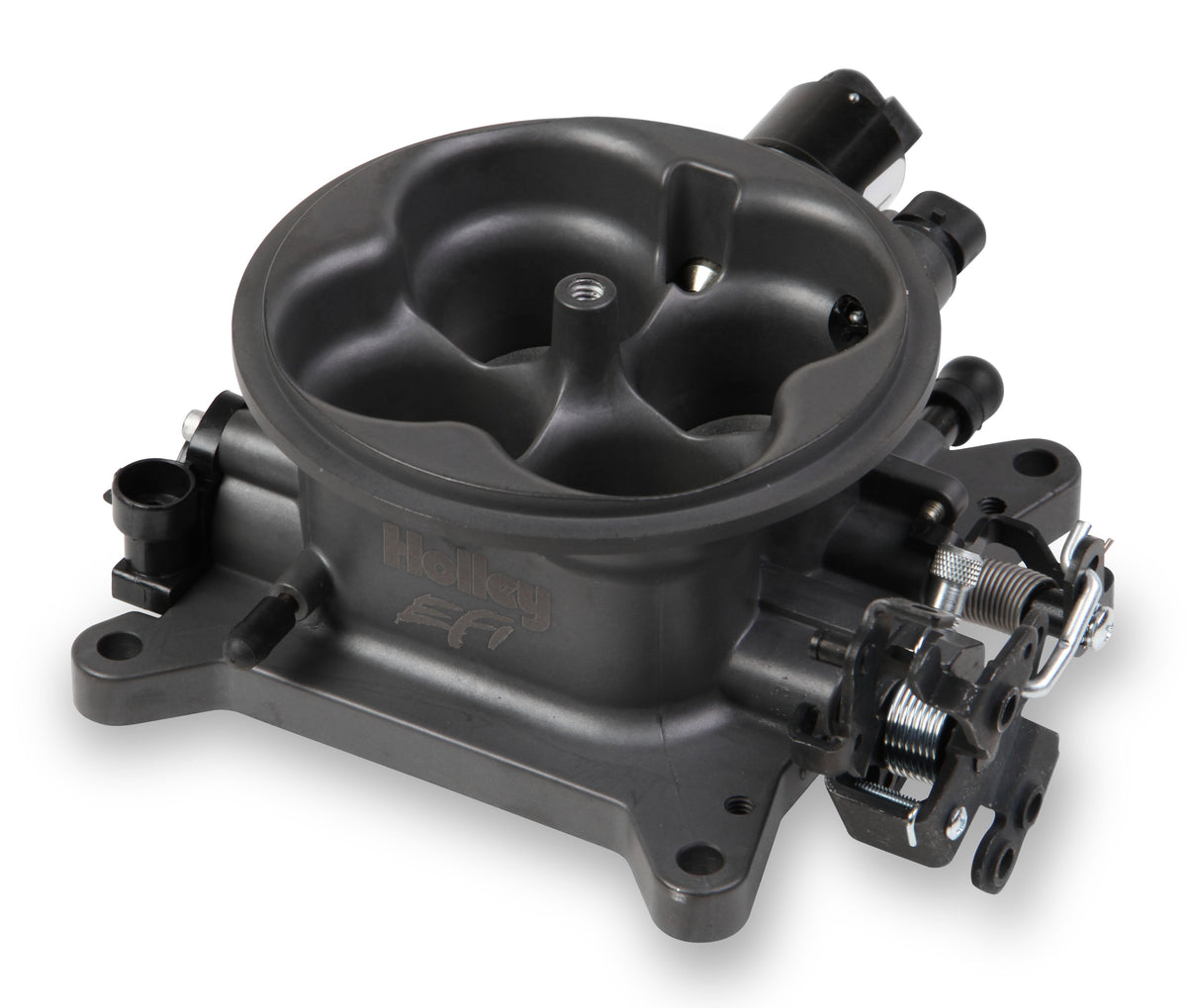

Holley EFI Universal 4BBL 1000CFM Throttle Body - 112-587
$779.95
Skip to product information
Holley's new 1000 CFM throttle body shares the same air entry area design that powers every NASCAR Sprint Cup Series™ car. The throttle body features integrated throttle position, idle air control, and intake air temperature sensors. Ford and GM transmission kick down levers as well as all necessary vacuum ports.
Holley EFI Universal 4BBL 1000CFM Throttle Body - 112-587
$779.95
Features:
- Standard square bore mounting pattern for installation on various intake manifolds
- Flows 1000 CFM to handle high horsepower engines
- Exclusive CFD computer modeled air entry area delivers maximum velocity and accelerated air speed
- Integrated TPS, IAC, and Air Temperature Sensor
- Hi Flow IAC passages for larger cubic inch engines for idle stability
- Ford Transmission kick down Lever for use with Ford automatic transmissions
- Integrated GM 700R4 transmission kick down location, no adapters needed
- (1) timed spark, (2) 3/8" and (2) 3/16" full manifold necessary vacuum ports
- 1.75" throttle plates mounted to PTFE coated throttle shafts for higher flow and a smoother feel
- High quality die cast aluminum for strength and weight reduction
- Hard Core Gray finish
Product Specifications:
- Product Details: Universal 4BBL 1000CFM 4150 Flange Throttle Body - Hard Core Gray
- Adjustable: Yes
- Barrels: 4
- Billet Color: Black
- Bore Diameter: 4x1.75 IN
- CFM: 1000
- Color: Black
- Finish: Black
- Flange Style: 4150/4160 Square Bore
- Fuel Injectors Included: No
- Fuel System Type: EFI
- Gasket Or Seal Included: No
- Grade Type: Performance
- Idle Air Control Motor Included: Yes
- Mounting Hardware Included: No
- Part Type: Fuel Injection Throttle Body
- Product Type: Throttle Body
- Throttle Body Finish: Hardcore Gray
- Throttle Body Material: Cast Aluminum
- Throttle Body Spacer Included: No
- Throttle Bore: 1.750 inch
- Throttle Position Sensor Included: Yes
Installation Notes:
This throttle body is an air valve only (no injectors).
