Holley EFI Universal Cam Sync Systems - 556-123
$399.95
Skip to product information
Specifically designed for use in unlimited racing applications equipped with an external, dry timing-belt, cam drive system, where the bracket must be remote mounted to a front motor plate or some mounting surface other than a designated cam cover mounting flange. (i.e.: Early model Small & Big Block Fords, etc.)
Holley EFI Universal Cam Sync Systems - 556-123
$399.95
Features:

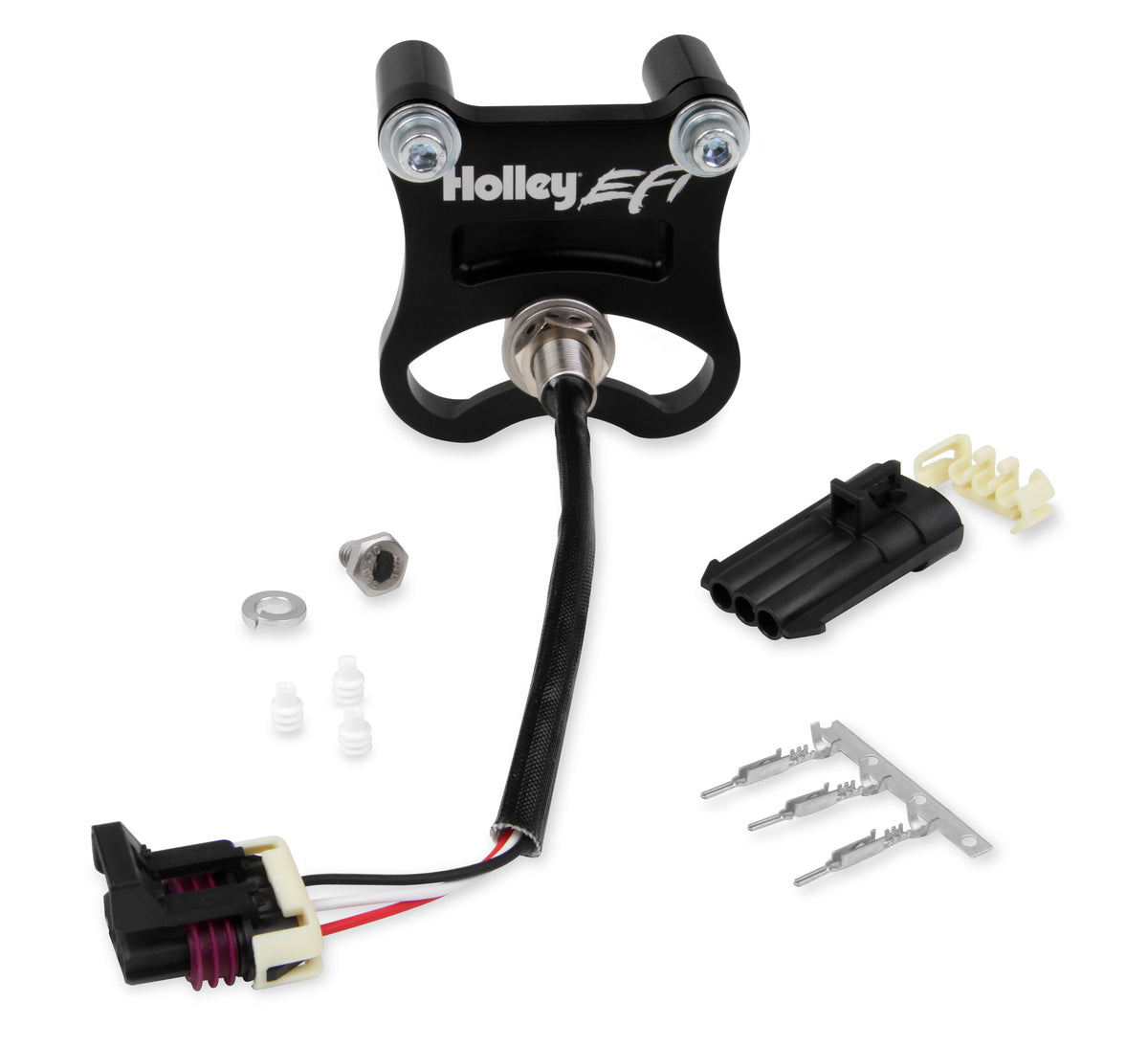

- Includes 3 wire hall-effect sensor, all billet constructed, anodized, aluminum bracket & stainless T-Nut, better than grade 8 mounting hardware, mating connector, and SS ¼”-20 “flying magnet” screw w/ high-temp, rare-earth magnet
- Unique t-nut and bracket design allows for complete sensor adjustment from the outside of the bracket with a single jam nut
- Designed to provide a plug-&-play cam position signal to Holley EFI systems yet compatible with any EFI system which can read a digital, square-wave cam input signal
- Bracket assembly can be mounted at any angle about the perimeter of the cam pulley to clear various front accessory drive arrangements
Product Specifications:
- Product Details: Early Model Small and Big Block Fords
- Application: Universal
- Bolt Hole Quantity: 2
- Color: Black
- Grade Type: Performance
- Mounting Bracket Included: Yes
- Mounting Hardware Included: Yes
- Mounting Type: Bolt On
- Part Type: Engine Camshaft Position Sensor
- Product Type: Hall Effect Cam Sync
- Sensor Type: Hall Effect
- Wire Quantity: 3
Installation Notes:
Installation of this kit should not be attempted until the instructions have been completely read and understood.
