Holley FUEL REGULATOR/DAMPER - 12-1001
$371.95
Skip to product information
Fuel pulse dampers act in tandem with the fuel pressure regulator to further control the fuel pressure in an EFI system. They act to smooth out the pressure pulsations caused by the injectors opening and closing as well as the fuel pump operating. These pulsations happen so quickly that in many cases they can't be identified with an analog gauge but can cause issues with fuel delivery to the engine.

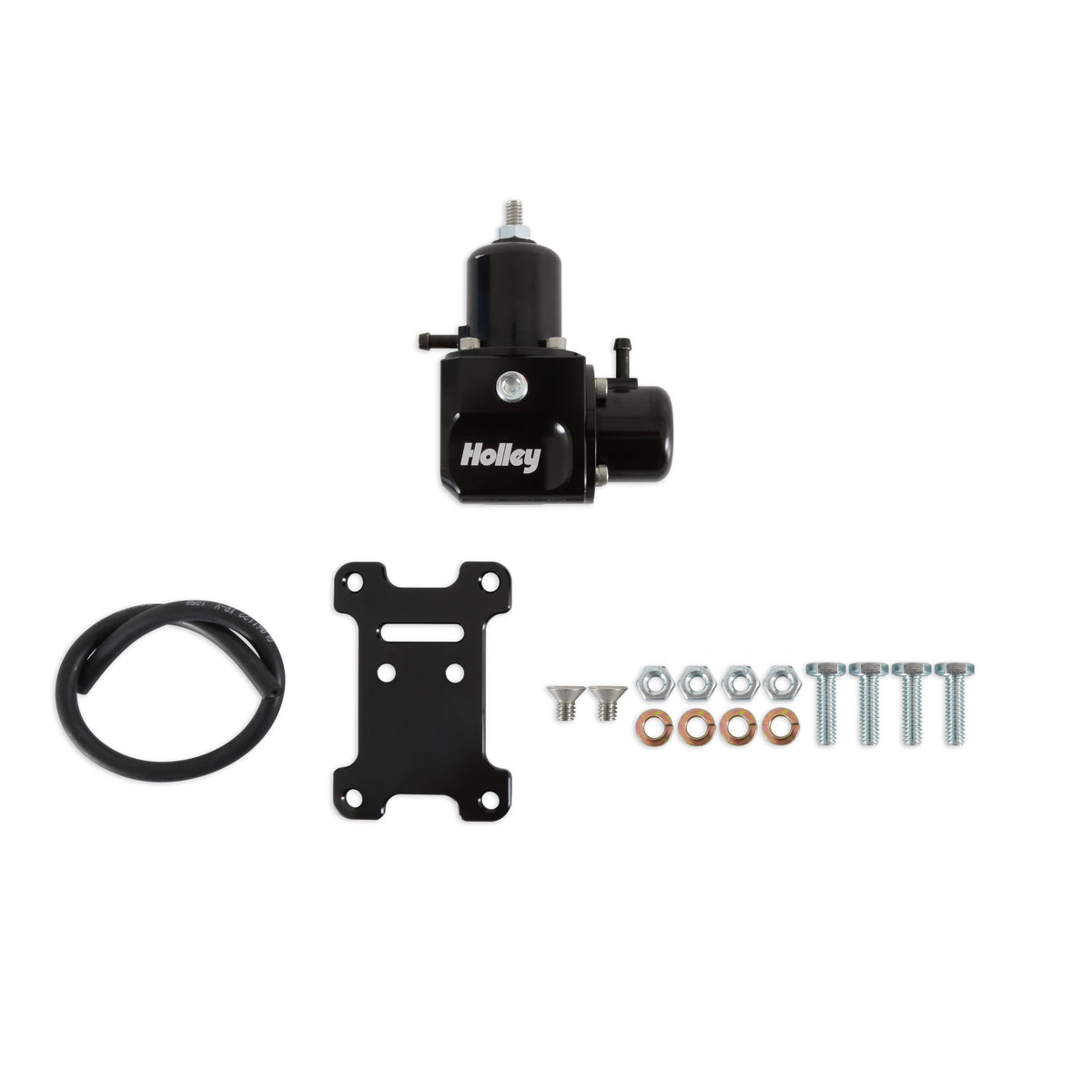

Holley FUEL REGULATOR/DAMPER - 12-1001
$371.95
Features:
- Engineered to stabilize pressure pulsations caused by the injectors opening, ideal for applications with large fuel injectors and high volume fuel pumps
- Compatible with any fuel -- full anodized billet aluminum construction with stainless steel springs and fluorosilicone diaphragm
- Fittings included for damper/regulator’s and direct mount dampers
- 1/8" NPT port on body of damper/regulators and in-line dampers for easy installation of mechanical pressure gauge or pressure transducer
- Vacuum fitting and one foot of hose included with all dampers for vacuum referencing
- Assembled and tested in the USA
Product Specifications:
- Product Details: REGULATOR/DAMPER, EXTENDED RANGE 40-100PSI
- Adjustable: Yes
- Finish: Anodized Black
- Fuel Type: Gasoline / Ethanol / Methanol / E85
- Gauge Included: No
- Gauge Port Included: Yes
- Grade Type: Performance
- Inlet / Outlet Size: 3/4-16 Female O-Ring (AN 8)
- Inlet Gender: Female
- Inlet Port Diameter: 8 AN ORB
- Inlet Port Quantity: 1
- Inlet Type: 8 AN ORB
- Maximum Pressure: 100 PS
- Minimum Pressure: 40 PS
- Mounting Bracket Included: Yes
- Mounting Type: Inline
- Outlet Gender: Female
- Outlet Port Diameter: 8 AN ORB
- Outlet Port Quantity: 1
- Outlet Type: 8 AN ORB
- Part Type: Fuel Pressure Regulator
- Port Quantity: 2
- Pressure Range: 40-100 PSI
- Product Type: Fuel Pressure Regulator/ Damper
- Rebuildable: Yes
- Style: Billet Aluminum
- Vacuum Port Quantity: 2
