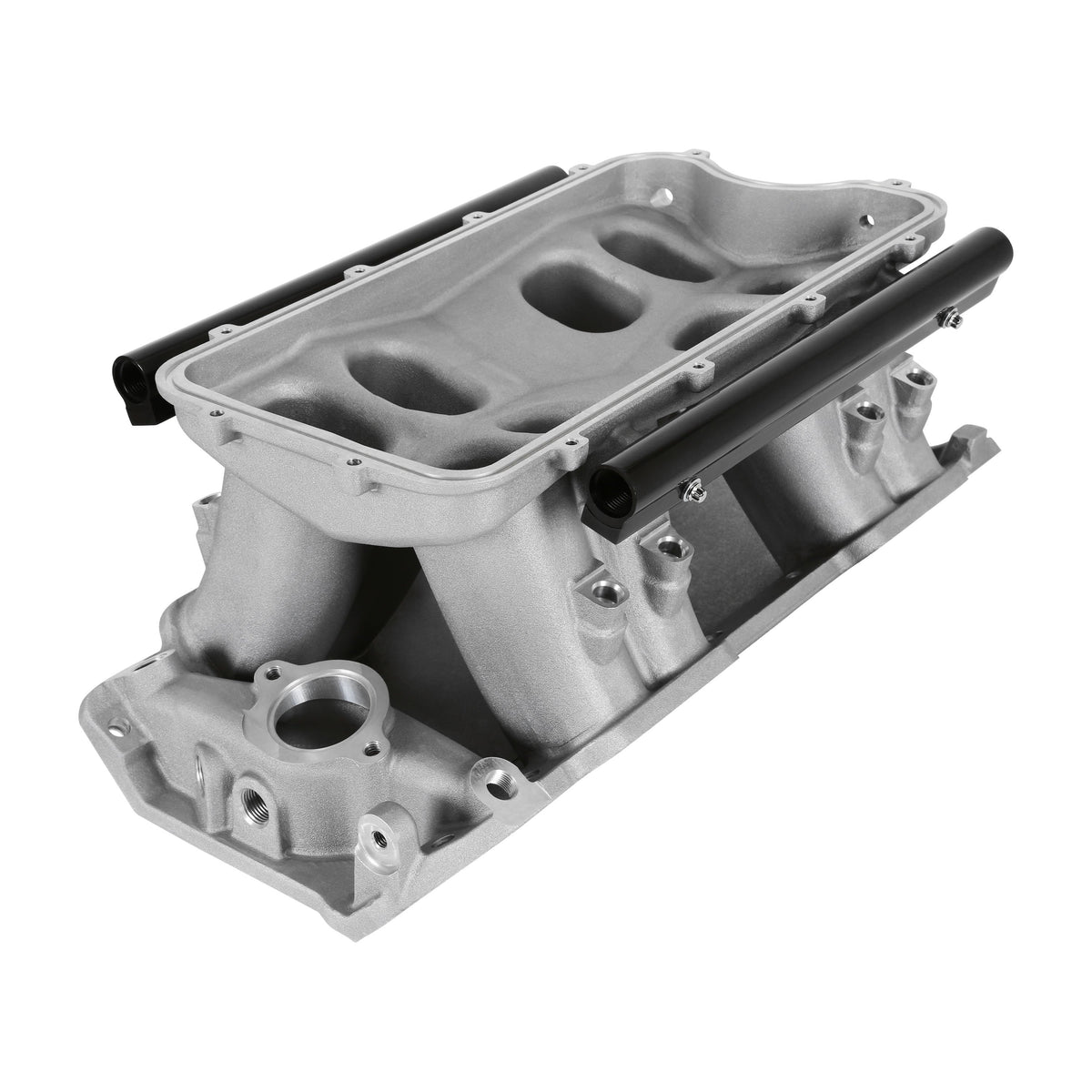

Holley Hi-Ram Base, Big Block Chevy - 300-961
$899.95
Skip to product information
Holley Hi-Ram EFI intake manifolds are now available for 1965 & later 396-502+ MKIV-MKVI Big Block Chevy engines with standard intake flange rectangle-port cylinder heads. Traditional Big Block Chevy engines can now also be fitted with the Holley Brand Hi-Ram type EFI intake manifolds that have so well served GM LS & LT, Gen 3 Hemi, SBF Ford, and Ford Coyote engine platforms. The iconic Chevy SBC & BBC platforms are primed for 21st century induction systems, Holley EFI engine management, and Holley fuel systems.
Holley Hi-Ram Base, Big Block Chevy - 300-961
$899.95
Features:
- 2.40” tall x 1.60” wide port flange openings, uses Mr. Gasket intake manifold gasket #5817
- Designed for 1965 & later 396-502+ MKIV-MKVI standard 9.80” deck height Big Block Chevy engines with standard intake flange rectangle-port cylinder heads.
- Requires the use of early type GM or small cap MSD or Holley Distributors. Not compatible with HEI distributors
- Cast 356-T6 Aluminum Construction, Natural, Satin As-Cast Aluminum Finish
- Power Band: 1500-8000 RPM
- The coolant outlet is a standard Chevy thermostat housing flange. and (2) 1/2 NPT and (1) 3/8 NPT coolant ports are provided.
- MAP sensor port is for a GM Gen IV LS MAP sensor, manifold also has provisions for (1) 1/8 NPT, (1) 1/4 NPT, (1) 3/8 NPT fittings to the plenum
- Black anodized EFI fuel rails are machined for -10AN O-ring fittings and come included with these EFI Hi-Ram kits.
Product Specifications:
- Product Details: Hi-Ram EFI Base for 1965 & later 396-502+ MKIV-MKVI Big Block Chevy engines with standard intake flange rectangle-port cylinder heads
- Basic Operating RPM Range: 1500-8000 RPM
- Carburetor Flange: N/A
- Carburetor Quantity: N/A
- Carburetor Studs Included: No
- CNC Ported: No
- Color: Natural
- Construction: Cast
- Cylinder Head Port Shape: Rectangle
- Deck Height: 9.8 IN
- EGR Port: No
- Engine: Chevy Big Block V8
- Flange Style: N/A
- Fuel Injectors Included: No
- Fuel Rail(s) Included: Yes
- Fuel System Type: EFI
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Intake Port Gasket(s) Included: No
- Manifold Type: Hi-Ram
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Part Type: Engine Intake Manifold
- Plenum Finish: Natural
- Product Type: Intake Manifold Base
- Removable Runners: No
- Removable Top/Lid: Yes
- Single Or Dual Plane Type: Single Plane
- Throttle Body Bore Diameter: N/A
- Throttle Body Gasket Included: No
- Throttle Body Included: No
- Type of Component: Lower Manifold
- Vacuum Ports: Yes
