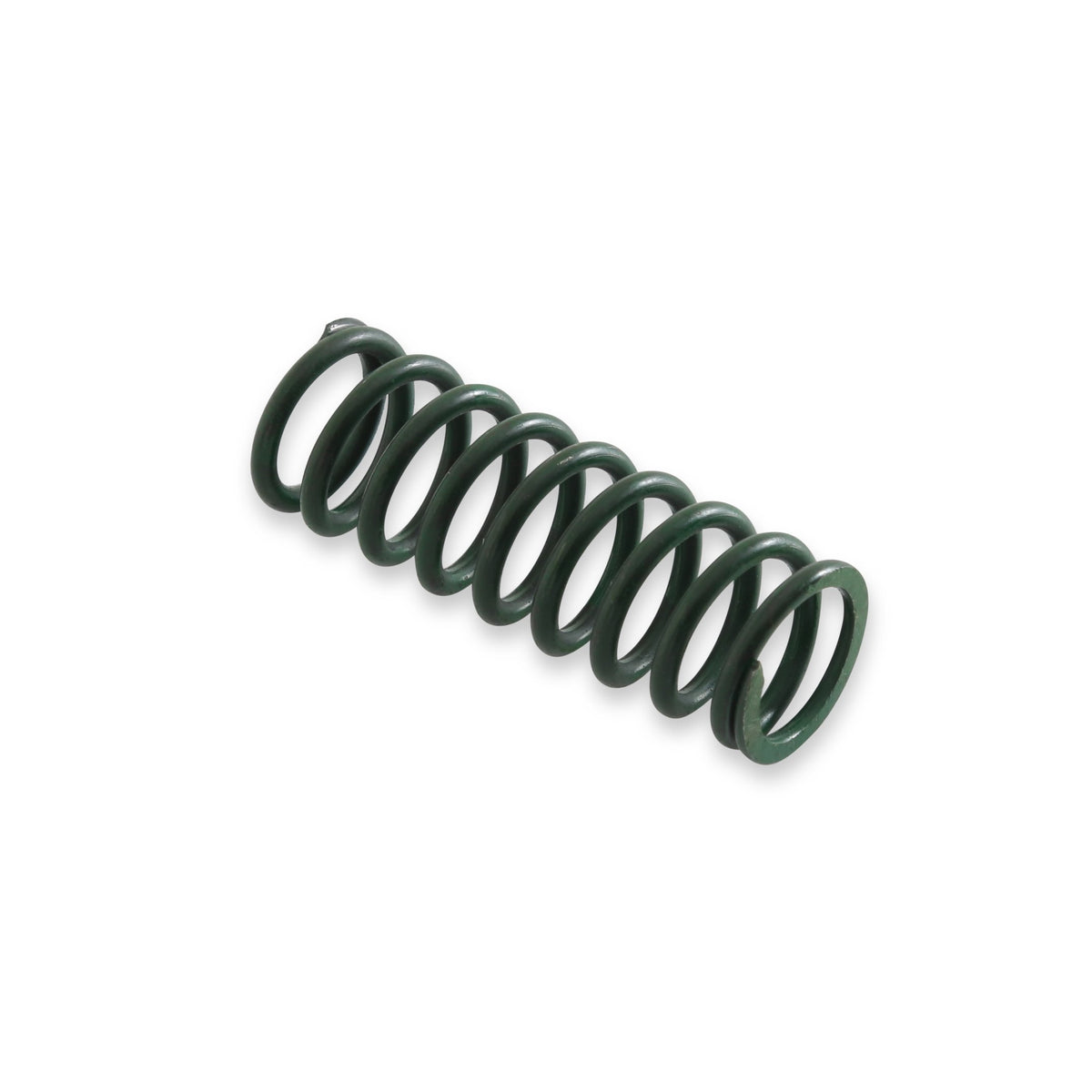

Holley High Pressure Spring - Godzilla 7.3L Engine - 302-102
$13.83
Skip to product information
For certain applications, higher than normal oil pressure is required. Typically, the oil pan must be removed to change the pressure spring on an oil pump. The Holley oil system allows direct access to the spring through the access port on the bottom front of the pan. Holley high-pressure spring P/N 302-102 can be purchased and installed to increase oil pressure by approximately 10 PSI at higher RPMs. To change the spring, remove the port plug, spring, and plunger. In some cases, the plunger may stay in the port. Make sure when reassembling the plunger is on top of the spring and oriented correctly.
Holley High Pressure Spring - Godzilla 7.3L Engine - 302-102
$13.83
Features:
- Increases oil pressure by approximately 10psi at higher RPM
Product Specifications:
- Product Details: Fits 2020 & Up Ford 7.3L Gasoline V8 Godzilla Engines with Holley Oil Pump and Pan
- Coil Quantity: 9
- Engine: Ford 7.3L Godzilla
- Grade Type: Performance
- Material: Steel
- Part Type: Engine Oil Pressure Relief Valve Spring
- Product Type: Oil Pressure Spring
- Push Or Pull Type: Push
Installation Notes:
Torque plug to 30 ft./lbs. (use blue thread locker).
