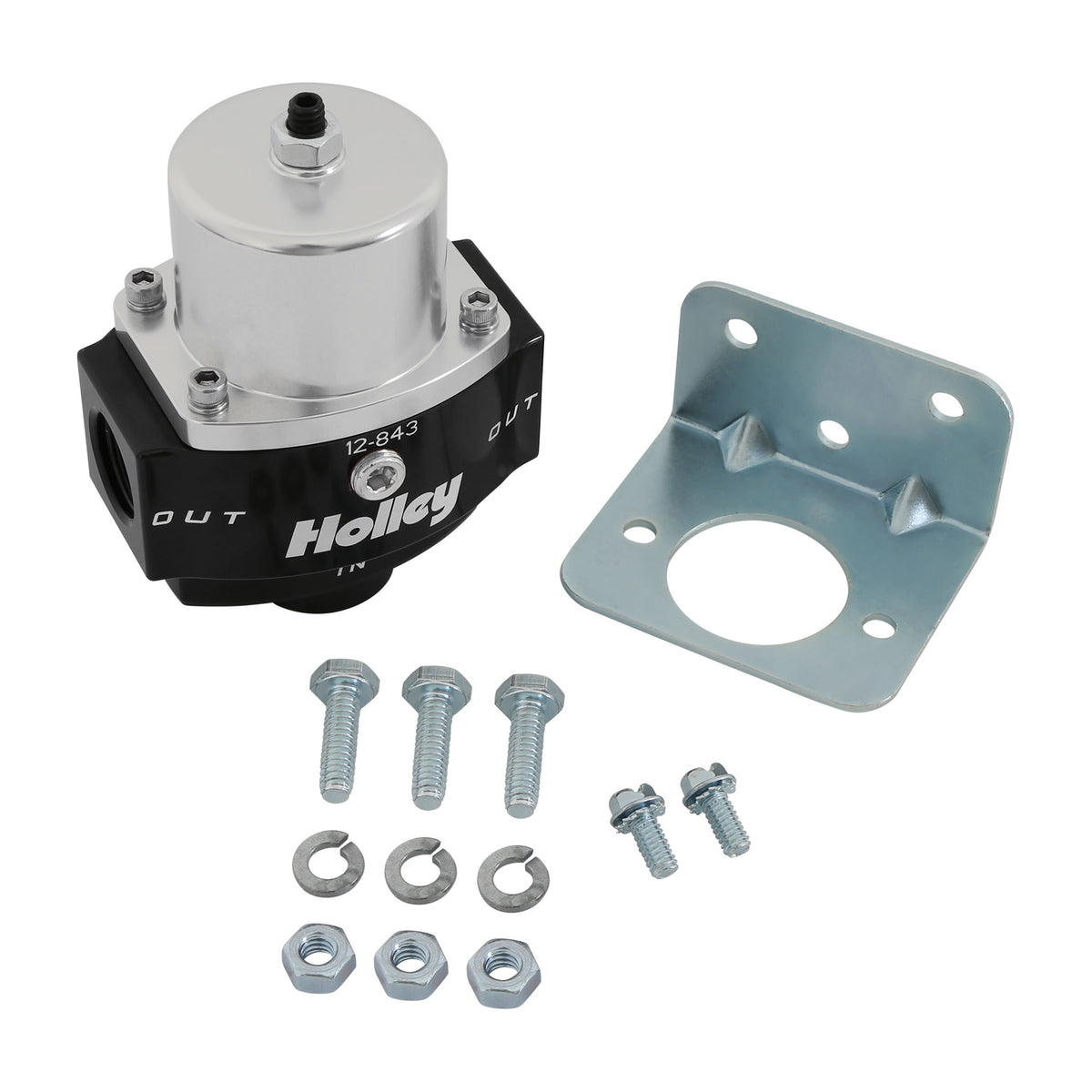

Holley HP Billet Carbureted Fuel Pressure Regulator - 12-843
$233.95
Skip to product information
Holley® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-843 fuel pressure regulator features (1) -10 AN O-ring inlet, (2) -8 AN O-ring outlets.
Holley HP Billet Carbureted Fuel Pressure Regulator - 12-843
$233.95
Features:
- Adjustable from 4.5-9 psi for precise fuel pressure adjustments
- Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
- Used in systems where a return line is not needed
- Use with electric or mechanical pumps
- (1) -10 an O-ring inlet,(2)-8 an O-ring outlets
- 1/8" NPT gauge port
- Comparable and interchangeable with popular Holley® 12-704 regulator
- Mounting bracket included
Product Specifications:
- Product Details: Street/Strip Carbureted Applications Two Port Adjustable from 4.5 to 9 PSI
- Adjustable: Yes
- Color: Black Anodized
- Fuel System: Carbureted
- Fuel Type: Diesel, Gasoline
- Gauge Included: No
- Gauge Port Included: Yes
- Grade Type: Performance
- Inlet Gender: Female
- Inlet Port Diameter: 10 AN ORB
- Inlet Port Quantity: 1
- Inlet Type: 10 AN ORB
- Material: Aluminum
- Maximum Pressure: 9 PS
- Minimum Pressure: 4.5 PS
- Mounting Bracket Included: Yes
- Mounting Type: Inline
- Outlet Gender: Female
- Outlet Port Diameter: 8 AN ORB
- Outlet Port Quantity: 2
- Outlet Size: 8 AN O-Ring
- Outlet Type: 8 AN ORB
- Part Type: Fuel Pressure Regulator
- Port Quantity: 2
- Pressure Range: 4.5-9 PSI
- Product Type: Fuel Pressure Regulator
- Rebuildable: Yes
- Style: Non-Return
Installation Notes:
Regulator is compatible with Diesel #1 and Diesel #2.
