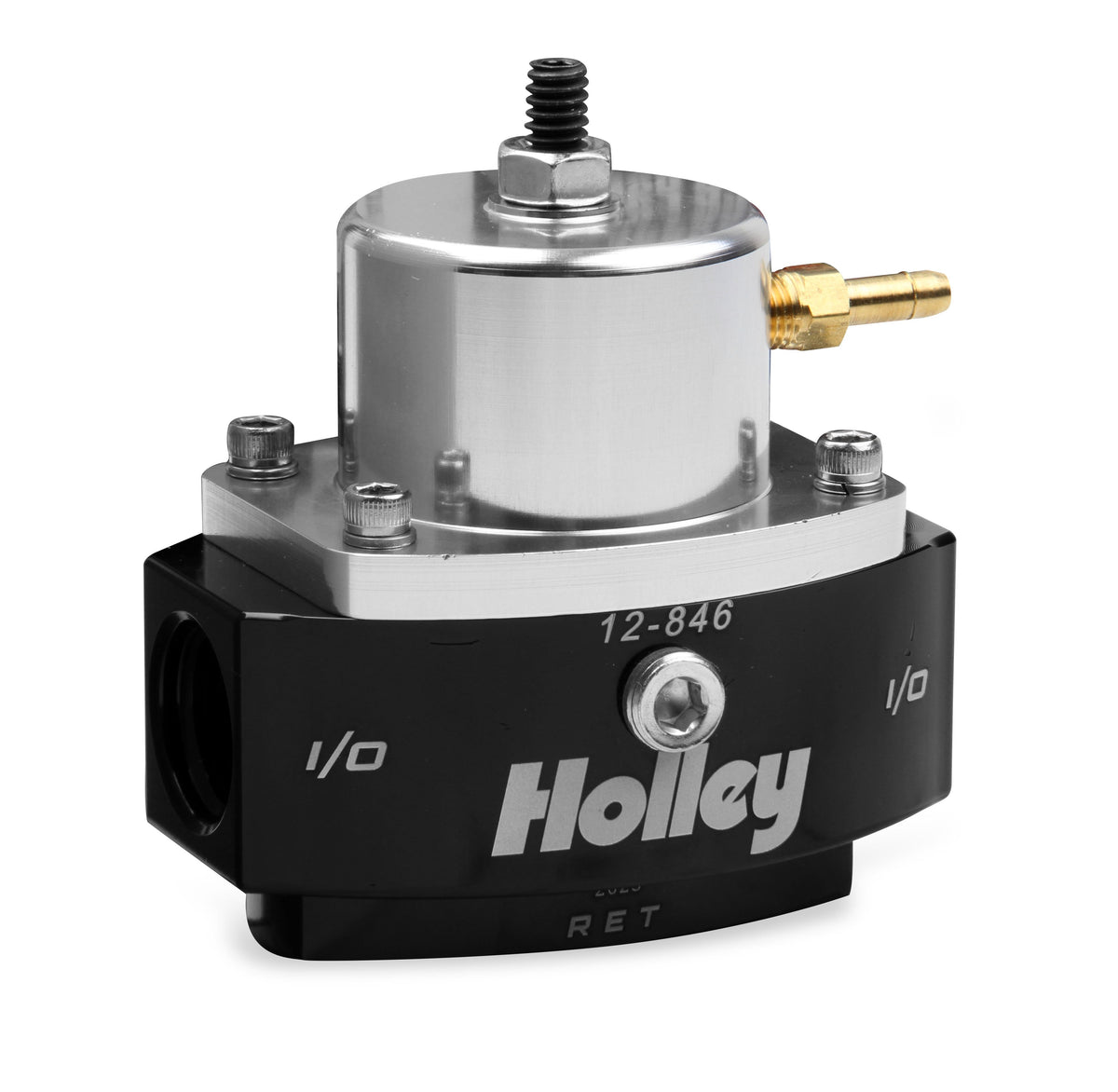

Holley HP Billet EFI By Pass Fuel Pressure Regulator - 12-846
$276.95
Skip to product information
Holley® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-846 fuel pressure regulator features(1) -8 AN O-ring inlet, (1) -8 AN O-ring outlet, (1) -6 AN O-ring return.
Holley HP Billet EFI By Pass Fuel Pressure Regulator - 12-846
$276.95
Features:
- Adjustable from 15-65 psi for precise fuel pressure adjustments
- Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
- Used in systems with a return line back to tank
- Includes fitting for manifold reference
- Use with electric pumps only
- (1) -8 an o-ring inlet, (1) -8 an o-ring outlet, (1) -6 an o-ring return
- 1/8" NPT gauge port
- Designed for use with the Holley® HP™ in-line fuel pumps or other high pressure electric pumps where return line is needed
- Mounting bracket included
Product Specifications:
- Product Details: Street/Strip EFI Applications Two Port Adjustable from 15 to 65 PSI Boost Reference - 1:1
- Adjustable: Yes
- Color: Black Anodized
- Fuel System: EFI
- Fuel Type: Diesel, Gasoline
- Gauge Port: Yes
- Grade Type: Performance
- Inlet Quantity: 1
- Inlet Size: 8 AN O-Ring
- Inlet Type: 8 AN ORB
- Material: Aluminum
- Mounting Hardware Included: Yes
- Mounting Type: Inline
- Outlet Quantity: 1
- Outlet Size: 8 AN O-Ring
- Outlet Type: 8 AN ORB
- Part Type: Fuel Pressure Regulator
- Port Quantity: 3
- Pressure Range: 15-65 PSI
- Product Type: Fuel Pressure Regulator
- Return Size: 6 AN O-Ring
- Style: Bypass
Installation Notes:
Regulator is compatible with Diesel #1 and Diesel #2.
