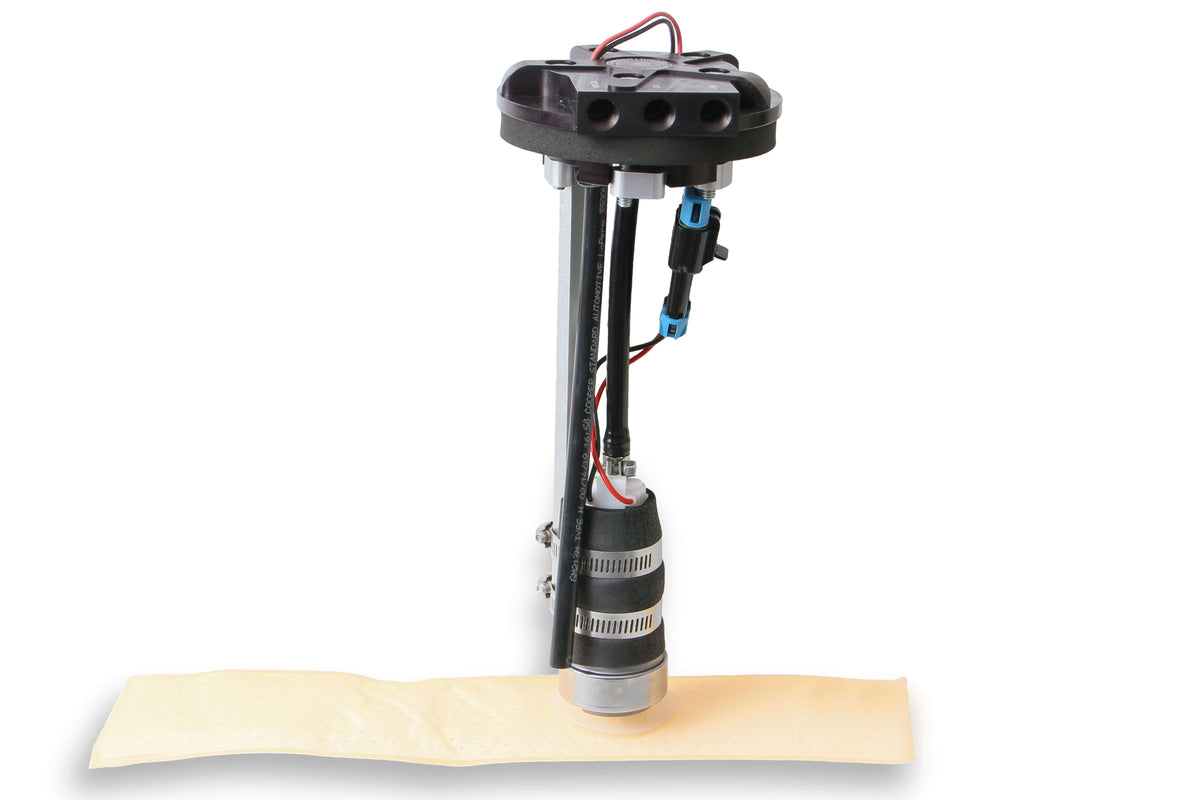

Holley In-Tank RetroFit Fuel Module 525 LPH Return Style - 12-134
$1,065.95
Skip to product information
The Holley In-tank RetroFit Fuel Modules are now available with a 525 LPH Pump.
Convert your factory tank or fuel cell to an in-tank EFI fuel system quickly and easily! And- add the benefits of a Holley Hydramat in the process! The conversion is easily accomplished with basic tools and requires no welding or fabrication. The billet aluminum module design includes a billet pump hanger bracket to control pump vibration while also providing a low profile 5 inch diameter design to fit where space is at a premium. Holley's innovative clamping system and integrated fuel pump makes it easy.
Supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...
Holley In-Tank RetroFit Fuel Module 525 LPH Return Style - 12-134
$1,065.95
Features:
- Retrofit Fuel Module 525 LPH- Return Style
- Installs in any fuel tank from 7.5” to 12” deep to fit a wide variety of applications
- The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed
- The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
- Includes innovative Holley Hydramat to ensure consistent fuel supply. The 3” x 15” HydraMat mounting flange has 6 clocking pin locations to allow for 360 degree adjustment to clear sending unit levels or any tank floor restrictions
- Black anodized aluminum construction for corrosion resistance and long lasting good looks
- ¼” NPT ports for a wide variety of plumbing options
- Optional roll over valve available
Product Specifications:
- Product Details: 525 LPH Drop-In Retrofit EFI Fuel System w/Hydramat Supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)
- Application: Universal
- Average Current Draw: 16.9 68
- Average Flow Rating: 525 LPH
- Connector Color: Black
- Connector Gender: Male
- Connector Quantity: 1
- Free Flow LPH: 525
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: No
- Fuel Tank Pressure Sensor Included: No
- Fuel Type: E85, Gasoline
- Gasket Or Seal Included: Yes
- Gasket Or Seal Material: Foam
- Grade Type: Performance
- Height: Adjustable
- Housing Material: Aluminum
- In Tank or External: In Tank
- Inlet Fitting Thread Size: 1/4 IN
- Inlet Quantity: One
- Inlet Type: NPT
- Internal Or External Strainer: External
- Lock Ring Included: Yes
- Material: Billet Aluminum
- Maximum Pressure: 60 PS
- Minimum Fuel Tank Depth: 7.5 Inches
- Mounting Hardware Included: Yes
- Negative Ground: Yes
- NPT Thread: 1/4 NPT
- Outlet Fitting Thread Size: 1/4 IN
- Outlet Quantity: One
- Outlet Type: NPT
- Part Type: Fuel Pump Module Assembly
- Product Type: Fuel Pump Module
- Pump Type: Electric
- Regulator Included: No
- Top Mount Diameter: 5 IN
- Universal Or Specific Fit: Universal
- Voltage: 12 2H
- Wire Harness Included: Yes
- Wire Quantity: 2
Installation Notes:
It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation. *** Maximum 6AN line and fitting size due to space limitations between unit and fuel tank.
