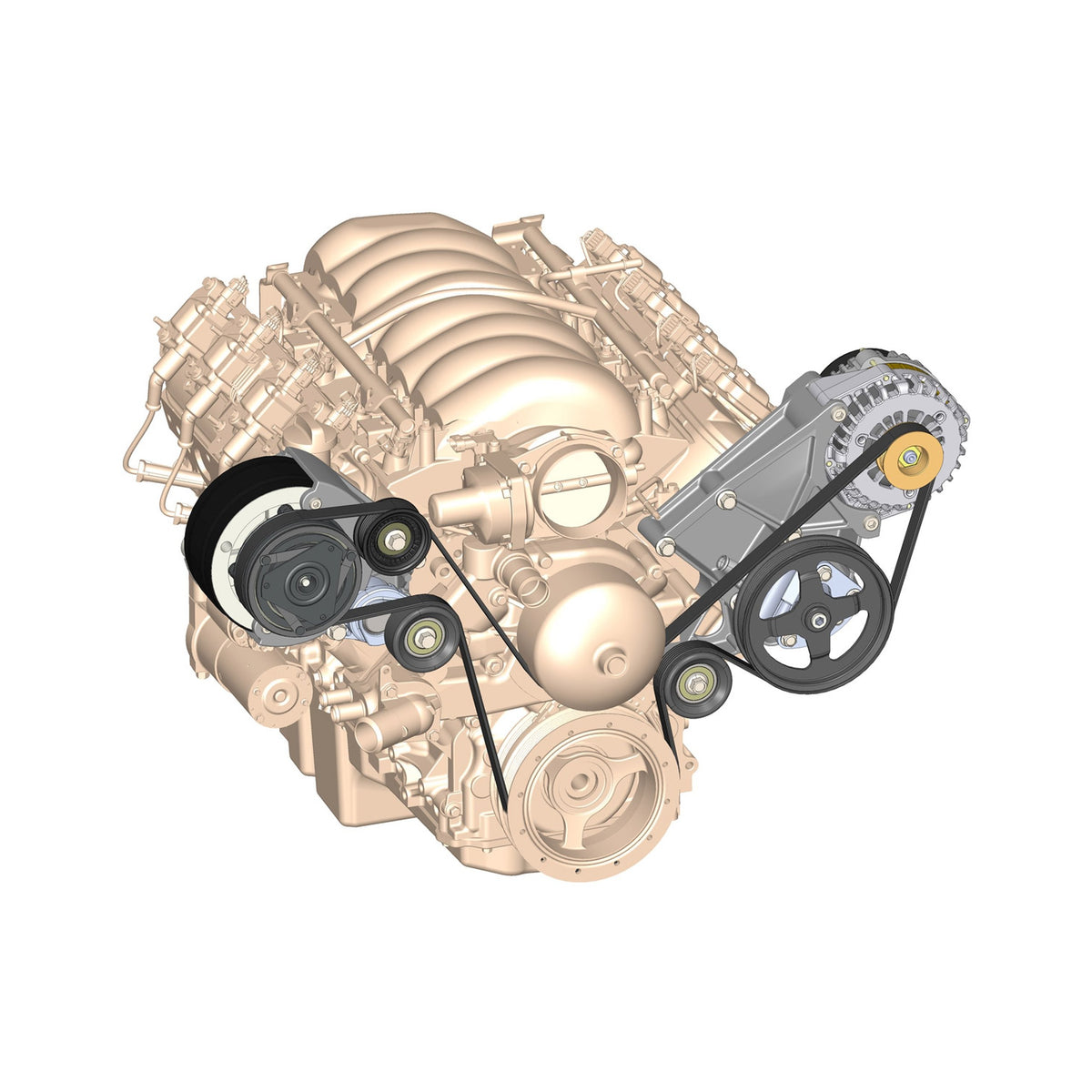

Holley LS/LT High-Mount Complete Accessory Drive Kit - 20-136

Features:

• The most cost effective LS/LT bracket solution on the market!
• Universal brackets fit virtually all common LS engines regardless of water pump and harmonic balancer offsets reducing cost and complexity compared to competitive products
• Simple, dedicated installation kits allow easy fitment to Corvette, F-Body or Truck drive offsets
• OEM spec flanged head hardware included to match your factory LS engine hardware
• OEM quality natural finish die castings for clean looks and durability. Can be polished, coated, painted or plated.
• Accessories, tensioner, and pulleys are manufactured by OEM suppliers many of which are on production vehicles today.
• Ideal for crate engines, take out motors and engine builders
• INCLUDES THE FOLLOWING ITEMS
• 70R154 - BELT, 6V SERPENTINE
• 97-153 - IDLER PULLEY, GROOVED, 59mm DIAMETER
• 20-131 - LS ACC DRV BRACKET KIT
• 97-152 - PULLEY, P/S PUMP, LS
• 97-151 - TENSIONER ASSEMBLY, LS
• 97-150 - IDLER PULLEY, SMOOTH, 2.75" DIAMETER
• 199-200 - HARNESS PIGTAIL, 8mm PIN, R4 COMPRESSOR
• 197-400 - HARNESS PIGTAIL, ALTERNATOR, AD STYLE
• 199-100 - AC R4 COMPRESSOR, 8mm PIN, R-134a
• 198-100 - P/S PUMP, CORVETTE ALUMINUM
• 197-301 - ALTERNATOR, 130 AMP, LARGE CASE

Product Specifications:

• Product Details: Includes R4 A/C Compressor, Alternator, Power Steering Pump, Belt & Pulleys
• A/C Compressor Included: Yes
• A/C Compressor Type: R4
• Accessory Drive Style: High-Mount
• Alternator Amperage: 130
• Alternator Included: Yes
• Application: GM Gen V LT, L83, L84, L86, and L87 , GM LS
• Belt Included: Yes
• Choose Your Part: Accessory Drive Kits
• Damper Included: No
• Damper Style: Factory Standard Middle or Long
• Engine: GM Gen III/IV (LS), GM Gen V L83/L84/L86/L87
• Finish: Cast
• Material: Cast Aluminum
• Output: 130 Amps
• Part Type: Accessory Drive Belt Kit
• Power Steering Hardline Included: No
• Power Steering Pulley Included: Yes
• Power Steering Pump Included: Yes
• Power Steering Reservoir Included: No
• Product Type: Accessory Drive Kits
• Pulley Style: Serpentine
• Tensioner Included: Yes
• Thermostat Included: No
• Water Neck Included: No
• Water Pump Included: No
• Water Pump Pulley Included: No

Installation Notes:

NOTE: This bracket REQUIRES an installation kit for assembly (Part 21-1, 21-2, OR 21-3, see instruction sheet below for the correct installation kit for your application). ***For installation onto an LT Series engine, additional parts are required: *21-5 LT Installation Kit for GM Gen V LT Accessory Drive *22-100 LS Water Pump with forward facing outlet. *717-15 Throttle Body Angle Adapter - for GM LS and LT Intakes ***NOTE for LT Applications: If installing on LT application refer to 21-5 LT installation kit instructions before proceeding. ***For all LS Engine Swaps-Please refer to your specific body style engine mount kits for additional modification and fitment requirements.
