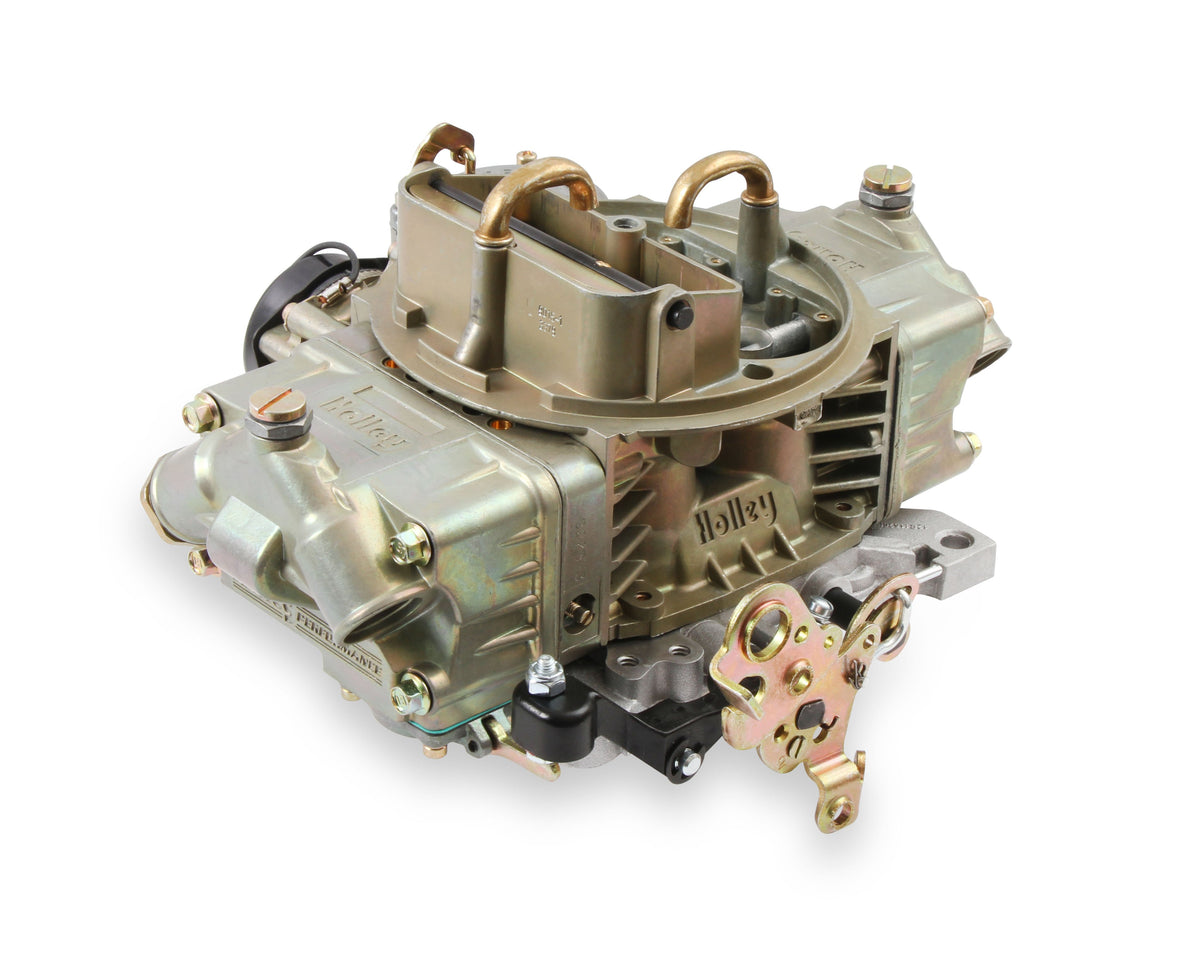

Holley Marine Carburetor - 0-9015-2
$699.95
Skip to product information
All Holley Marine Carburetors are designed to meet Coast Guard specifications. A marine carburetors fuel metering system is calibrated to compensate for unique engine loads found on boats. The J-style vent tubes direct fuel/fumes back into the carburetor for safe operation while on rough waters.
The Holley 0-9015-2 Marine carburetor is designed with a universal calibration good for small cubic inch marine engines where a vacuum secondary 4150 model 4BBL with electric choke is required
Holley Marine Carburetor - 0-9015-2
$699.95
Features:
- Gold Dichromate finish for corrosion resistance and classic Holley looks
- Universal Marine Calibration
- Vacuum secondaries for use on wide variety of boats. Compensate for all weights to allow smooth opening of secondaries.
- Factory preset electric choke for easy startups
- 30cc Accelerator pump for smooth starts
- Dual feed fuel inlets for constant high volume fuel delivery
- J-Style Vent Tubes
- Meets Coast Guard Specifications
- Power valve blow-out protection
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Product Specifications:
- Product Details: 750 CFM - 4150 - Vacuum Secondaries - Gold Dichromate - Gasoline
- Adjustable Air Bleeds: No
- Adjustable Emulsion Bleeds: No
- Adjustable Idle Feed Restrictors: No
- Air Cleaner Flange Diameter: 5-1/8
- Barrel Quantity: 4
- Barrels: 4
- Barrels Quantity: 4
- Body Color: Gold Dichromate
- Body Finish: Plated
- Body Material: Aluminum
- Booster: Downleg
- Booster Design: Downleg
- Carburetor Material: Aluminium
- Carburetor Use: Marine
- CFM: 750
- CFM Rating: 750
- Choke: Electric
- Choke Type: Electric
- Circuit Count: 2
- Color: Gold Dichromate
- Condition: New
- Cubic Feet Per Minute Rating: 750
- Finish: Gold Dichromate
- Flange Shape: Square
- Flange Type: Square/4150
- Float Level: Externally Adjustable
- Fuel: Gasoline
- Fuel Inlet: Dual
- Fuel Inlet Center to Center: 9.5
- Fuel Inlet Count: Dual
- Fuel Inlet Type: 5/8-18 Inverted Flare
- Fuel Type: Gasoline
- Gasket Or Seal Included: Yes
- Grade Type: Marine
- Linkage Attached: Yes
- Marine Approved: Yes
- Marine Engine Size: Universal
- Marine Use: Yes
- Material: Aluminum
- Meter Block Material: Cast Aluminum
- Metering Block Color: Gold Dichromate
- Model: 4150
- Mounting Hardware Included: No
- Mounting Hole Quantity: 4
- Part Type: Carburetor
- Primary Float Type: Center Hung Nitrophyl
- Primary Jet Diameter: 76
- Primary Main Jet Size: 76
- Primary Throttle Bore Diameter: 1.688
- Primary Venturii Diameter: 1.437
- Product Type: Marine Carburetor
- Secondaries: Vacuum
- Secondary Barrel Type: Vacuum
- Secondary Float Type: Center Hung Nitrophyl
- Secondary Jet Extensions: No
- Secondary Main Jet Size: 89
- Secondary Throttle Bore Diameter: 1.688
- Series: Marine
- Spacer Included: No
- Supercharged Application: No
- Throttle Bore Diameter: 1.688 inch
- Vacuum Ports: 1 full, and 1 PCV port
Installation Notes:
Notice - Due to the natural color variations of the dichromate plating process, the plating color may vary from casting to casting (within a carburetor) and from carburetor to carburetor. This is considered normal and is not a cosmetic defect. If you desire a carburetor with no color variation, please shop our black and shiny finish carburetors.
