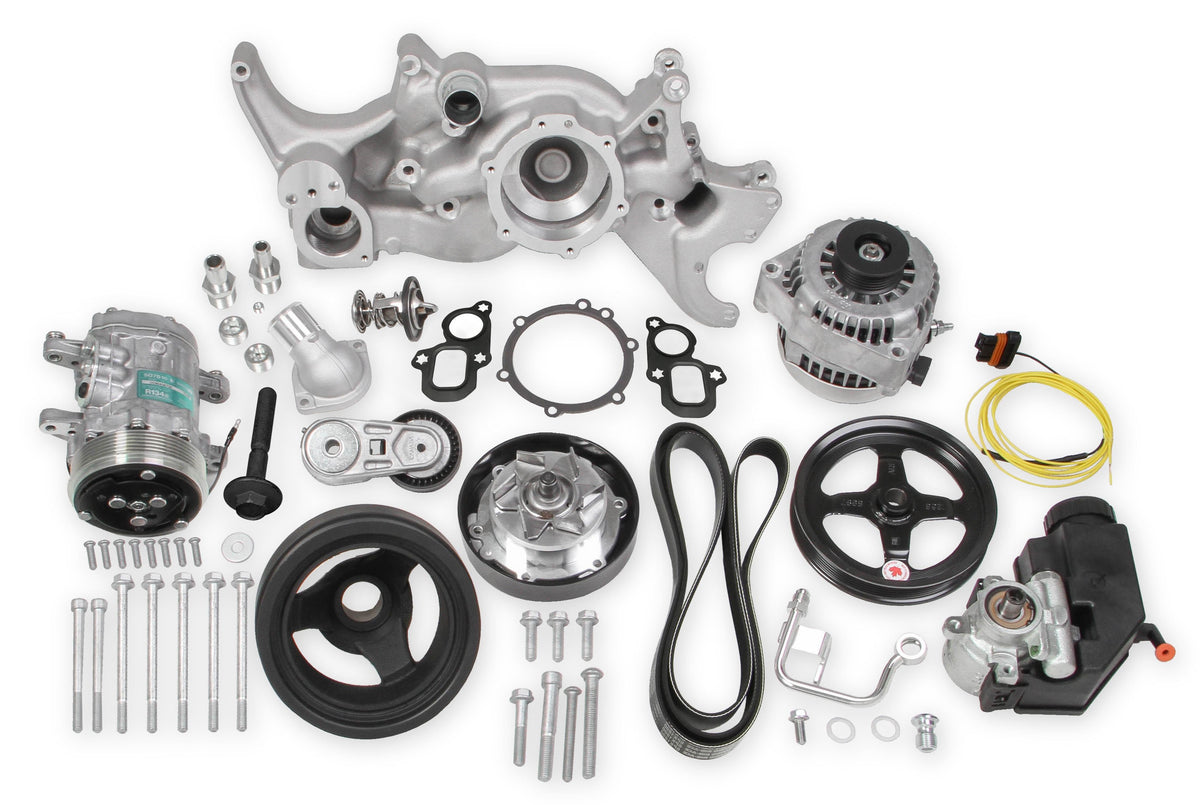

Holley Mid-Mount Complete Accessory Drive System - Gen V LT Engines - Standard Damper - Natural - 20-205
$2,399.95
Skip to product information
Holley's Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives. At the heart of the system is a "bracketless" design, where the accessories bolt directly to the water pump for a clean, integrated form. The design offers superb engine visibility to show off your horsepower, not your accessories. Among the many swap-friendly features are bottom heater outlets for clearance in tight applications. The Holley-designed alternator is just as innovative. This premium alternator utilizes 6-phase technology as found on the C7 Corvette. The water pump also shares its design efficiencies with the C7 Corvette. The compact and reliable SD7 A/C compressor and Type II P/S pump with a baffled reservoir.
When we say "complete," we mean complete. The Mid-Mount system comes with everything you need. All accessories are included; the water pump, A/C compressor, Alternator, P/S pump with reservoir, and the crank damper. All pulleys and the belt are supplied along with heater hose adapters, a power steering hardline, and the alternator pigtail harness. Ultra easy assembly with color graphic instructions to walk you through the installation.
Holley Mid-Mount Complete Accessory Drive System - Gen V LT Engines - Standard Damper - Natural - 20-205
$2,399.95
Features:
- Bracketless accessory mounting with ultra-easy assembly
- Bottom outlet heater hose options for swap application clearance
- LT1 style premium alternator
- LT1 style water pump design
- Compact SD7 A/C compressor
- Type II power steering pump with baffled reservoir
- P/S, A/C adapter hardline to AN -6 adapter included
- Shortened top outlet nipple for more radiator hose turns and routing room
- OE pulley ratios for optimal accessory performance
- No adapters/spacers are required
- Works with all common aftermarket and factory throttle bodies and intakes
- Works with Hooker turbo manifolds
- All accessories are included; the water pump, A/C compressor, Alternator, P/S pump with reservoir, and the crank damper
- LT Mid-Mount drives fit ALL wet-sump LT V6 & V8 engines (except LT2 and any supercharged). Also, will fit dry sump LT engines converted to wet-sump (except LT2 and any supercharged)
Product Specifications:
- Product Details: Complete GM Gen V LT Accessory Drive System w/ Alt, P/S, A/C, Water Pump, Belts, and Crankshaft Damper
- A/C Compressor Included: Yes
- A/C Compressor Type: SD7
- Accessory Drive Style: Mid-Mount
- Alternator Amperage: 150
- Alternator Included: Yes
- Application: GM Gen V LT
- Belt Included: Yes
- Choose Your Part: Accessory Drive Kits
- Damper Included: Yes
- Damper Style: Cast Damper
- Engine: GM Gen V LT1
- Finish: Natural Cast
- Inlet Size: 35.4mm/1.4"
- Material: Cast Aluminum
- Oil System Type: Wet Sump
- Output: 150 Amps
- Part Type: Accessory Drive Belt Kit
- Power Steering Hardline Included: Yes
- Power Steering Pulley Included: Yes
- Power Steering Pump Included: Yes
- Power Steering Reservoir Included: Yes
- Product Type: Accessory Drive Kits
- Pulley Style: Serpentine
- Tensioner Included: Yes
- Thermostat Included: Yes
- Water Neck Included: Yes
- Water Pump Included: Yes
- Water Pump Pulley Included: Yes
Installation Notes:
Fits: GM Gen-V LT Engines (wet-sump), LV3/LV1 (V6 version of Gen-V LT engine), dry-sump LT engines converted to wet-sump (except LT2 and any supercharged).
