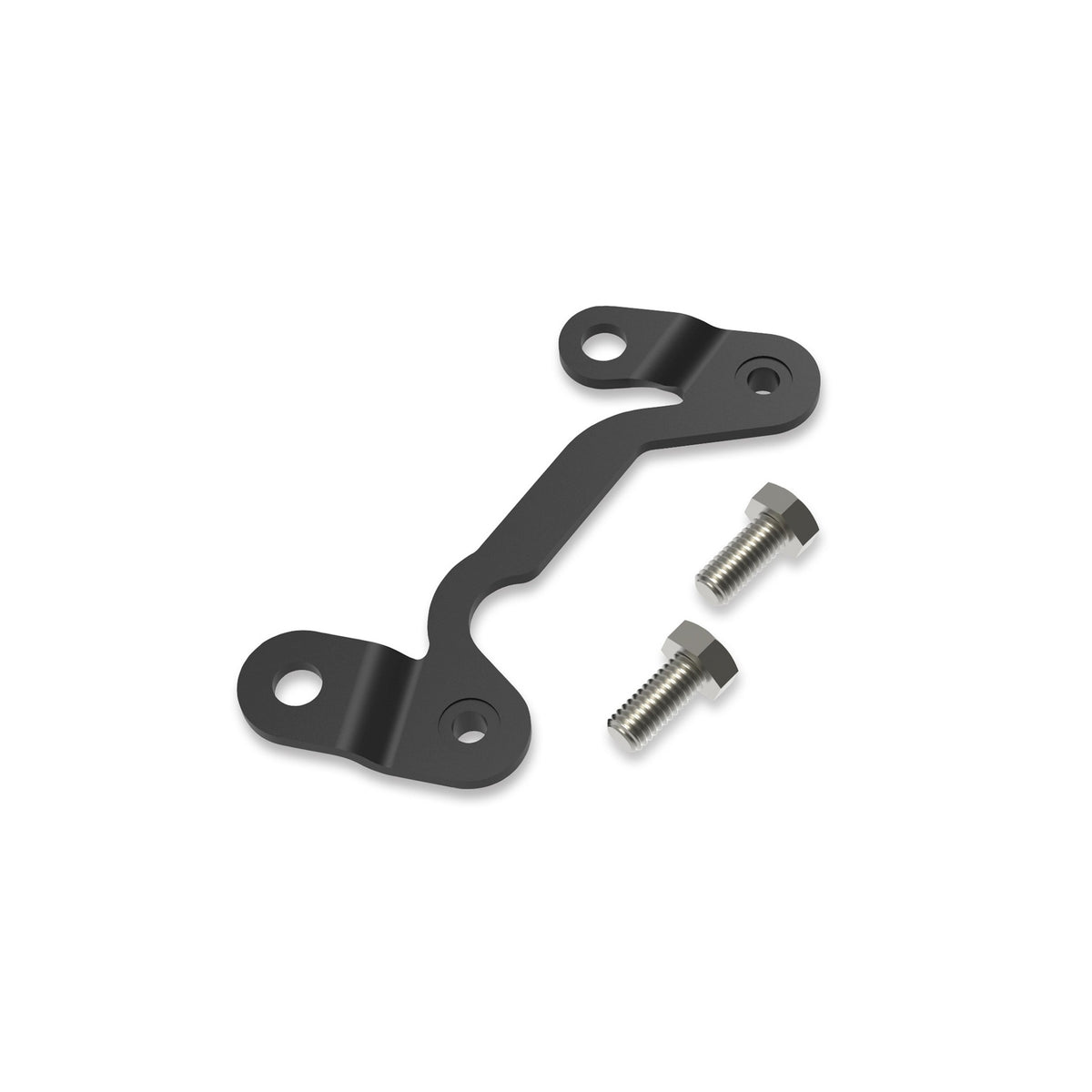

Holley Offset Coil bracket - Holley Valve Covers - GM LS - Black - 561-132
$7.43
Skip to product information
The Holley LS coil offset bracket was designed for use on vehicles equipped with Holley LS valve covers and high-mounted driver's side alternators. The bracket installs directly to the existing coil mounting posts and allows roughly 1" of extra clearance. This assembly was developed for use only with Holley cast aluminum LS valve covers with coil mounting provisions (72mm bolt spacing) and 5th gen LS coil bodies. Each bracket assembly includes one LS coil offset bracket and two mounting bolts.
Holley Offset Coil bracket - Holley Valve Covers - GM LS - Black - 561-132
$7.43
Features:
- For use on Holley LS valve covers with coil mounting provisions (bolt spacing of 72 mm) and 5th gen LS coil bodies
- Torque mounting bolts to 106 in/lb (9 ft/lb)
Product Specifications:
- Product Details: Holley Valve Covers w/ Coil Mounting Provisions - Service Part
- Application: Holley LS Valve Covers
- Coil Spacing: 72mm
- Coil Type: Gen V LS Coil / D510C
- Finish: Black
- Hardware Included: Yes
- Logo: None
- Material: Mixed
- Mounting Hardware Included: Yes
- Mounting Hole Quantity: 2
- Part Type: Ignition Coil Mounting Bracket
- Product Type: Valve Cover Accessories
- Style: Components
- Thread: M6 x 1.0
Installation Notes:
Coil Not Included
