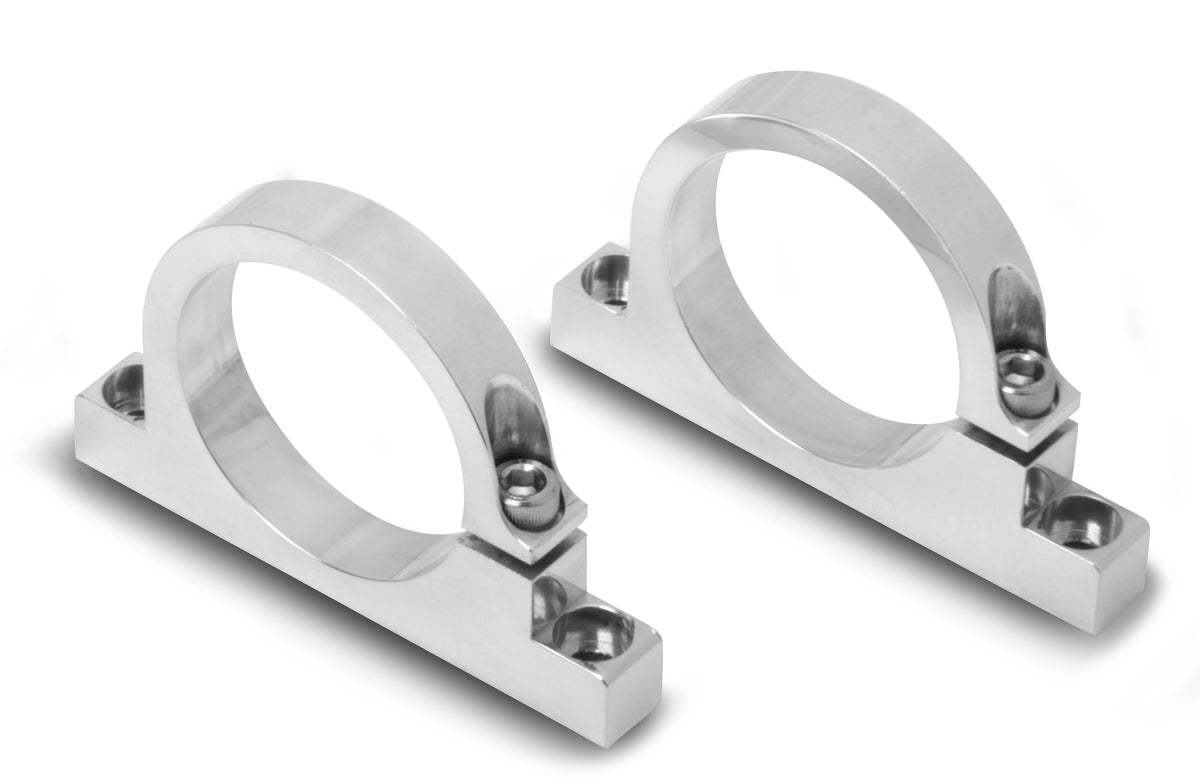

Holley Polished Mounting Bracket for HP and VR Series Billet Fuel Filters - 162-574S
$75.45
Skip to product information
Holley's fuel filter mounting brackets are designed to fit the HP and VR Series billet fuel filter line. They provide a easy way to securely mount the fuel filter while providing good looks. Available in polished aluminum or black anodized aluminum.
Holley Polished Mounting Bracket for HP and VR Series Billet Fuel Filters - 162-574S
$75.45
Features:
- Polished billet aluminum for good looks
- Works with Holley or Earl's 175, 260, and 460 GPH billet fuel filters
- Secure clamping design
- Mounting options include through bracket or into threaded bracket base
- Stainless steel hardware
Product Specifications:
- Product Details: Fits 175, 260, and 460 GPH VR Series Billet Fuel Filter and EFI Filter/Regulator. 50.3 mm I.D. Mounting Bracket Thru-Bolt Holes: c/l to c/l = 3.150" & use w/ 1/4" Mounting Bolts. The threaded mounting holes in the bracket are M6-1.0 Mounting Bolt Holes: c/l to c/l = 3.150" & use w/ 1/4" Mounting Bolts. Each Bracket is 1/2" thick by 3.750" Wide.
- Color: Polished
- Configuration: One Piece
- Filter Included: No
- Filter Type: Mounting Bracket
- Gasket Or Seal Included: No
- Grade Type: Performance
- Material: Aluminum
- Mount Hole Diameter: 1/4 Inch
- Mounting Bolt Pattern: 3.150"
- Mounting Hole Quantity: 2
- Part Type: Fuel Filter Bracket
- Product Type: Fuel Filter
- Thickness: 1/2"
- Width: 3.750"
