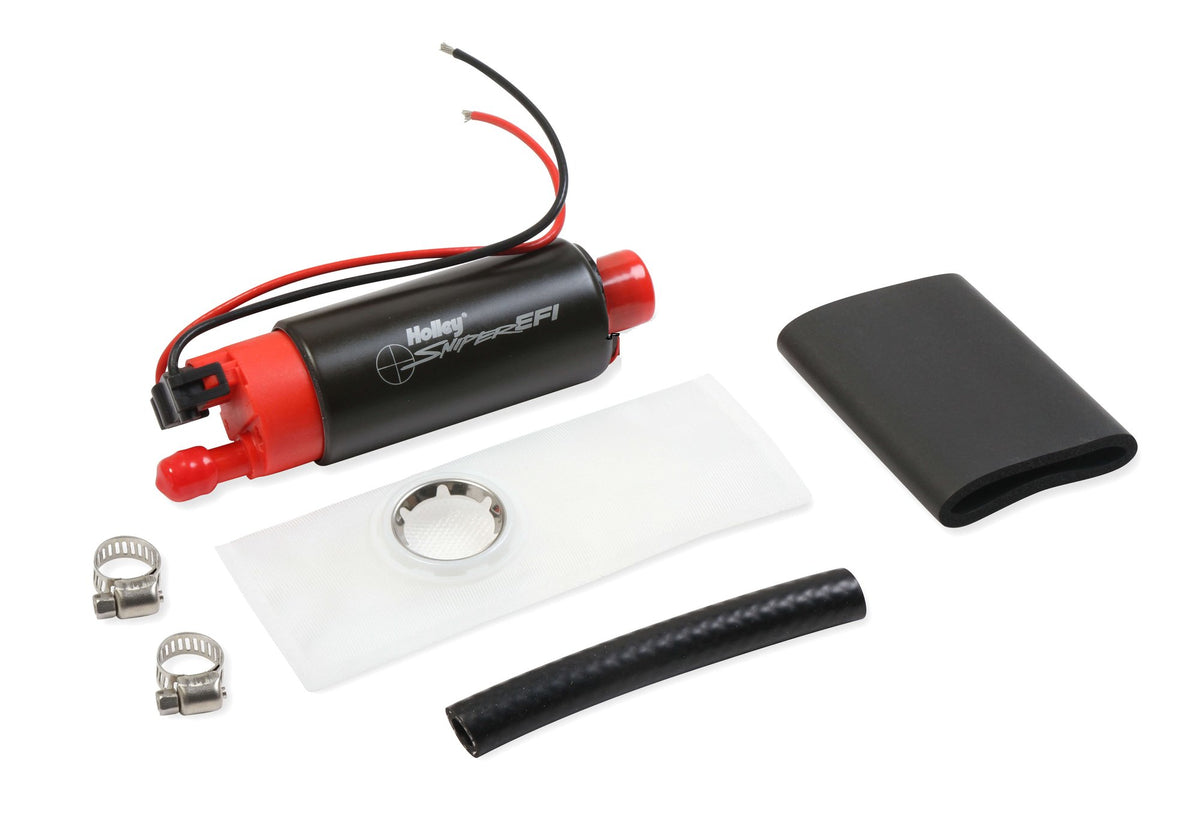

Holley Sniper EFI E85 In-Tank Electric Fuel Pump - 340 LPH - 19-340
$172.95
Skip to product information
The new Sniper 340 LPH E85 fuel pump is a high output, in tank electric fuel pump that fits the most popular EFI applications. The pump can be regulated to support carbureted systems as well. All four models of the pump are compatible with gasoline or E85 and are designed for applications requiring more fuel flow while utilizing the factory O.E. lines and mounting brackets. The 340 LPH fuel pump can also be used as a universal replacement or upgrade for aftermarket applications that require more fuel flow to support additional horsepower while using power adders such as Nitrous, Turbo and Superchargers. Comes complete with installation hardware kit. (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet)
Applications:
Chrysler/Dodge/Plymouth FWD 1984-1990
Ford Mustang 1985-1997 (except Cobra)
***Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw). Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...
Holley Sniper EFI E85 In-Tank Electric Fuel Pump - 340 LPH - 19-340
$172.95
Features:
- 340 LPH E85 Compatible
- Designed for in-tank use only
- Compact enough to fit in existing hanger assemblies without modification
- Complete kit with all drop parts, accessories and installation instructions
- 22mm inlet port OD, centered
- Inlet filter meets or exceeds original equipment specifications and provides improved filtration/durability
- Can be used with carbureted or EFI applications
- Perfect upgrade for aftermarket pumps like our Retrofit EFI Modules when more fuel is needed with turbos or nitrous
Product Specifications:
- Product Details: Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)
- Application: Automotive
- Average Flow Rating: 90
- Color: Black
- Finish: Coated
- Free Flow GPH: 90
- Free Flow LPH: 340
- Fuel Delivery Type: Fuel Injection | Carburetor
- Fuel Sending Unit Included: No
- Fuel System: Carbureted, EFI
- Fuel Type: E85, Gasoline
- Gasket Or Seal Included: No
- Grade Type: Performance
- Inlet Fitting Thread Size: 22 MM
- Inlet Outside Diameter: 22 MM
- Inlet Type: Port
- Internal Or External: Internal
- Material: Steel
- Maximum Amperage Draw: 16.9
- Maximum Pressure: 125
- Mounting Bracket Included: No
- Mounting Hardware Included: Yes
- Negative Ground: Yes
- Outlet Fitting Thread Size: 9 MM
- Outlet Quantity: 1
- Outlet Type: Barb
- Part Type: Electric Fuel Pump
- Product Type: Fuel Pump
- Pump Body Color: Black
- Regulator Included: No
- Seal And Lock Ring Included: No
- Strainer Included: Yes
- Terminal Quantity: 2
- Universal Or Specific Fit: Universal
- Wiring Harness Included: Yes
