Holley Sniper EFI Fuel Tank System 255 LPH - 19-112
$949.95
Skip to product information

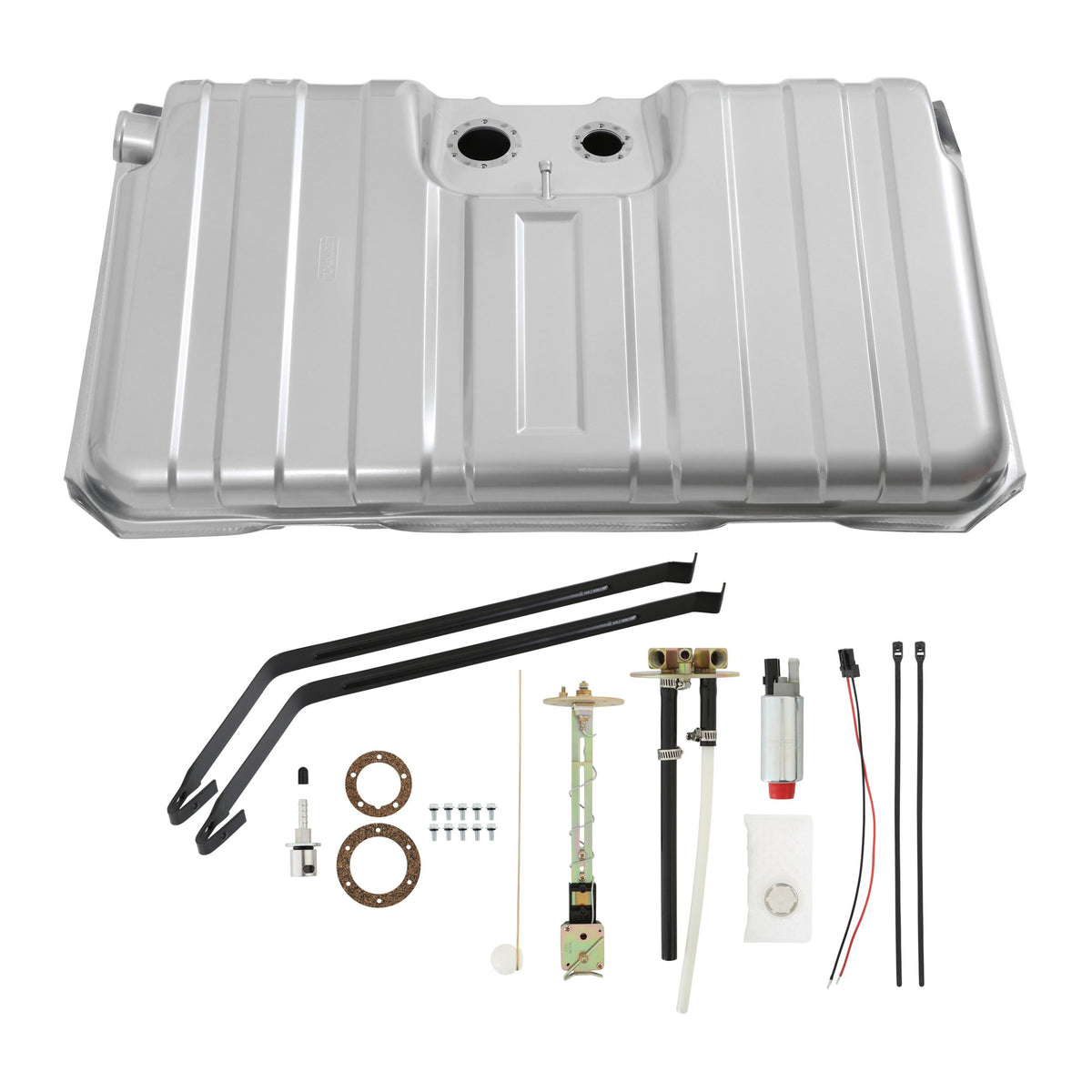

Holley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary. The kit includes the tank, a 255 lph fuel pump, internal baffling, and a fuel level sender. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project!
***Steel filler neck is not included. You must use your existing stock filler neck or purchase one through restoration suppliers.
Supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
Size is: 34-1/4" x 18-7/8" x 8-3/4"
For a better seal use Permatex Indian Head Gasket Shellac Compound or Aviation Form-A-Gasket sealant on the gasket and screws.
Holley Sniper EFI Fuel Tank System 255 LPH - 19-112
$949.95
Features:
- Tanks are coated galvanized steel then powder coated silver for total corrosion protection
- 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness
- Sender has ¼” NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
- Fuel level sender included with the correct Ohm range for your factory gauges
- Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
- EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation
- Fits and looks like an OE tank when installed
- Complete bolt in solution for your EFI conversion
- Includes new tank straps
Product Specifications:
- Product Details: 1962-1965 Chevy II Nova, Coated Steel, EFI, Gas
- Application: 1962-1965 Chevy II/Nova
- Attached Sump: Yes
- Baffled Sump: Yes
- Color: Silver
- Drain Plug: No
- Filler Neck Attached: No
- Finish: Powdercoated
- Free Flow LPH: 255
- Fuel Sending Unit Ohms: 0-30 Ohms
- Fuel System Compatibility: Electronic Fuel Injection
- Fuel System Type: Gasoline
- Fuel Tank Coating: Powder Coated
- Gallon Capacity: 16
- Grade Type: Performance
- Lock Ring Included: Yes
- Material: Steel
- Maximum Flow Rating: 255 LPH
- Mounting Straps Included: Yes
- New Straps Included: Yes
- O-Ring Included: Yes
- Part Type: Fuel Tank and Pump Assembly Combination
- Product Type: Fuel Tank
- Resistance Ohms Empty: 0 82
- Resistance Ohms Full: 30 82
- Sending Unit Included: Yes
- Tank Capacity: 16 GA
- Tank Color: Gray
- Tank Material: Steel
