$415.95

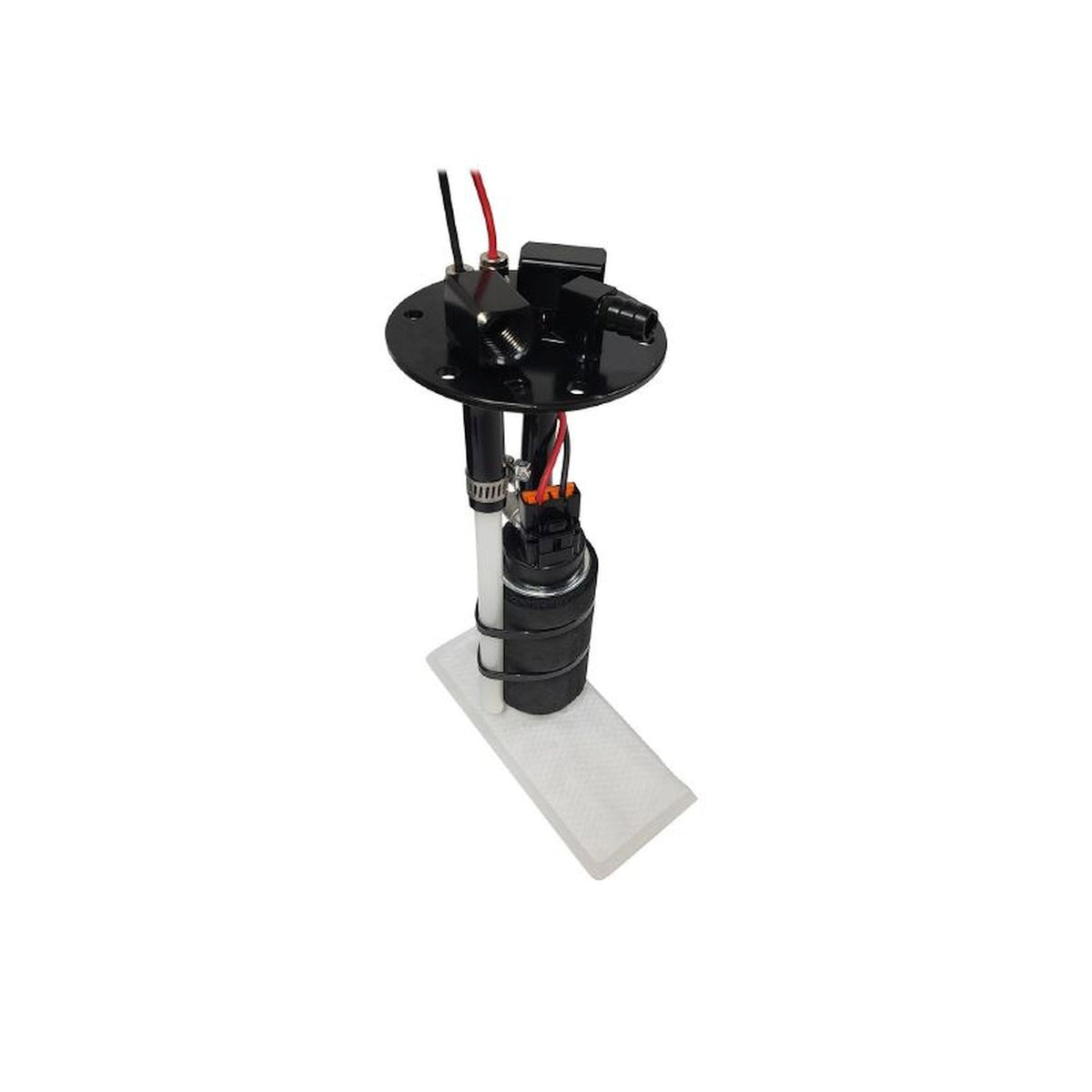

255 LPH Electric Fuel Pump Assembly for Sniper EFI Fuel Tanks. Oven brazed fittings can withstand 100 psi. Genuine Walbro Fuel Pump included. 1/4" NPT Supply and Return line.

Features:

  • 1/4" NPT Supply and Return Line
  • In-Tank Wire Harness
  • Made in USA
  • Heavy 10 gauge no-warp mounting plate
  • Barbed Vent Fittings
  • Up to 100 PSI

Product Specifications:

  • Product Details: Replacement 255 LPH FUEL PUMP AND HANGER ASSEMBLY
  • Color: Black
  • Finish: Black
  • Fuel Sending Unit Included: No
  • Fuel Tank Pressure Sensor Included: No
  • Fuel Type: Gasoline
  • Gasket Or Seal Included: Yes
  • Material: Steel
  • Part Type: Fuel Pump Module Assembly
  • Product Type: Fuel Pump
  • Regulator Included: No
  • Strainer Included: Yes
  • Universal Or Specific Fit: Universal

Installation Notes:

For a better seal use Permatex Indian Head Gasket Shellac Compound or Aviation Form-A-Gasket sealant on the gasket and screws. Connect your in-tank wire harness to the fuel pump, making sure that the connections are secure. Route the wires through the pass through fitting being sure to leave a little slack to prevent strain or chaffing, Use a 9mm wrench to tighten the upper jam nut on the wire pass through in 1/4 turn increments until the wire no longer moves up and down. BE CAREFULL NOT TO OVERTIGHTEN DOING SO COULD BREAK THE FITTING OR CAUSE A LEAK.
