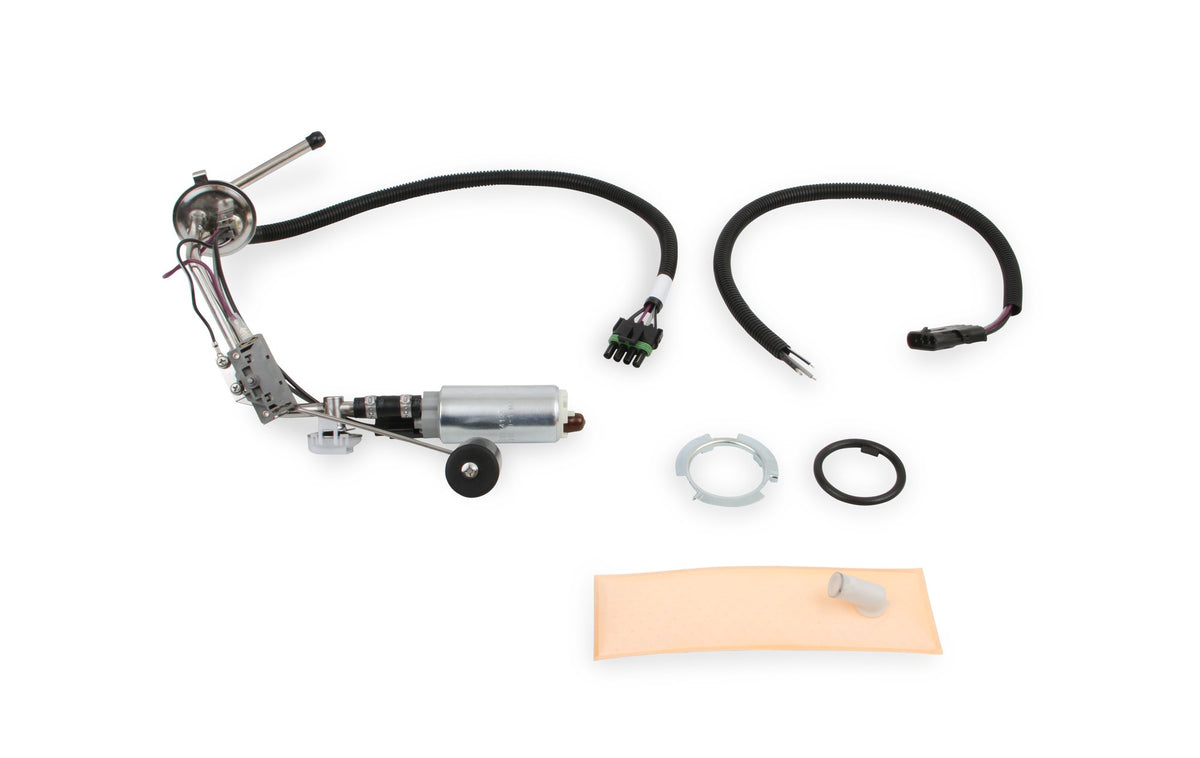

Holley Sniper Holley EFI Fuel Tank Module - 255 LPH - 1961-1964 GM B-Body Vehicles - 12-317
$425.95
Skip to product information
This in-tank fuel pump module is a high-pressure unit that flows 255 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 550 horsepower. Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator- no separate return line is required because this module returns excess fuel right inside the tank! Featuring a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included. This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates
This 1961-64 Chevrolet Impala/Bel Air/Biscayne Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.
Holley Sniper Holley EFI Fuel Tank Module - 255 LPH - 1961-1964 GM B-Body Vehicles - 12-317
$425.95
Features:
- Supports up to 550 horsepower (HP)
- Flows 255 liters per hour (LPH)
- Internally regulated to 58 PSI
- Included HydraMat patent-pending fuel reservoir system that reduces fuel starvation issues
- 0-30 ohm sender unit for 1964 and prior GM vehicles
- Some 1964 vehicles may need SN34 Fuel Link Interface to correct fuel level reading
Product Specifications:
- Product Details: In-tank fuel pump module for 1961-1964 Chevrolet Impala, Bel Air & Biscayne. Supports Up To 550 Horsepower.
- Application: 1961-1964 Impala Belair
- Average Flow Rating: 255 LPH
- Connector Gender: Male
- Engine: Chevrolet Small Block Gen I
- Free Flow LPH: 255
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Sending Unit Ohms: 0-30 Ohms
- Fuel Tank Pressure Sensor Included: No
- Fuel Type: Gasoline
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- In Tank or External: In Tank
- Inlet Diameter (in): 5/16 IN, 5/16"
- Inlet Quantity: One
- Lock Ring Included: Yes
- Make: Chevrolet
- Material: Steel and Plastic
- Maximum Pressure: 58 PS
- Model: Impala/Bel Air/Biscayne
- Negative Ground: Yes
- Outlet Outside Diameter: 3/8 IN
- Outlet Quantity: One
- Part Type: Fuel Pump Module Assembly
- Product Type: Fuel Pump Module
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 0 82
- Resistance Ohms Full: 30 82
- Strainer Included: Yes
- Universal Or Specific Fit: Specific
- Vent Size: N/A
- Wire Harness Included: Yes
