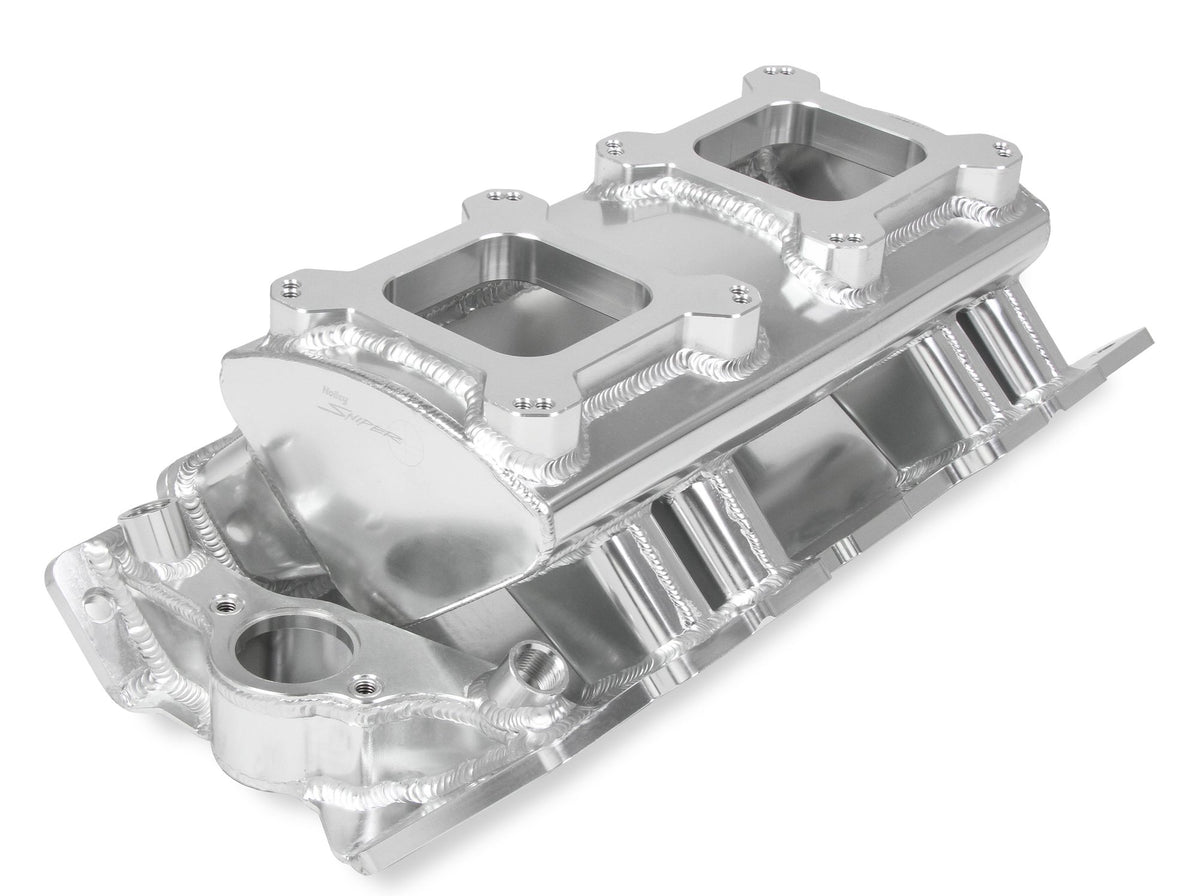

Holley Sniper Sheet Metal Fabricated Intake Manifold Big Block Chevy - 835061
$899.95
Skip to product information
Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. They are ready to bolt on out of the box and offered in a single or dual 4150 or 4500 carb flange.
Holley Sniper Fabricated Manifolds continue to push the aftermarket by introducing intakes for Big Block Chevy Engines. These Intakes are good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold.
Holley Sniper Sheet Metal Fabricated Intake Manifold Big Block Chevy - 835061
$899.95
Features:
- Fits standard deck height blocks
- 100% TIG welded (laser engraved Sniper logo)
- Choice of bright silver or black anodized finish
- 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable for high horsepower and boosted conditions
- Expanded Designs to accommodate (1 or 2 x 4150) & (1 or 2 x 4500) carbureted applications.
- Equal runner lengths designed to increase velocity and more evenly distribute airflow to all 8 cylinders
Product Specifications:
- Product Details: Fabricated Intake Manifold BBC Single Plane 2 x 4150 Silver with Sniper Logo
- Basic Operating RPM Range: 1800-7000 RPM
- Carb Flange Center-to-Center: 8.50"
- Carburetor Flange: Square/4150
- Carburetor Quantity: 2
- Carburetor Studs Included: No
- CNC Ported: No
- Color: Polished
- Construction: Fabricated
- Cylinder Head Port Shape: Rectangle
- Deck Height: 9.8 IN
- EGR Port: No
- Engine: Chevy Big Block V8
- Flange Size: 4150
- Flange Style: 4150 Square Bore
- Front Maximum Height: 6.5 IN
- Fuel Injectors Included: No
- Fuel Rail(s) Included: No
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Intake Port Gasket(s) Included: Yes
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Plenum Finish: Polished
- Port Shape: Rectangular
- Port Size: 1.55" x 2.21"
- Product Type: Intake Manifold
- Rear Maximum Height: 6.5 IN
- Removable Runners: No
- Removable Top/Lid: No
- Single Or Dual Plane Type: Single Plane
- Style: Carbureted
- Throttle Body Bore Diameter: 3.6 MM
- Throttle Body Gasket Included: No
- Throttle Body Included: No
- Vacuum Ports: No
