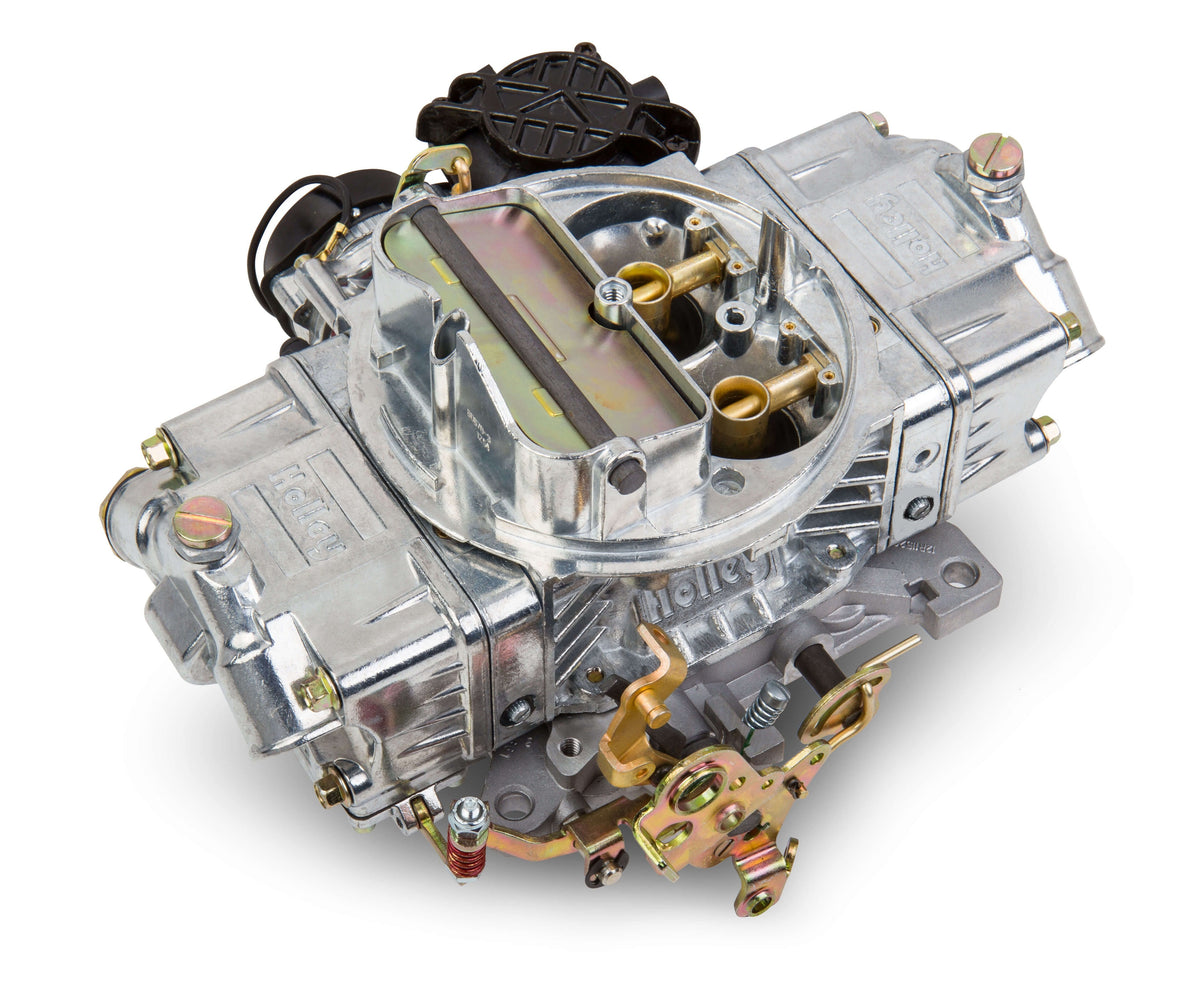

Holley Street Avenger - Aluminum Carburetor - 0-83770
$699.95
Skip to product information
Holley's Street Avenger series carburetors have been taken to the next level. Street Avenger carburetors are known to bolt on right out of the box, so what could be better than a Holley Street Avenger™ carburetor? How about one in aluminum? They save weight and look great. The tumble polished aluminum finish will keep its shine for a long time to come or it can be hand polished to a show quality shine.
The new Aluminum Avenger carburetors have the same great features as their zinc counterparts such as a quick change vacuum secondary for easy fine tuning, four vacuum ports for all necessary vacuum accessories, factory preset electric choke for easy start ups, built-in fuel filters, and an included fuel line kit so there are no unnecessary trips back to the parts store. Aluminum Avengers feature the same optimized street calibration as the zinc version so you know they will run great on your vehicle. Another new feature on the Aluminum Street Avenger is a clear fuel level sight glass for easy, no mess float adjustments.
The Avenger series are the first carburetors to have a limited lifetime warranty. With a great warranty like that and the included comprehensive instruction manual, you can count on years of worry free service.
Limited to stock. replaced by 0-80770
Holley Street Avenger - Aluminum Carburetor - 0-83770
$699.95
Features:
- Features a tumble polished finish - can also be hand polished
- Optimized street calibration that works-out-of-the-box
- Factory preset electric choke for easy startups
- Glass fuel level sight windows for easy, safe float adjustments
- Vacuum secondaries allow use on a wide variety of vehicles. Quick Change vacuum housing cap allows you to tune for performance or fuel economy (springs included)
- 4 corner idle allows you to precisely control your idle system
- Aluminum construction for a 44% weight savings
- Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.
- Fuel line kit included so there are no unnecessary trips back to the parts store
- Limited lifetime warranty - Guaranteed to be free from defects in material and workmanship for the life of the product!
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Product Specifications:
- Product Details: 770 CFM - 4150 - Vacuum Secondaries - Shiny - Gasoline
- Adjustable Air Bleeds: No
- Adjustable Emulsion Bleeds: No
- Adjustable Idle Feed Restrictors: No
- Air Cleaner Flange Diameter: 5-1/8
- Barrel Quantity: 4
- Barrels: 4
- Barrels Quantity: 4
- Body Color: Polished
- Body Finish: Polished
- Body Material: Aluminum
- Booster: Straight
- Booster Design: Straight
- Carburetor Material: Aluminum
- Carburetor Use: Street
- CFM: 770
- CFM Rating: 770
- Choke: Electric
- Choke Type: Electric
- Circuit Count: 2
- Color: Polished Aluminum
- Condition: New
- Cubic Feet Per Minute Rating: 770
- Finish: Polished
- Flange Shape: Square
- Flange Type: Square/4150
- Float Level: Externally Adjustable
- Fuel: Gasoline
- Fuel Inlet: Dual
- Fuel Inlet Center to Center: 9.5
- Fuel Inlet Count: Dual
- Fuel Inlet Type: 5/8-18 Inverted Flare
- Fuel Type: Gasoline
- Gasket Or Seal Included: Yes
- Grade Type: Street Performance
- Linkage Attached: Yes
- Marine Approved: No
- Marine Use: No
- Material: Aluminum
- Meter Block Material: Cast Aluminum
- Metering Block Color: Shiny
- Model: 4150
- Mounting Hardware Included: No
- Mounting Hole Quantity: 4
- Part Type: Carburetor
- Primary Float Type: Center Hung Nitrophyl
- Primary Jet Diameter: 70
- Primary Main Jet Size: 70
- Primary Power Valve: 6.5
- Primary Pump Nozzle Size: 31
- Primary Throttle Bore Diameter: 1.688
- Primary Venturii Diameter: 1.375
- Product Type: Carburetor
- Secondaries: Vacuum
- Secondary Barrel Type: Vacuum
- Secondary Float Type: Center Hung Nitrophyl
- Secondary Jet Extensions: No
- Secondary Main Jet Size: 75
- Secondary Throttle Bore Diameter: 1.688
- Series: Street Avenger
- Spacer Included: No
- Supercharged Application: No
- Throttle Bore Diameter: 1.688 inch
- Throttle Kickdown Provision(S): Compatible with GM, Chrysler, and Ford A/T kickdown linkage
- Vacuum Ports: 1 timed (spark) port, 2 full, and 1 PCV port
Installation Notes:
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
