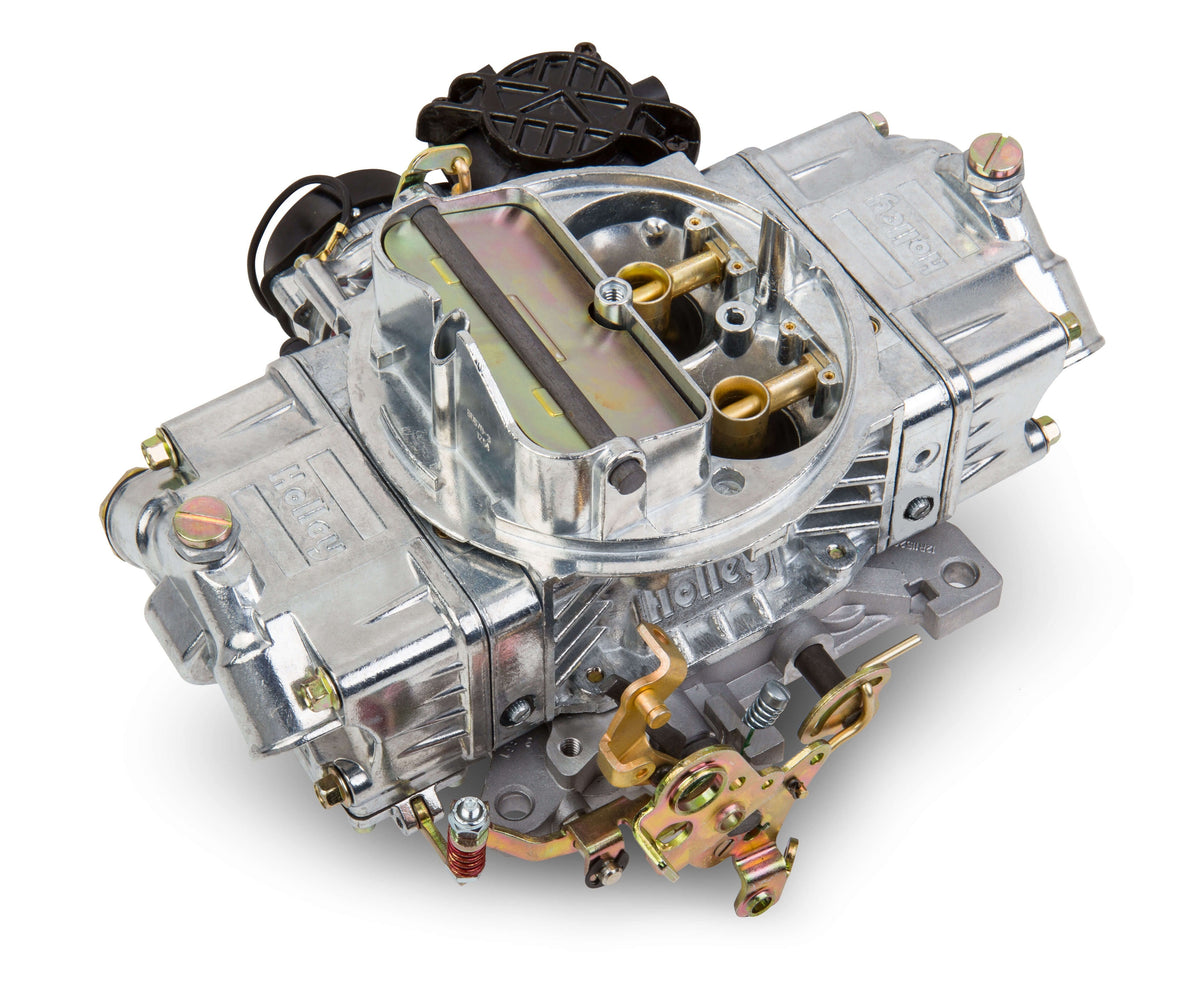

Holley Street Avenger Carburetor - 0-80770
$699.95
Skip to product information
Street Avenger carburetors are known to bolt on right out of the box and have great features such as a quick change vacuum secondary for easy fine tuning, optimized street calibrations, four vacuum ports for all necessary vacuum accessories, factory preset electric choke for easy start ups, built-in fuel filters, and an included fuel line kit so there are no unnecessary trips back to the parts store.
The Avenger series are the first carburetors to have a limited lifetime warranty. With a great warranty like that and the included comprehensive instruction manual, you can count on years of worry free service.
Holley Street Avenger Carburetor - 0-80770
$699.95
Features:
- Vibratory polished for good looks
- Optimized street calibration that works-out-of-the-box
- Factory preset electric choke for easy startups
- Vacuum secondaries allow use on a wide variety of vehicles. Quick Change vacuum housing cap allows you to tune for performance or fuel economy (springs included)
- Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.
- Fuel line kit included so there are no unnecessary trips back to the parts store
- Limited lifetime warranty - Guaranteed to be free from defects in material and workmanship for the life of the product!
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Product Specifications:
- Product Details: 770 CFM - 4150 - Vacuum Secondaries - Shiny - Gasoline
- Adjustable Air Bleeds: No
- Adjustable Emulsion Bleeds: No
- Adjustable Idle Feed Restrictors: No
- Air Cleaner Flange Diameter: 5-1/8
- Barrel Quantity: 4
- Barrels: 4
- Barrels Quantity: 4
- Body Color: Polished
- Body Finish: Polished
- Body Material: Aluminum
- Booster: Straight
- Booster Design: Straight
- Carburetor Material: Aluminum
- Carburetor Use: Street
- CFM: 770
- CFM Rating: 770
- Choke: Electric
- Choke Type: Electric
- Circuit Count: 2
- Color: Polished Aluminum
- Condition: New
- Cubic Feet Per Minute Rating: 770
- Finish: Polished
- Flange Shape: Square
- Flange Type: Square/4150
- Float Level: Externally Adjustable
- Fuel: Gasoline
- Fuel Inlet: Dual
- Fuel Inlet Center to Center: 9.5
- Fuel Inlet Count: Dual
- Fuel Inlet Type: 5/8-18 Inverted Flare
- Fuel Type: Gasoline
- Gasket Or Seal Included: Yes
- Grade Type: Street Performance
- Linkage Attached: Yes
- Marine Approved: No
- Marine Use: No
- Material: Aluminum
- Meter Block Material: Cast Aluminum
- Metering Block Color: Shiny
- Model: 4150
- Mounting Hardware Included: No
- Mounting Hole Quantity: 4
- Part Type: Carburetor
- Primary Float Type: Center Hung Nitrophyl
- Primary Jet Diameter: 70
- Primary Main Jet Size: 70
- Primary Power Valve: 6.5
- Primary Pump Nozzle Size: 31
- Primary Throttle Bore Diameter: 1.688
- Primary Venturii Diameter: 1.375
- Product Type: Carburetor
- Secondaries: Vacuum
- Secondary Barrel Type: Vacuum
- Secondary Float Type: Center Hung Nitrophyl
- Secondary Jet Extensions: No
- Secondary Main Jet Size: 75
- Secondary Throttle Bore Diameter: 1.688
- Series: Street Avenger
- Spacer Included: No
- Supercharged Application: No
- Throttle Bore Diameter: 1.688 inch
- Throttle Kickdown Provision(S): Compatible with GM, Chrysler, and Ford A/T kickdown linkage
- Vacuum Ports: 1 timed (spark) port, 2 full, and 1 PCV port
Installation Notes:
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
