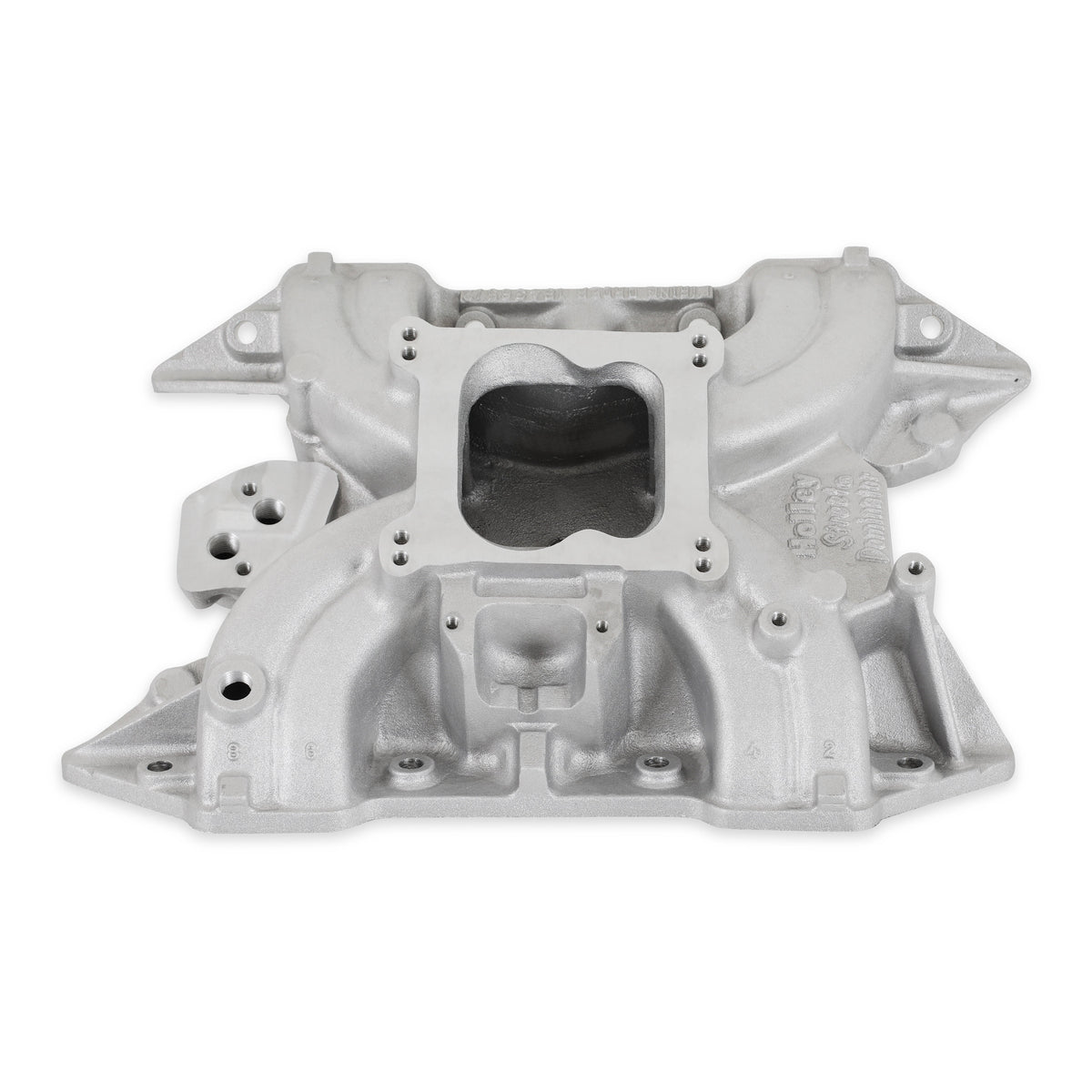

Holley Street Dominator Intake - Chrysler Big Block V8 - 300-14

Features:

• Power band: 1500-6500 RPM
• Height: Front 4.13", Rear 5.25"
• Port Size: 2.14” height 1.12" width
• Isolated Plenum
• Universal Carburetor Mounting Flange
• Single Plane Design

Product Specifications:

• Product Details: Fits 413, 426 Wedge, and 440 Cubic Inch V8 Engines
• Basic Operating RPM Range: 1500-6500 RPM
• Carburetor Flange: Square/4150
• Carburetor Quantity: 1
• Carburetor Studs Included: No
• CNC Ported: No
• Color: Natural
• Construction: Cast
• Cylinder Head Port Shape: Rectangle
• Deck Height: 10.725 IN
• EGR Port: No
• Engine: Chrysler Big Block V8
• Flange Style: 4150 Square Bore, Dual Bolt Pattern, Spreadbore
• Front Maximum Height: 4.13 IN
• Fuel Injectors Included: No
• Fuel Rail(s) Included: No
• Fuel System Type: Carb
• Gasket Or Seal Included: No
• Grade Type: Performance
• Intake Port Gasket(s) Included: No
• Manifold Type: Low Rise
• Material: Aluminum
• Nitrous Bung(s) Included: No
• Part Type: Engine Intake Manifold
• Plenum Finish: Natural
• Product Type: Intake Manifold
• Rear Maximum Height: 5.25 IN
• Removable Runners: No
• Removable Top/Lid: No
• Single Or Dual Plane Type: Single Plane
• Throttle Body Bore Diameter: 3.6
• Throttle Body Gasket Included: No
• Throttle Body Included: No
• Vacuum Ports: No

Installation Notes:

Spreadbore carburetors might require the use of a carburetor spacer. Check for Throttle plate clearance when installing this intake manifold.
