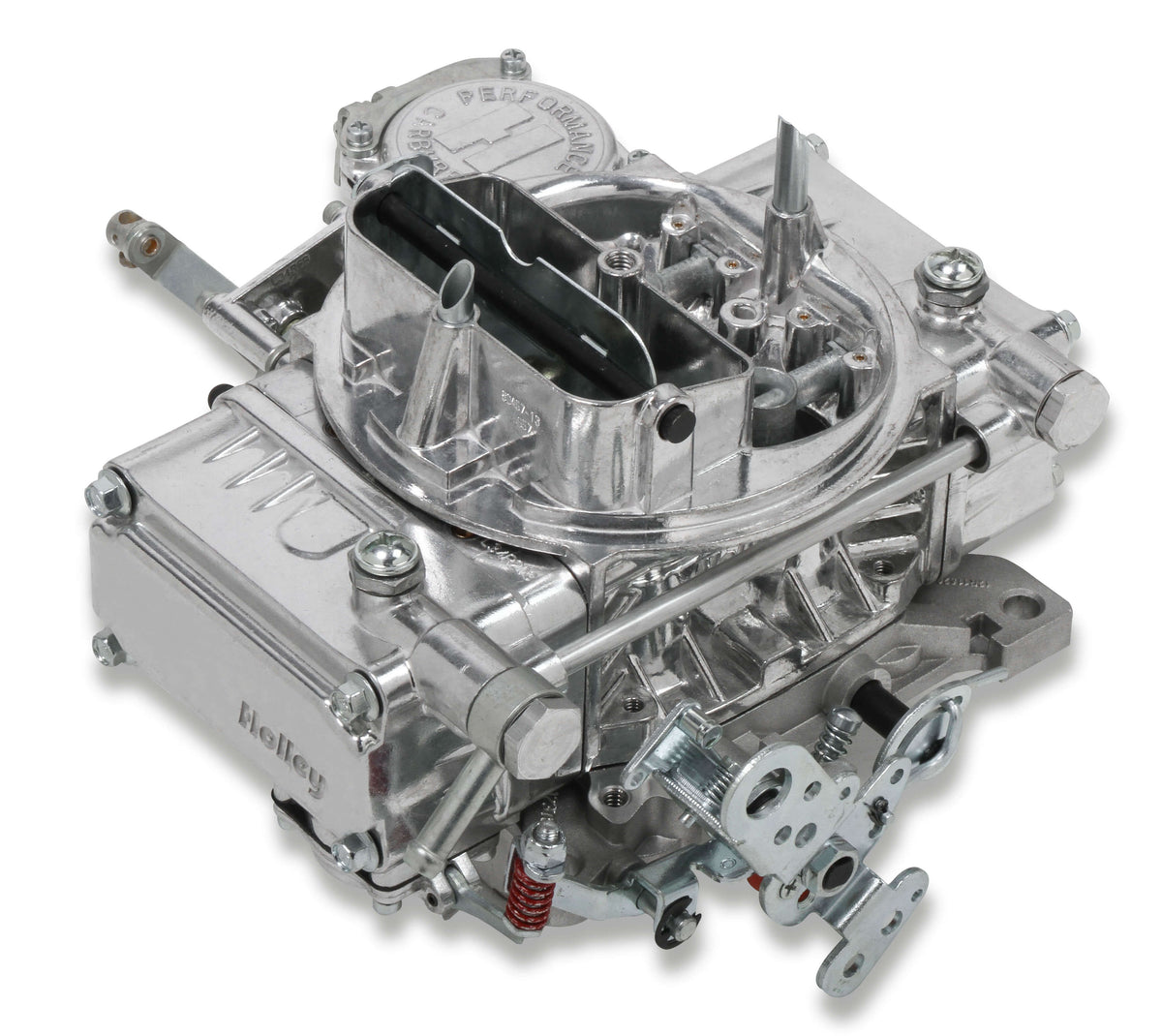

Holley Street Warrior Carburetor - 0-1850S
$491.95
Skip to product information
Holley has been the world leader in carburetors for over 100 years. We are proud to announce the newest member of our carburetor family – the Street Warrior. The goal in designing the Street Warrior was to take all of those years of experience and build the ultimate performance street carburetor for your daily driver that would not break the bank. Don't let the low price fool you, the Street Warrior uses the latest technology and quality products that Holley is known for. Constructed from aluminum and calibrated to run great right out of the box, the Street Warrior is a great replacement carburetor for your daily driver or your weekend cruiser. Perfect replacement carburetor when your original style is no longer available.
Replaces Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern.
Holley Street Warrior Carburetor - 0-1850S
$491.95
Features:
- Vibratory polished for good looks and long lasting shine
- Performance upgrade for stock to mildly modified vehicles
- Universal calibration for easy bolt-on performance
- Manual choke (cable actuated - hand controlled) for precise cold start control
- Vacuum secondaries for use on wide variety of vehicles, compensates for all vehicle weights, gearing & transmissions to allow smooth opening of secondaries
- Single feed fuel inlet for easy installation
- Integrated 700R4/200R4 transmission kick down cable mounting
- Power valve blow-out protection
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run
- Compatible with GM, Chrysler, and Ford A/T kickdown linkage, additional parts may be required
Product Specifications:
- Product Details: 600 CFM - 4160 - Vacuum Secondaries - Manual Choke - Polished - Gasoline
- Adjustable Air Bleeds: No
- Adjustable Emulsion Bleeds: No
- Adjustable Idle Feed Restrictors: No
- Air Cleaner Flange Diameter: 5-1/8
- Barrel Quantity: 4
- Barrels: 4
- Barrels Quantity: 4
- Billet Color: None
- Body Color: Polished
- Body Finish: Polished
- Body Material: Aluminum
- Booster: Straight
- Booster Design: Straight
- Carburetor Material: Aluminum
- Carburetor Use: Street
- CFM: 600
- CFM Rating: 600
- Choke: Manual
- Choke Type: Manual
- Circuit Count: 2
- Color: Polished Aluminum
- Condition: New
- Cubic Feet Per Minute Rating: 600
- Finish: Polished
- Flange Shape: Square
- Flange Type: Square/4150
- Float Level: Externally Adjustable
- Fuel: Gasoline
- Fuel Inlet: Single
- Fuel Inlet Count: Single
- Fuel Inlet Type: 5/16" Hose Barb
- Fuel Type: Gasoline
- Gasket Or Seal Included: Yes
- Grade Type: Street
- Linkage Attached: Yes
- Marine Approved: No
- Marine Use: No
- Material: Aluminum
- Meter Block Material: Cast Aluminum
- Metering Block Color: Polished
- Model: 4160
- Mounting Hardware Included: No
- Mounting Hole Quantity: 4
- Part Type: Carburetor
- Primary Float Type: Side Hung Nitrophyl
- Primary Jet Diameter: 66
- Primary Main Jet Size: 66
- Primary Power Valve: 6.5
- Primary Pump Nozzle Size: 31
- Primary Throttle Bore Diameter: 1.563
- Primary Venturii Diameter: 1.25
- Product Type: Carburetor
- Secondaries: Vacuum
- Secondary Barrel Type: Vacuum
- Secondary Float Type: Side Hung Nitrophyl
- Secondary Jet Extensions: No
- Secondary Throttle Bore Diameter: 1.563
- Series: Street Warrior
- Spacer Included: No
- Supercharged Application: No
- Throttle Bore Diameter: 1.563 inch
- Throttle Kickdown Provision(S): Compatible with GM, Chrysler, and Ford A/T kickdown linkage
- Vacuum Ports: 1 timed (spark) port, 2 full, and 1 PCV port
Installation Notes:
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
