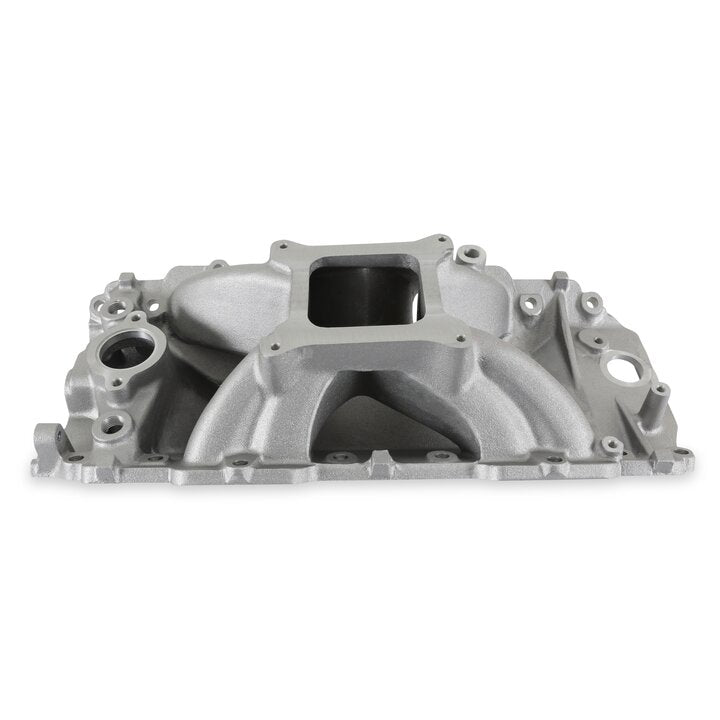

Holley Strip Dominator Intake - Big Block Chevy V8 - 300-4

Features:

• Height: Front 4.75", Rear 6.25"
• Single Plane/Open Plenum Design
• Deep Plenum Design with Isolated Runners
• Port Size: 1.85” height 1.60" width
• 4150 Square Bore Carburetor Mounting Flange
• Power band: 4500-8500 RPM

Product Specifications:

• Product Details: Carburetor Intake Manifold 396ci-502ci - Oval Port Heads
• Basic Operating RPM Range: 4500-8500 RPM
• Carburetor Flange: 4150 Square Bore
• Carburetor Quantity: 1
• Carburetor Studs Included: No
• CNC Ported: No
• Color: Natural
• Construction: Cast
• Cylinder Head Port Shape: Oval
• Deck Height: 9.8 IN
• EGR Port: No
• Engine: Chevy Big Block - Oval Port
• Flange Style: 4150 Square Bore
• Front Maximum Height: 4.77 IN
• Fuel Injectors Included: No
• Fuel Rail(s) Included: No
• Fuel System Type: Carb
• Gasket Or Seal Included: No
• Grade Type: Performance
• Intake Port Gasket(s) Included: No
• Manifold Type: High Rise
• Material: Aluminum
• Nitrous Bung(s) Included: No
• Part Type: Engine Intake Manifold
• Plenum Finish: Natural
• Product Type: Intake Manifold
• Rear Maximum Height: 6.16 IN
• Removable Runners: No
• Removable Top/Lid: No
• Single Or Dual Plane Type: Single Plane
• Throttle Body Bore Diameter: 3.6
• Throttle Body Gasket Included: No
• Throttle Body Included: No
• Vacuum Ports: No

Installation Notes:

Will fit tall blocks with use of Weiand spacer plate kit, P/N 8204. Accepts 850-1000 CFM Holley HP 4bbl carburetor.
