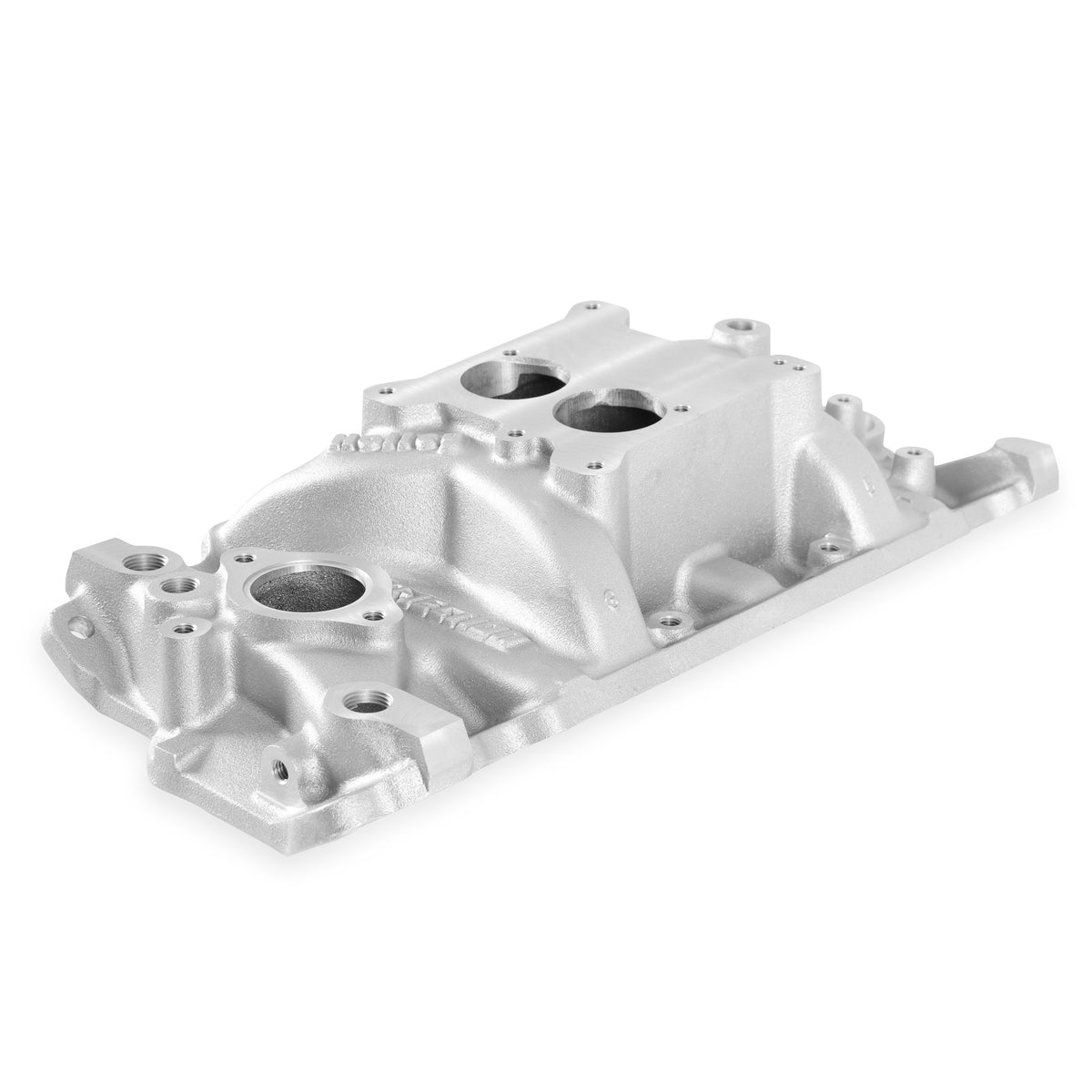

Holley Strip Dominator Intake - Chevy Small Block V8 - 300-66

Features:

• High Rise Dual Plane Design
• Power band: Idle-6000 RPM
• Holley Pro-Jection TBI Mounting Flange
• Height: Front 3.91", Rear 5.40"Port Size: 1.89” height 1.15" width
• EGR Provisions

Product Specifications:

• Product Details: Pro-Jection TBI Intake Manifold High Rise Dual Plane w/EGR 1987-later with Cast Iron Heads
• Basic Operating RPM Range: Idle-6000 RPM
• Carburetor Flange: Holley Pro-Jection
• Carburetor Quantity: 1
• Carburetor Studs Included: No
• CNC Ported: No
• Color: Natural
• Construction: Cast
• Cylinder Head Port Shape: Rectangle
• Deck Height: 9.025 IN
• EGR Port: No
• Engine: Chevrolet Small Block Gen I
• Front Maximum Height: 3.91 IN
• Fuel Injectors Included: No
• Fuel Rail(s) Included: No
• Fuel System Type: EFI
• Gasket Or Seal Included: No
• Grade Type: Performance
• Intake Port Gasket(s) Included: No
• Manifold Type: Low Rise
• Material: Aluminum
• Nitrous Bung(s) Included: No
• Part Type: Engine Intake Manifold
• Plenum Finish: Natural
• Product Type: Intake Manifold
• Rear Maximum Height: 5.4 IN
• Removable Runners: No
• Removable Top/Lid: No
• Single Or Dual Plane Type: Single Plane
• Throttle Body Bore Diameter: 2
• Throttle Body Gasket Included: No
• Throttle Body Included: No
• Vacuum Ports: No

Installation Notes:

Utilizes late model alternator and A/C bracket mounting provisions. Has vacuum taps off manifold runners. Extra installation hardware included. Not intended as O.E. replacement for 1987 & later fuel injected trucks.
