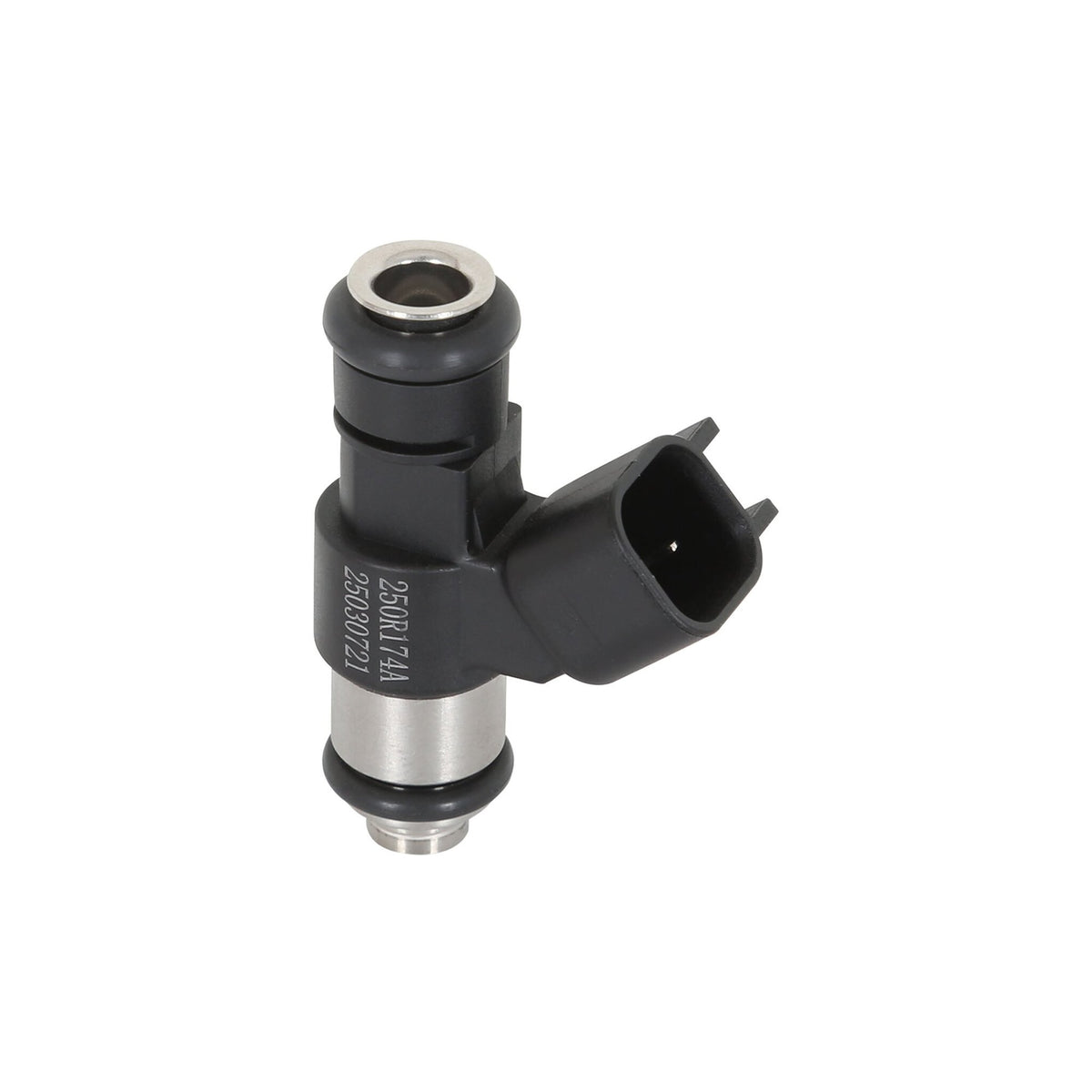

Holley Terminator X Fuel Injector - Individual - 522-221X
$123.95
Skip to product information
Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
Holley Terminator X Fuel Injector - Individual - 522-221X
$123.95
Features:
- PICO/EV6 style performance injectors – sold individually or set of 8
- High impedance for use with saturated drivers
- Rated injector flow 220 lb./hr. at 43 PSI of base fuel pressure
- USCAR injector connector
- 40mm o-ring to o-ring length
- Methanol compatible – for use in extreme horsepower applications
Product Specifications:
- Product Details: PICO/EV6 - 220 lb/hr - High Impedance
- Body Diameter: 0.97
- Body Length: 2.85"
- Body Style: EV6
- Color: Black
- Connector Series: USCAR - EV6
- Connector Shape: USCAR - EV6
- Flow Matched: No
- Flow Rate: 220 4U
- Fuel Injection Type: Port
- Fuel Type: E-85, Gasoline, Methanol
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Impedance: High
- Mounting Hardware Included: No
- O-Ring Quantity: 2 per injector
- O-Ring to O-Ring: 2.415"
- Part Type: Fuel Injector
- Product Type: Fuel Injector
- Qty: 1
- Rated Injector Flow: 220 lb/hr
- Retainer Clips Included: No
- Terminal Gender: Female
