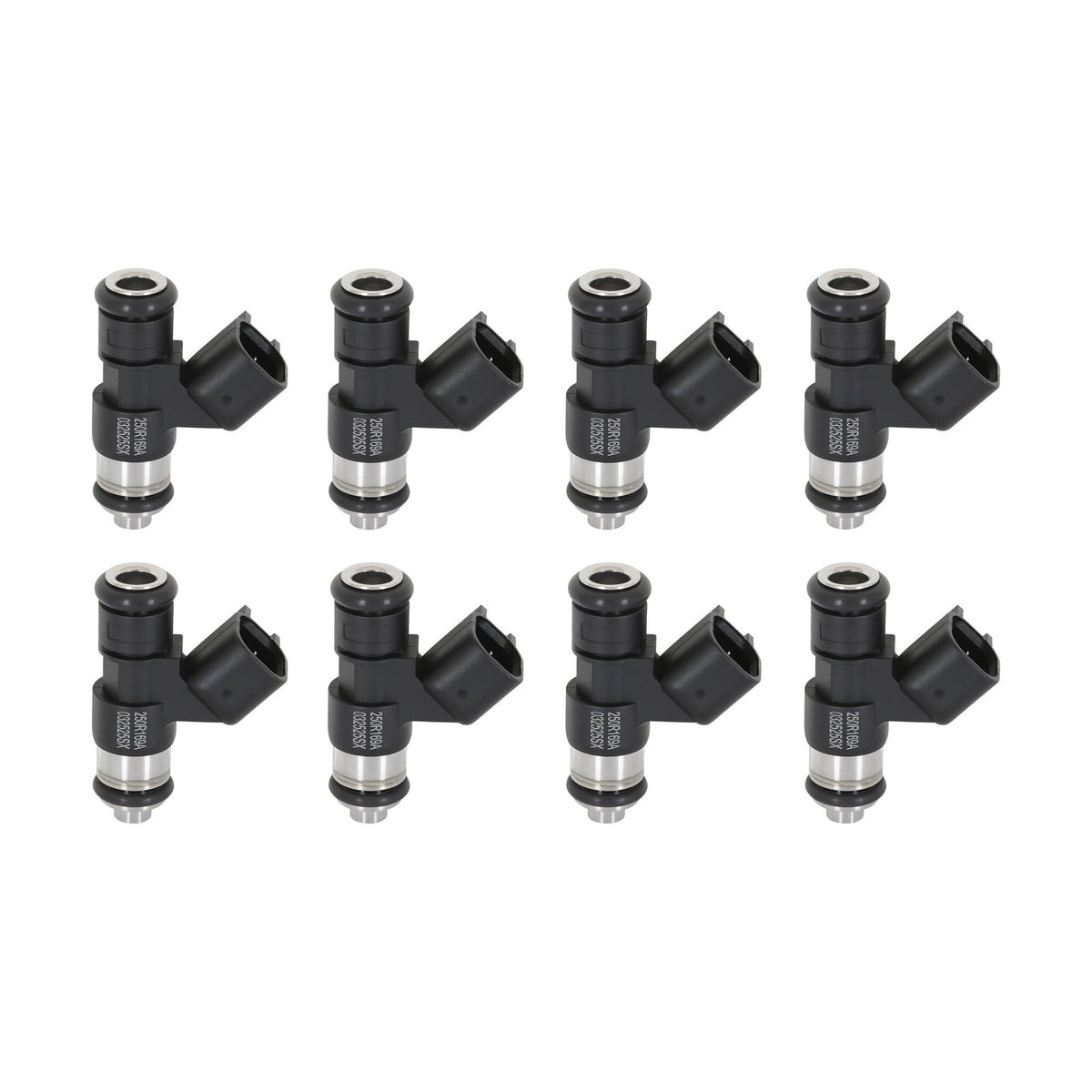

Holley Terminator X Fuel Injectors - Set of Eight - 522-108X
$499.95
Skip to product information
Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
Holley Terminator X Fuel Injectors - Set of Eight - 522-108X
$499.95
Features:
- PICO/EV6 style performance injectors – sold individually or set of 8
- High impedance for use with saturated drivers
- Rated injector flow: 100 lb./hr. at 60 PSI of base fuel pressure
- USCAR injector connector
- 40mm o-ring to o-ring length
Product Specifications:
- Product Details: PICO/EV6 - 100 lb/hr - High Impedance
- Body Diameter: 0.65
- Body Length: 1.85"
- Body Style: EV6
- Color: Black
- Connector Series: EV6
- Connector Shape: EV6
- Flow Matched: No
- Flow Rate: 100 4U
- Fuel Injection Type: Port
- Fuel Type: E-85, Gasoline
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Impedance: High (12.2 Ohm)
- Mounting Hardware Included: No
- O-Ring Quantity: 2 per injector
- O-Ring to O-Ring: 1.421
- Part Type: Fuel Injector
- Product Type: Fuel Injector
- Qty: 8
- Rated Injector Flow: 100 lb/hr
- Retainer Clips Included: No
- Terminal Gender: Female
