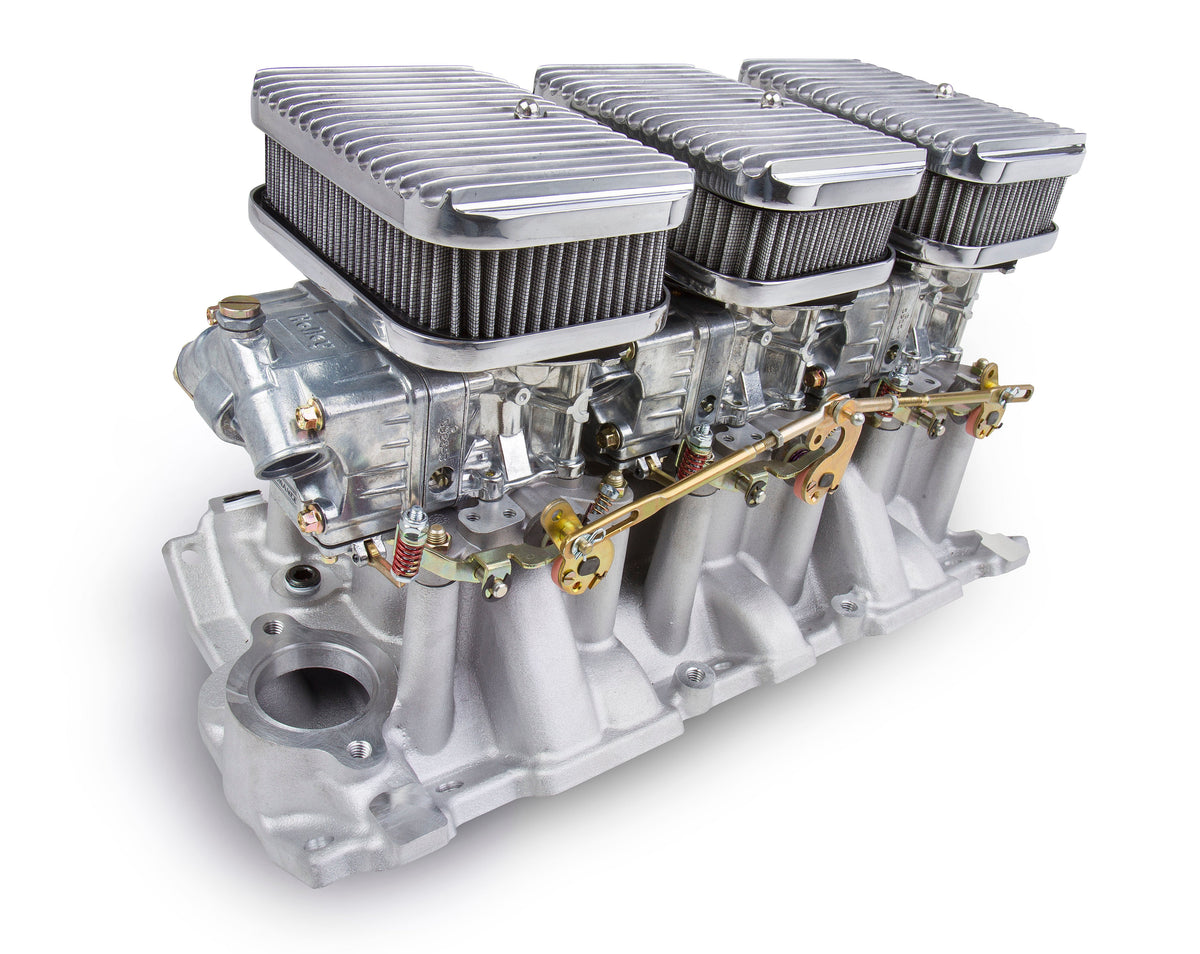

Holley Tri-Power 3x2 SBC Intake and Carburetor Kit - 300-522SA
$2,766.95
Skip to product information
The world famous Holley Tri-Power Carburetor system is legendary in Chevrolet circles! They were the ultimate power statement when they came factory on cars like the 1967 427 Corvette.
And, NOW you can have the same look on your SB Chevy! Perfect for muscle cars, street rods, classic hot rods, rat rods, trucks and more!
ECONOMY AND BIG HORSEPOWER!
Cruise around economically on the 325 CFM center carb, and when you decide to step on it, the two 350 CFM outboard carbs kick in for head-snapping performance!
Systems Include:
• Weiand Dual plane medium rise 3x2 intake manifold
• (3) Holley 2-bbl carbs (two 350 CFM outboard carbs, one 325 CFM center carb w/ electric choke)
• High-quality steel fuel lines
• Progressive throttle linkage
• Reusable air filters with polished housings
• Carburetors available in Dichromate or Shiny Finish
Holley Tri-Power 3x2 SBC Intake and Carburetor Kit - 300-522SA
$2,766.95
Features:
- Weiand dual plane medium rise 3x2 intake manifold
- (3) Holley 2-bbl carbs
- High quality steel fuel lines
- Progressive throttle linkage
- Reusable air filters with polished housings
- Shiny Carburetor Finish
- Height (Front) 11.5" from the front sealing surface to the top of the air cleaner nut
- Height (Rear) 12.5" from the front sealing surface to the top of the air cleaner nut
Product Specifications:
- Product Details: 350 CFM - 2300 - Shiny - Gasoline
- Adjustable Air Bleeds: No
- Adjustable Emulsion Bleeds: No
- Adjustable Idle Feed Restrictors: No
- Air Cleaner Flange Diameter: 5-1/8
- Application: Small Block Chevy
- Barrel Quantity: 2
- Barrels: 2
- Barrels Quantity: 2
- Body Color: Polished
- Body Finish: Polished
- Body Material: Aluminum
- Booster Design: Straight
- Carburetor Material: Aluminum
- Carburetor Use: Performance and Race
- CFM: 350
- CFM Rating: 350
- Choke: Electric
- Choke Type: Electric
- Circuit Count: 2
- Color: Polished Aluminum
- Cubic Feet Per Minute Rating: 350
- Finish: Polished
- Flange Shape: Rectangular
- Flange Type: 2300 2-BBL
- Float Level: Externally Adjustable
- Fuel: Gasoline
- Fuel Inlet Count: Single
- Fuel Inlet Type: 1/2-20 Inverted Flare
- Fuel Type: Gasoline
- Gasket Or Seal Included: Yes
- Grade Type: Tri-power
- Linkage Attached: Yes
- Manifold Material: Aluminum
- Manifold Type: Weiand 3X2 Dual Plane
- Marine Approved: No
- Marine Use: No
- Material: Aluminum
- Meter Block Material: Billet Aluminum
- Metering Block Color: Shiny
- Model: 2300
- Mounting Hardware Included: No
- Mounting Hole Quantity: 4
- Part Type: Carburetor
- Primary Float Type: Center Hung Nitrophyl
- Primary Throttle Bore Diameter: 1.498
- Primary Venturii Diameter: 1.187
- Product Type: Tri-Power Carburetor
- Secondaries: None
- Secondary Barrel Type: None
- Secondary Float Type: Center Hung Nitrophyl
- Secondary Jet Extensions: No
- Series: Tri-Power
- Spacer Included: No
- Supercharged Application: No
- Vacuum Ports: 1 Timed (spark)
Installation Notes:
Requires small cap distributor (up to 5-1/8" Diameter), or MSD 8361. HEI style distributor is too large and will not fit. ***There is currently no kick down linkage adaptation for automatic transmission application. Replacement filter Height- 2.5", Length- 6.5", Width- 4.3". Use Weiand 90633 or comparable filter.
