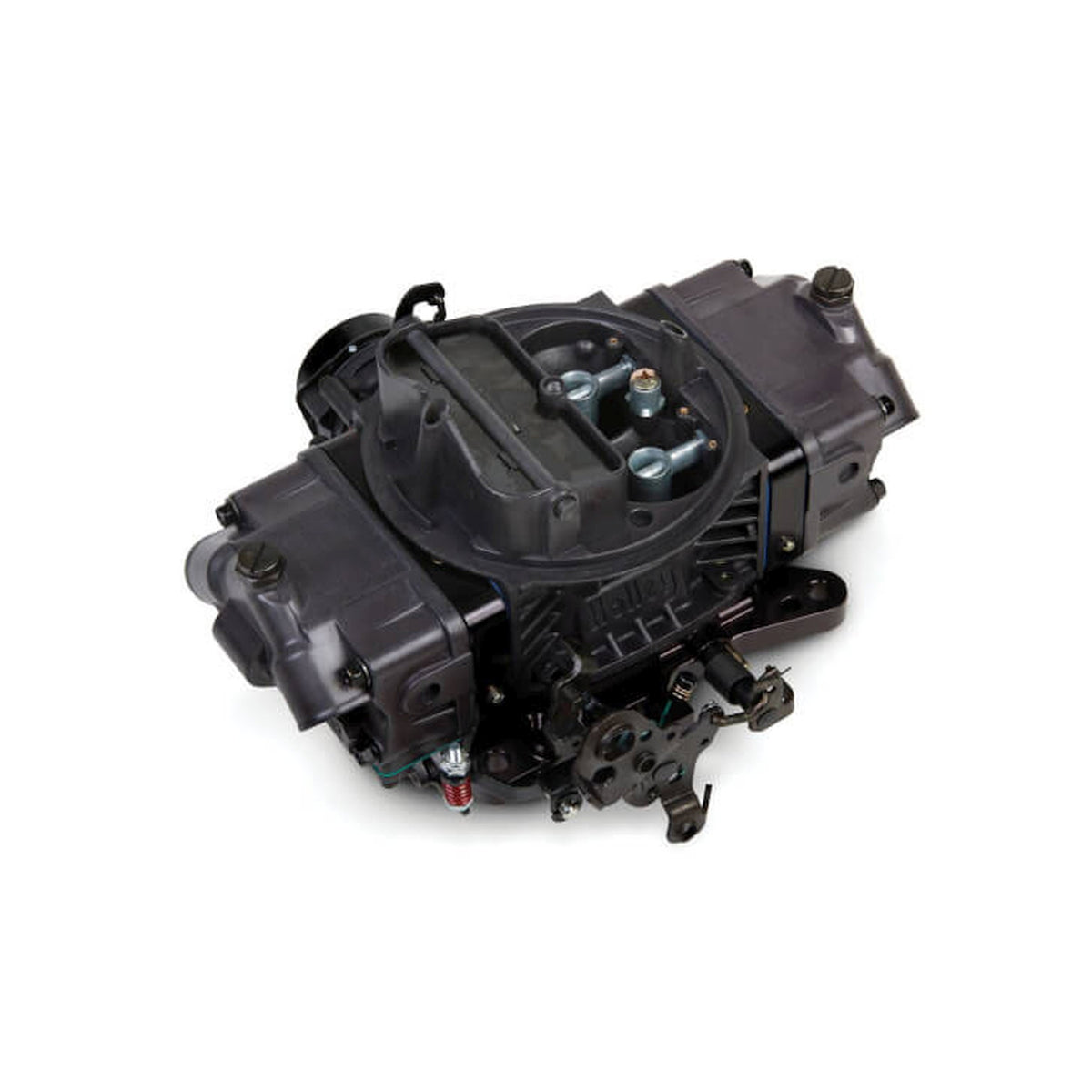

Holley Ultra Double Pumper Carburetor - 0-76850HB
$1,075.95
Skip to product information
ULTRA light
Aluminum construction for 43% weight savings
ULTRA stealthy
Hard Core Gray™ anodized finish
ULTRA strong
Billet metering blocks & base plates
ULTRA cool
Black anodized billet aluminum metering blocks and base plate
ULTRA easy
Built in sight window for simple float adjustments
ULTRA fast
High-performance fuel curves
The Ultra Double Pumper™ Carburetors feature all aluminum construction and are equipped with metering blocks and a base plate made from 6061-T6 billet aluminum. They weigh in at approximately 5 lbs. less than a comparable zinc carburetor.
The new Ultra Double Pumper Carburetors have an enhanced fuel curve for optimum performance, with many more features such as aluminum construction, anodized billet aluminum metering blocks and base plate, 4 corner idle for precise idle control, mechanical secondaries for great performance, clear fuel level sight plugs for easy, no mess fuel level adjustments, Ford automatic transmission kickdown for use on popular Ford transmissions, four vacuum ports for all necessary vacuum accessories, and for the first time on a Double Pumper, factory pre-set electric choke for easy, fast cold start-ups.
The clean, stealthy look coupled with Black metering blocks and throttle body will certainly set your ride apart whether you are at the show or track.
Holley Ultra Double Pumper Carburetor - 0-76850HB
$1,075.95
Features:
- Hard Core Gray™ w/ black anodized billet aluminum metering blocks/base plate. Casting is hard coat anodized for ultimate corrosion resistance
- Ultra Double Pumpers feature an Optimized street/strip calibration that works out-of-the-box
- Factory preset electric choke for easy startups
- Mechanical secondaries for awesome tire turning performance
- 4 corner idle allows you to precisely control your idle system
- Built in, clear fuel level sight glass for easy, no mess fuel level adjustments
- Aluminum construction for a 43% weight savings
- Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.
- Intended for lightweight vehicles w/ manual trans or automatics with high stall & low gearing
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Product Specifications:
- Product Details: 850 CFM - 4150 - Mechanical Secondaries - Hard Core Gray - Gasoline
- Adjustable Air Bleeds: No
- Adjustable Emulsion Bleeds: No
- Adjustable Idle Feed Restrictors: No
- Air Cleaner Flange Diameter: 5-1/8
- Barrel Quantity: 4
- Barrels: 4
- Barrels Quantity: 4
- Billet Color: Black
- Body Color: Hard Core Gray
- Body Finish: E-Coated
- Body Material: Aluminum
- Booster: Downleg
- Booster Design: Downleg
- Carburetor Material: Aluminum
- Carburetor Use: Performance and Race
- CFM: 850
- CFM Rating: 850
- Choke: Electric
- Choke Type: Electric
- Circuit Count: 2
- Color: Hard Coat Gray
- Condition: New
- Cubic Feet Per Minute Rating: 850
- Finish: Hard Core Gray
- Flange Shape: Square
- Flange Type: Square/4150
- Float Level: Externally Adjustable
- Fuel: Gasoline
- Fuel Inlet: Dual
- Fuel Inlet Center to Center: 9.5
- Fuel Inlet Count: Dual
- Fuel Inlet Type: 5/8-18 Inverted Flare
- Fuel Type: Gasoline
- Gasket Or Seal Included: Yes
- Grade Type: Street/Strip
- Linkage Attached: Yes
- Marine Approved: No
- Marine Use: No
- Material: Aluminum
- Meter Block Material: Billet Aluminum
- Metering Block Color: Black
- Model: 4150
- Mounting Hardware Included: No
- Mounting Hole Quantity: 4
- Part Type: Carburetor
- Primary Float Type: Center Hung Nitrophyl
- Primary Jet Diameter: 80
- Primary Main Jet Size: 80
- Primary Power Valve: 6.5
- Primary Pump Nozzle Size: 31
- Primary Throttle Bore Diameter: 1.75
- Primary Venturii Diameter: 1.563
- Product Type: Carburetor
- Secondaries: Mechanical
- Secondary Barrel Type: Mechanical
- Secondary Float Type: Center Hung Nitrophyl
- Secondary Jet Extensions: No
- Secondary Main Jet Size: 80
- Secondary Power Valve: 6.5
- Secondary Pump Nozzle Size: 31
- Secondary Throttle Bore Diameter: 1.750
- Series: Ultra Double Pumper
- Spacer Included: No
- Supercharged Application: No
- Throttle Bore Diameter: 1.750 inch
- Throttle Kickdown Provision(S): Compatible with GM, Chrysler, and Ford A/T kickdown linkage
- Vacuum Ports: 1 timed (spark) port, 2 full, and 1 PCV port
Installation Notes:
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
