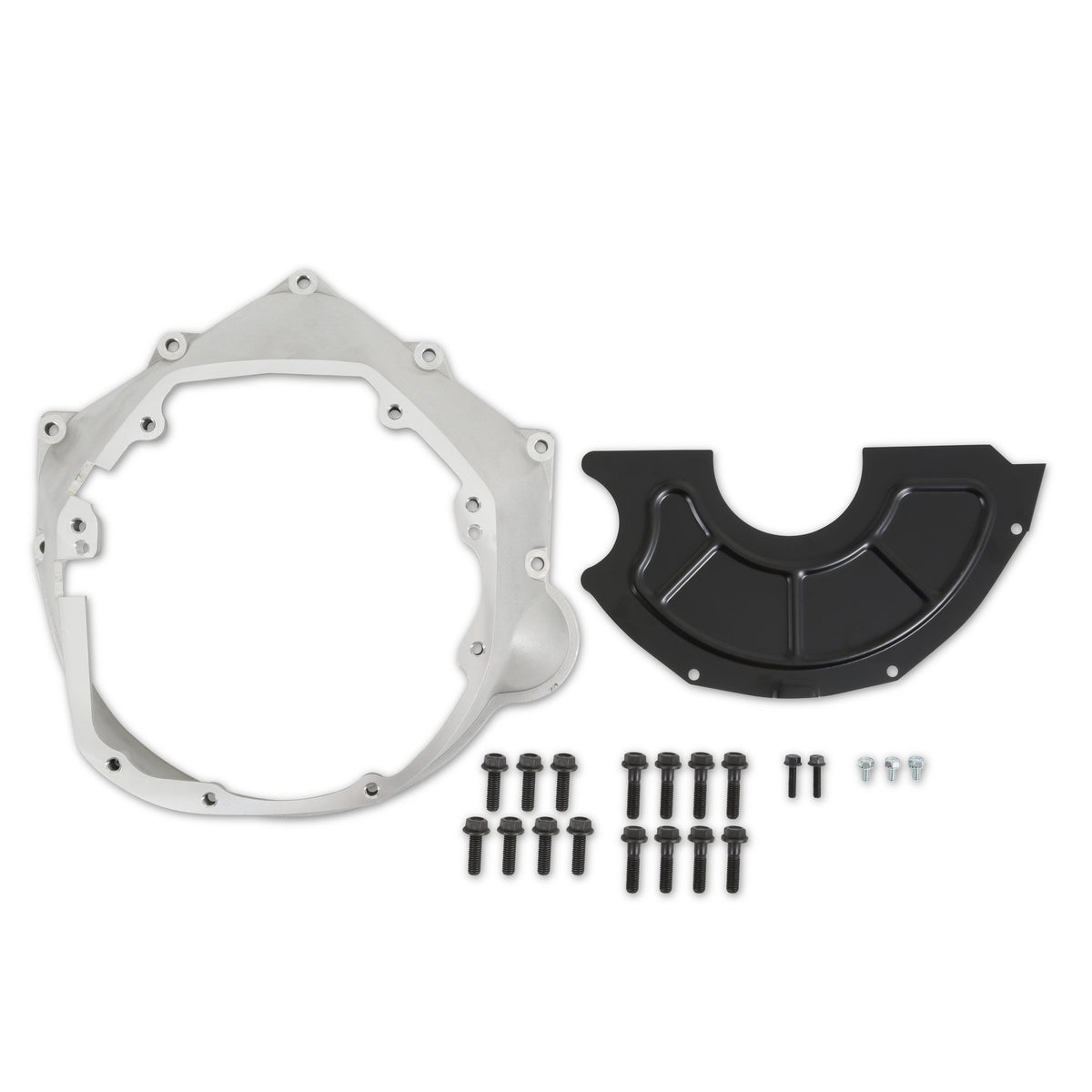

Lakewood Bellhousing Kit - Chevrolet Small-Block and Big-Block Engines - LK4100K
$434.95
Skip to product information
This Lakewood cast aluminum bellhousing connects Chevrolet Small-Block and Big-Block engines to Tremec T-56 and Magnum transmissions utilizing the standard GM pattern. The bellhousing is intended for both GM cars and trucks and other various swap applications. They are a lightweight cast aluminum design and are meant to be used with hydraulic release bearings only (we suggest Hays #82-120 or Holley #319-100). Also included are a stamped dust cover and Lakewood bellhousing bolt kit #50396 which contains all necessary Grade 8/10.9 Hardware to connect the engine and transmission securely.
*See LK4000K for the SBC/BBC > TKX/TKO/Muncie/Saginaw mechanical kit.
*See LK4200K for the SBC/BBC/LS/LT > TKX/TKO/Muncie/Saginaw hydraulic kit.
*See LK5100K for the Gen III/IV/V LS/LT > GM T-56/Magnum kit.
Lakewood Bellhousing Kit - Chevrolet Small-Block and Big-Block Engines - LK4100K
$434.95
Features:
- Lightweight cast aluminum design similar to the original equipment bellhousings
- Lower cost non-SFI rated option if your project does not require the steel SFI rated unit
- Designed for Hydraulic Release Bearings Only (we suggest Hays #82-120 or Holley #319-100)
- Includes Grade 8/10.9 Hardware
- Works with small-block or big-block applications where use of a GM T-56 or Magnum transmission is desired
Product Specifications:
- Product Details: Connects SBC and BBC Engines to Tremec GM T-56 and Magnum Transmissions
- Clutch Diameter: 10.5 IN
- Color: Cast
- Engine: Chevrolet Small Block Gen I, GM Big Block
- Engine Make: Chevrolet
- Flywheel: 153 or 168 Tooth
- Grade Type: Performance
- Material: Cast Aluminum
- Part Type: Transmission Bell Housing
- Product Type: Bellhousing Kit
- SFI Approved: No
- Transmission: T56 GM, T56 Magnum
- Transmission Type: Manual
