Lakewood Bellhousing Kit - Ford Modular and Coyote Engines - TKX and TKO - LK8200K
$460.95
Skip to product information

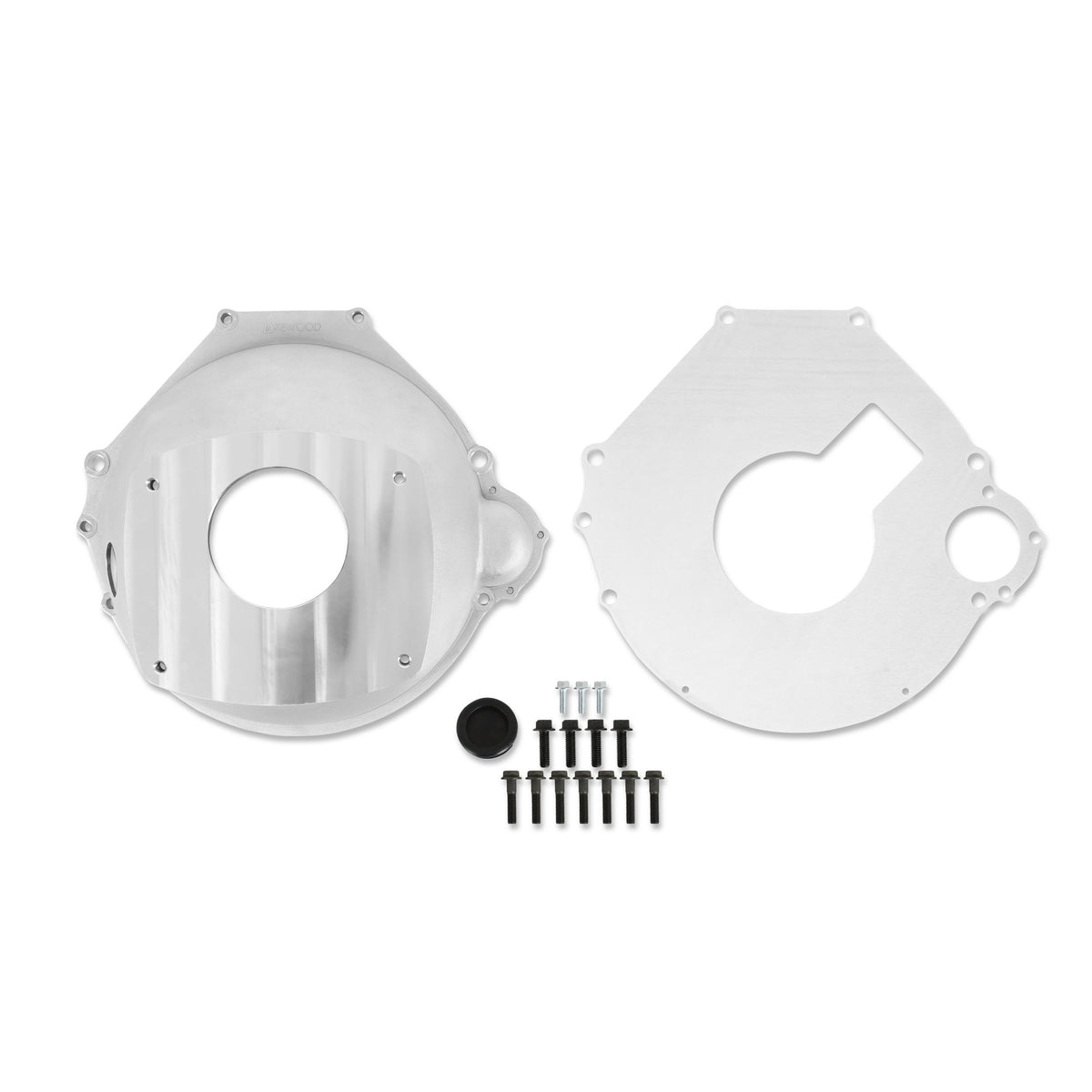

These Lakewood cast aluminum bellhousings connect Ford Coyote and Modular Engines to Ford-Style Tremec TKX, TKO, and TR-3550 transmissions. The bellhousings can be used on both Ford cars and trucks and other manufacturers where swap applications are being installed. These kits come complete with a block plate, hydraulic hose grommet, and Grade 8/10.9 mounting hardware that connects the bellhousing to both the engine and transmission.
Lakewood Bellhousing Kit - Ford Modular and Coyote Engines - TKX and TKO - LK8200K
$460.95
Features:
- Lightweight cast aluminum design similar to the original equipment bellhousings
- Connects Ford Modular or Coyote engines to Ford-style Tremec TKX, TKO, and TR-3550 Transmissions
- Lower cost non-SFI rated option for projects that do not require a steel SFI rated unit
- Designed For Hydraulic Throwout/Release Bearing (recommend Hays #82-103)
- Bellhousing Depth: 7.27 in
- Transmission Bore Diameter: 4.685 In
- Includes Grade 8/10.9 Hardware for both engine and transmission
- Includes block plate and grommet for sealing off hydraulic hose opening
Product Specifications:
- Product Details: Connects Ford Coyote and Modular Engines to Tremec TKX, TKO, and TR-3550 Transmissions
- Clutch Diameter: 11 IN
- Engine: Ford Coyote, Ford Mod Motor
- Engine Make: Ford
- Flywheel: 164 Tooth
- Grade Type: Performance
- Height: 7.27 IN
- Material: Cast Aluminum
- Part Type: Transmission Bell Housing
- Product Type: Bellhousing Kit
- Release Bearing: Hydraulic
- SFI Approved: No
- Transmission: TKO 500/600 Ford, TKX Ford, TR3550
- Transmission Bore Diameter: 4.685 IN
- Transmission Type: Manual
