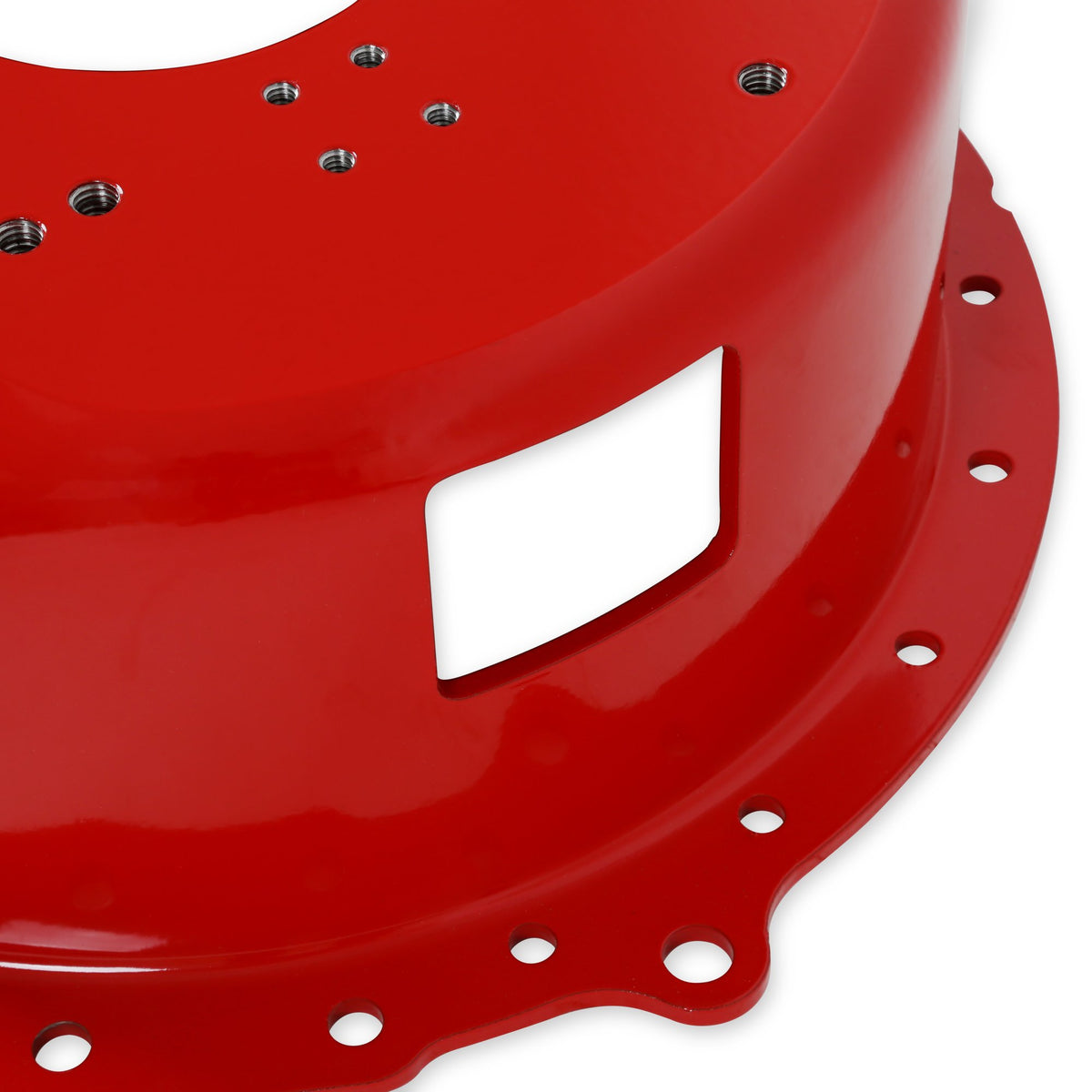

Lakewood Bellhousing - Small Block Ford - 15200
$1,177.95
Skip to product information
The Lakewood 15200 bellhousing connects Ford small block engines to Ford toploaders, Borg Warner T10, and Tremec TKO (short shaft) transmissions. This bellhousing is hydro formed to fit most Ford chassis. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. The Lakewood 15200 comes complete with engine block plate and Grade 8 mounting hardware. Note: (Transmission Mounting Bolts Not Included)
Lakewood Bellhousing - Small Block Ford - 15200
$1,177.95
Features:
- Designed For Mechanical Linkage, Pull Cable or Hydraulic clutch operation
- Bellhousing Depth: 6.361 in
- Clutch Fork Opening: 3.00 In X 2.37 In
- Includes 3 Retainer Rings for Various Transmissions
- Hydro formed Construction
- Includes Grade 8 Hardware
- S.F.I. 6.1 Certification
- Made In The USA
- Fork Bracket and Pivot Ball included
Product Specifications:
- Product Details: Perfect fit for Top Loader, BW T-10 and TKO (short input shaft) transmissions
- Clutch Diameter: 11 IN
- Clutch Operation: Mechanical, Pull Cable or Hydraulic
- Color: Red
- Engine: Ford 289, Ford 302, Ford 351C, Ford 351W, Ford Small Block
- Engine Make: Ford
- Flywheel: 157/164 Tooth
- Grade Type: Performance
- Height: 6.361
- Material: Steel
- Part Type: Transmission Bell Housing
- Product Type: Bellhousing
- SFI Approved: Yes
- SFI Certification: 6.1
- Transmission: Ford Toploader, T10, TKO 500/600 Ford - Short Shaft
- Transmission Bore Diameter: Universal 4.685/4.850/4.910/5.120 IN
- Transmission Type: Manual
- Weight: 44.8 LB
