Legendary Wheel Magnum 500 - 17x7 - 5x4.5 - 4.25 BS - Satin Black/Machined - LW50-70754D

Legendary Wheel Magnum 500 - 17x7 - 5x4.5 - 4.25 BS - Satin Black/Machined - LW50-70754D

$299.95
Skip to product information
Legendary Wheel Magnum 500 - 17x7 - 5x4.5 - 4.25 BS - Satin Black/Machined - LW50-70754D
  • Legendary Wheel Magnum 500 - 17x7 - 5x4.5 - 4.25 BS - Satin Black/Machined - LW50-70754D
  • Legendary Wheel Magnum 500 - 17x7 - 5x4.5 - 4.25 BS - Satin Black/Machined - LW50-70754D
Legendary Wheel Magnum 500 - 17x7 - 5x4.5 - 4.25 BS - Satin Black/Machined - LW50-70754D

Legendary Wheel Magnum 500 - 17x7 - 5x4.5 - 4.25 BS - Satin Black/Machined - LW50-70754D

$299.95

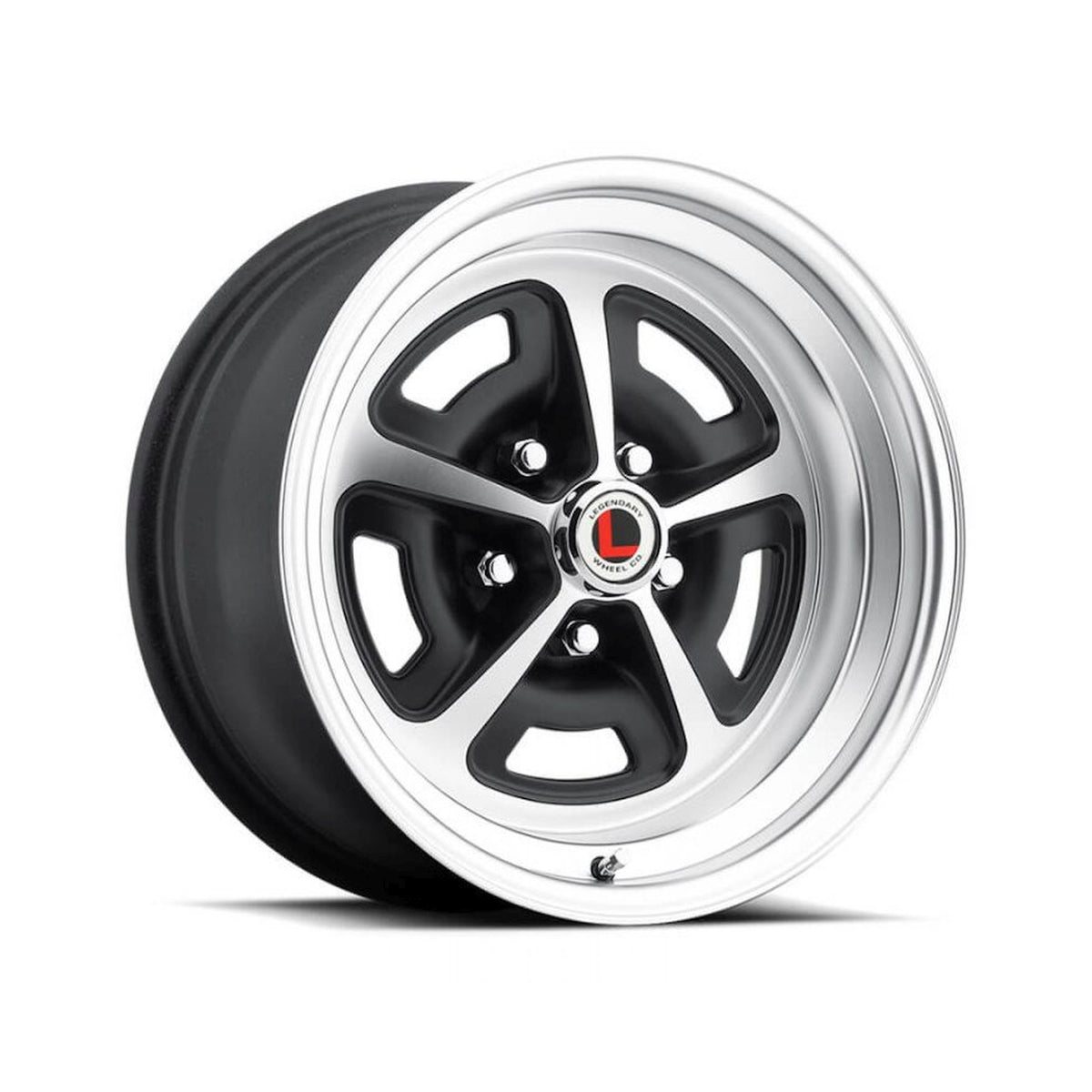

The Legendary Magnum 500 alloy wheel is one of the hottest styles available for classic muscle cars. This iconic design is enhanced with precision cast aluminum alloy construction and features CNC machined details for that show-winning look. Center caps and lug nuts sold separately. Finished is a Satin clear coat. Also available in Gloss (P/N: LW50-70754A) and in 17x8 Satin finish (P/N: LW50-70854D). 5 x 4.5" Bolt Pattern, 4.25" Backspace. Center caps and lug nuts sold separately.

Features:

  • 17 x 7 - 5 x 4.5 - 4.25 BS
  • Size: 17x7
  • Bolt Pattern: 5x4.5
  • 5 Lug
  • Backspace: 4.25
  • Center Cap Included: Yes
  • Color: Silver
  • Material: Aluminum

Product Specifications:

  • Product Details: 17 x 7 | 5x4.5" / 5x114.3 | 4.25" BS | 7.2 MM Offset; Verify all wheel fitment specs to your specific application before ordering.
  • Backspacing: 4.25 IN
  • Backspacing (in): 4.25
  • Beadlock Functional: No
  • Beadlock Included: No
  • Bolt Pattern: 5x114.3 MM, 5x4.5 IN
  • Center Bore Diameter: 2.846 IN
  • Center Cap Included: Yes
  • Clear Coat Finish: Yes
  • Color: Silver
  • Construction: Cast
  • Design: 1-Piece
  • Diameter: 17 IN
  • Diameter (in): 17
  • Finish: Satin Blac
  • Grade Type: Performance
  • Hole Quantity: 5
  • Hub Bore Diameter: 2.847 IN, 72.3 MM
  • Insert(s) Included: No
  • Lug Hole Quantity: 5
  • Lug Nut Included: No
  • Lug Nut Insert Included: No
  • Lug Nut Seat Style: 60 Degree Conical
  • Material: Cast Aluminum
  • Mounting Hardware Included: No
  • Offset: 7.2 MM
  • Offset (mm): 7.2
  • Part Type: Wheel
  • Plastic Inlays Included: No
  • Positive Offset: 7.2 MM
  • Product Type: Wheels
  • Quantity: 1
  • Resonator Included: No
  • Slot Quantity: 5
  • Spacer Included: No
  • Split Type: No
  • Spoke Quantity: 5
  • Title: Legendary Wheels Magnum 500 - Satin Black/Machined LW50-70754D
  • TPMS Compatible: Yes
  • TPMS Included: No
  • Type: LW50
  • Valve Included: No
  • Valve Stems Included: No
  • Weight: 23.5 LB
  • Wheel Bolt Pattern (in): 5x4.5
  • Wheel Bolt Pattern (mm): 5x114.3
  • Wheel Construction: 1-Piece
  • Wheel Series: LW50
  • Width: 7 IN
  • Width (in): 7

Installation Notes:

The vehicle application data for this wheel is a general guideline only. Check bolt pattern, width, back-space (or offset), center bore, and brake caliper clearance to confirm that the desired wheel will fit your vehicle. Many vehicles have been modified & these changes may cause wheel fitment issues (i.e. axle swaps, disc brake / big brake conversions, suspension changes, and other modifications). ALWAYS verify the wheel actually fits on your vehicle BEFORE mounting tires. Wheels are non-returnable after tires have been mounted.
