Mr. Gasket Electric Fuel Pump with Regulator - 105 GPH - 105P
$123.95
Skip to product information

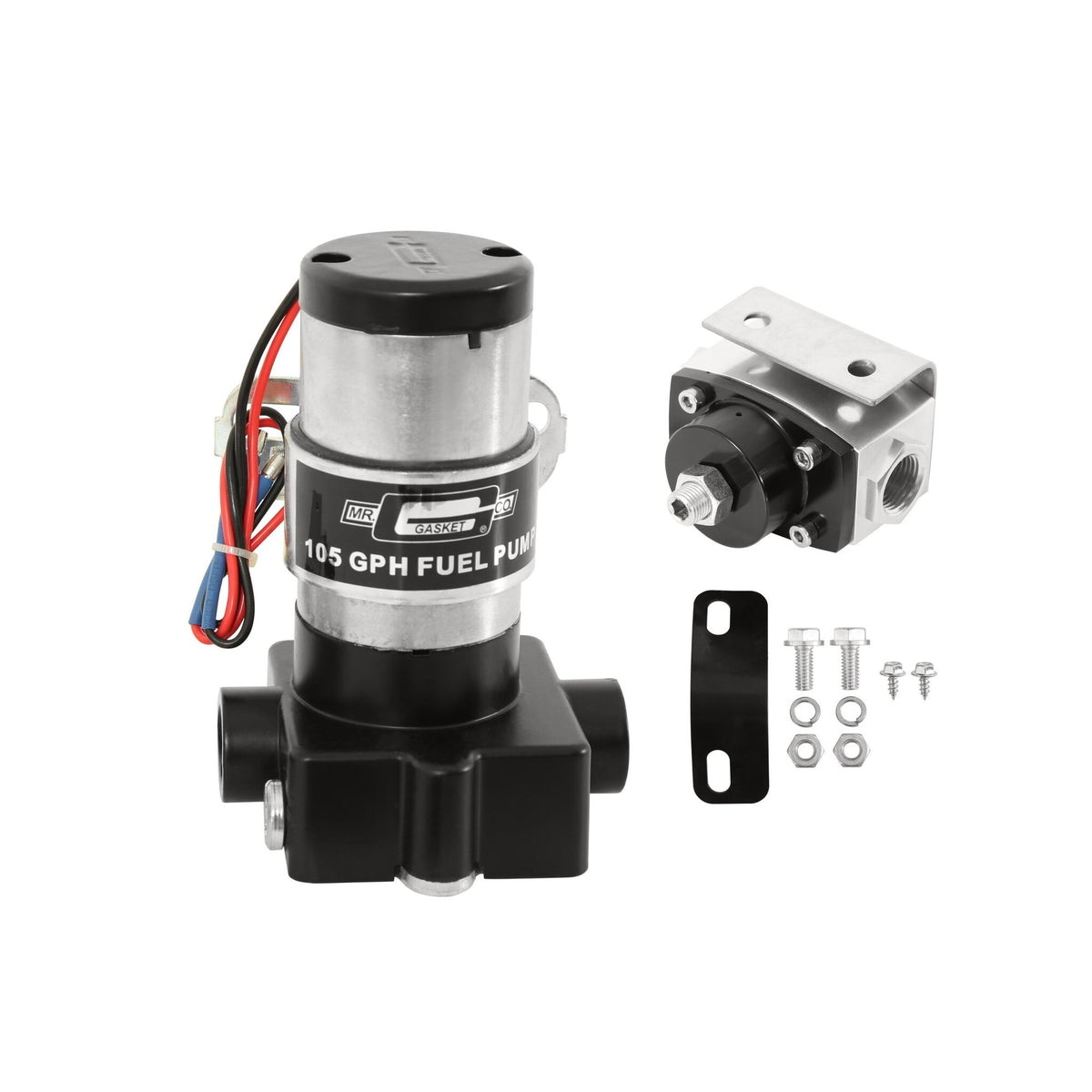

This high performance electric fuel pump has a free flow rate of 105 GPH (gallons per hour) with a maximum pressure of 14 psi (pounds per square inch). It is a gravity fed vane/rotor type high volume low pressure pump designed for street/strip applications. The operating fuel pressure is factory is set at 14 psi and is adjustable to as low as 4 through the included regulator. This pump must be used with included fuel pressure regulator. A 3/8 inch i.d. (inner diameter) hose is recomended with this fuel system. The fuel return line should be as large or larger than the fuel line between the fuel pump and the regulator. Free flows at 105 GPH and 70 GPH at 9 PSI.
Mr. Gasket Electric Fuel Pump with Regulator - 105 GPH - 105P
$123.95
Features:
- Rotor/vane style
- 100% Pressure Tested For Perf And Reliability
- 3/8 in NPT Inlet/Outlet For Easy Installation
- Universal Fit - Includes Mounting Bracket
- Return Style Regulator Eliminates Vapor Lock
- Improved Pump Design For A Longer Extended Life
Product Specifications:
- Product Details: For Carbureted Gasoline Applications Only.
- Application: Automotive
- Average Flow Rating: 105
- Color: Silver
- Finish: Zinc
- Free Flow GPH: 105
- Free Flow LPH: 397
- Fuel Delivery Type: Carburetor
- Fuel Sending Unit Included: No
- Fuel System: Carbureted
- Fuel Type: Gasoline
- Gasket Or Seal Included: No
- Grade Type: Performance
- Inlet Fitting Thread Size: 3/8"
- Inlet Type: NPT
- Material: Steel
- Mounting Hardware Included: Yes
- Outlet Fitting Thread Size: 3/8"
- Outlet Type: NPT
- Part Type: Electric Fuel Pump
- Product Type: Fuel Pump
- Strainer Included: No
- Terminal Quantity: 2
- Universal Or Specific Fit: Universal
- Weight: 4
- Wiring Harness Included: No
