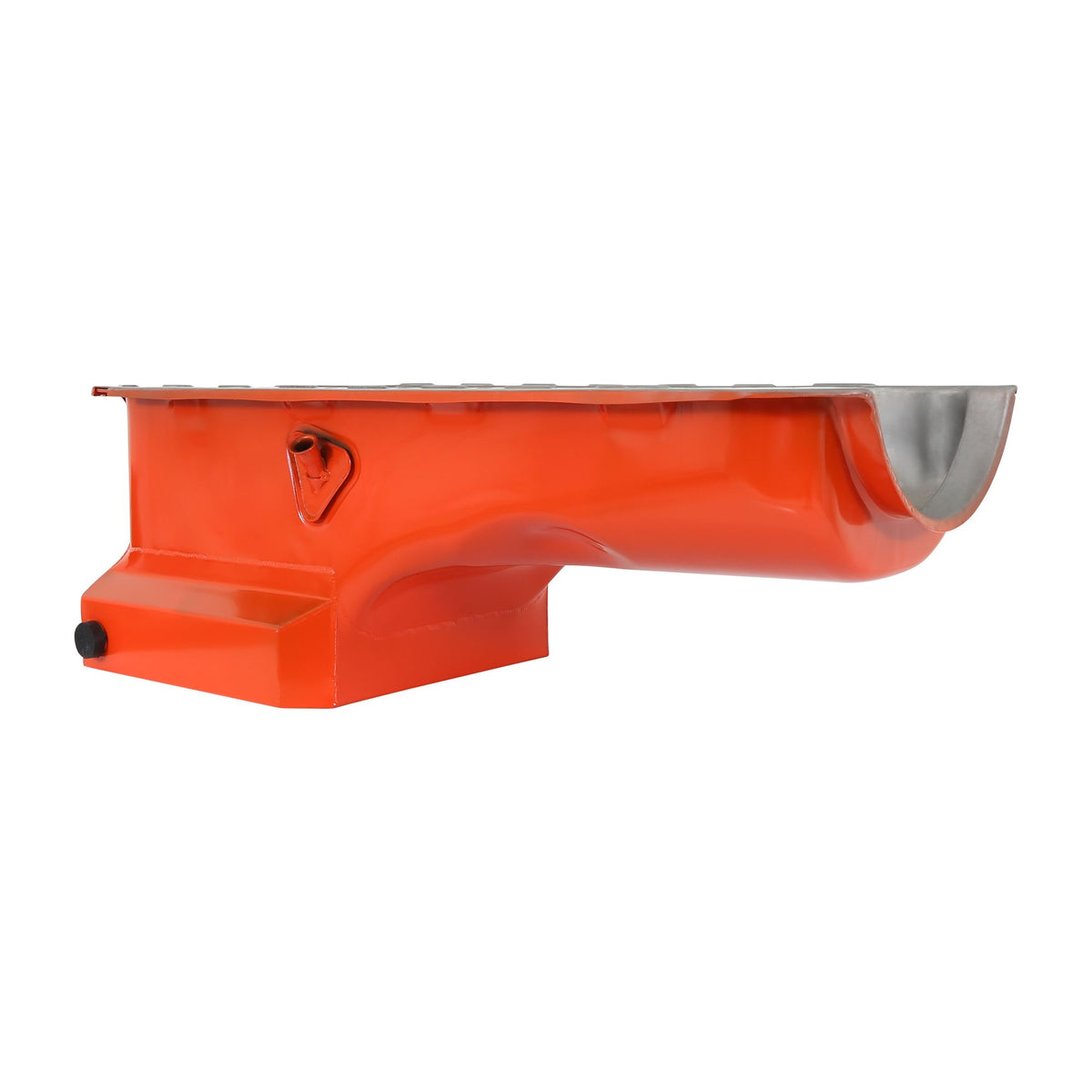

Mr. Gasket Low Profile Oil Pan - Orange - 7606G
$240.95
Skip to product information
Designed for most big block Chevrolet applications, the low profile sump design allows increased oil capacity without restricting ground clearance. Specially designed internal trap door baffling, combined with custom oil pump pick-ups, keep oil pressure fluctuation to a minimum. These oil pan measure 8-1/4 inch deep from the top side rail to bottom sump, and feature bright orange paint finish. For both street and racing applications. Oil pan capacity is 6 quarts.
Mr. Gasket Low Profile Oil Pan - Orange - 7606G
$240.95
Features:
- Additional oil capacity - 6 Quarts
- Superior oil control due to internal trap door baffle
- Good ground clearance
- Prepainted bright orange
- Depth of Oil Pan: 8-1/4"
- Width of Oil Pan: 8-3/8"
- Length of Oil Pan: 22-3/4"
Product Specifications:
- Product Details: Fits 1965-1990 Chevrolet 396-454 Big Block
- Application: 1965-1990 Big Block Chevy
- Baffled: Yes
- Color: Orange
- Finish: Cast
- Gasket Or Seal Included: No
- Material: Steel
- Part Type: Engine Oil Pan
- Product Type: Oil Pan Kit
- Weight: 14
