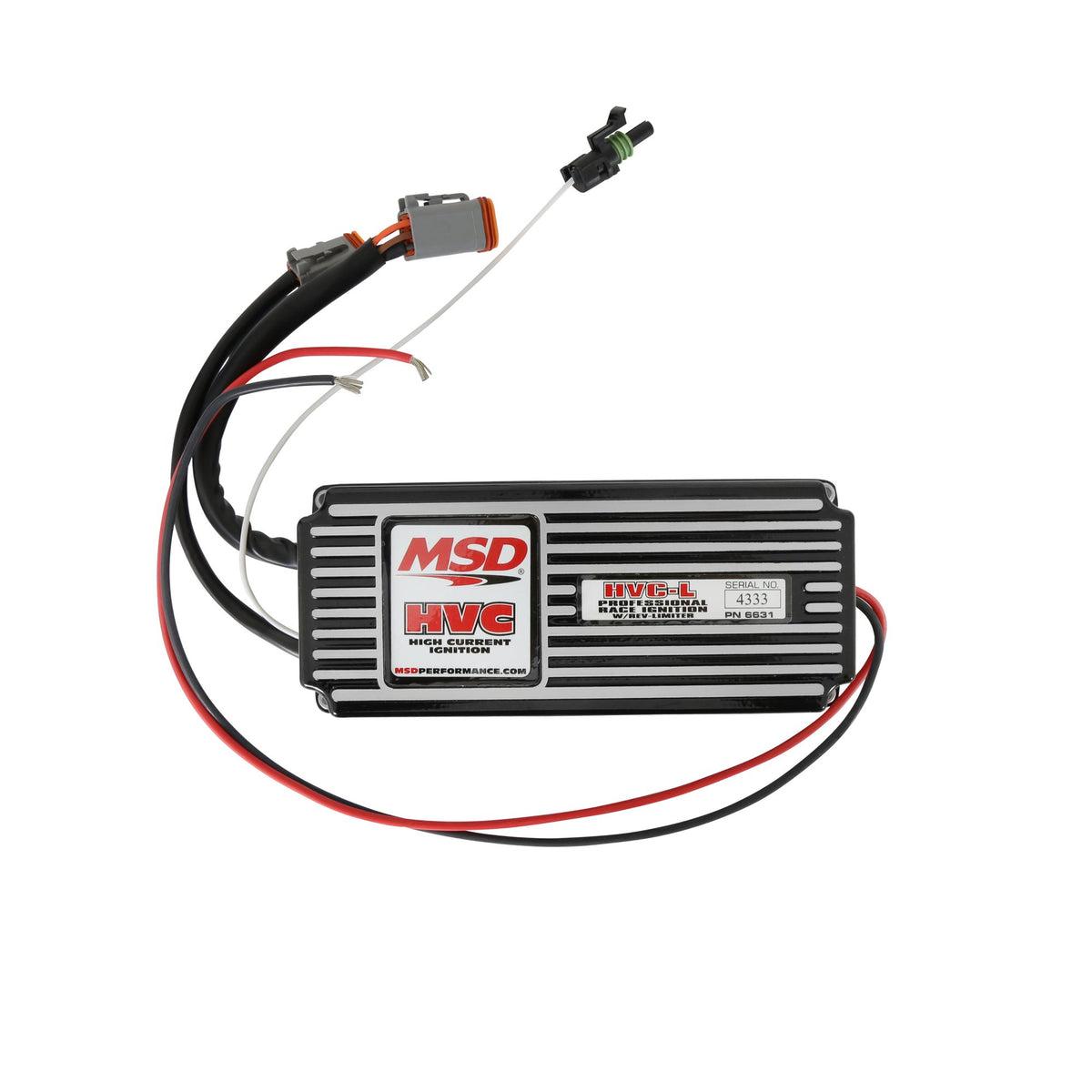

MSD 6 HVC, Professional Race with Fast Rev Limiter - 6631
$949.95
Skip to product information
The Fast Rev limiter is very quick and accurate compared to our Soft Touch Rev limiter.
Professional race teams have been relying on the power and endurance of our 6 HVC Ignition Control. The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it's all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors.
MSD 6 HVC, Professional Race with Fast Rev Limiter - 6631
$949.95
Features:
- 150 millijoules per spark up to 15,000 RPM
- Built-in reverse polarity protection circuit
- Must be used with HVC Coil PN 8250
- Accepts breaker points, amplifier and magnetic pickup trigger inputs
- 6-pin Weathertight connector, mandatory for NASCAR use
- No CARB Exemption Order Number
- 15,000 RPM with 14.4 Volts
- Multiple sparks for 20 degrees of crankshaft rotation
- Includes built-in Fast rev limiter
- 12-18 Volts, Negative Ground
- Clear epoxy potting compound for vibration protection and clear base plate for easy tech inspection
- 550 primary voltage output to coil
Product Specifications:
- Product Details: For use in Circle Track and Professional Racing, with Fast Rev Limiter
- Color: Black
- Connector Gender: Male Female
- Connector Quantity: 3
- Grade Type: Performance
- Height: 2.25 IN
- Ignition Type: Performance
- Length: 8 IN
- Maximum RPM: 15,000 RPM
- Mount Type: Surface Mount
- Mounting Hardware Included: Yes
- Primary Voltage: 550
- Product Type: Ignition Box
- Secondary Voltage: 40,000
- Spark Energy (mJ per spark): 150
- Spark Series Duration: 20 Degree Crankshaft Rotation
- Terminal Gender: Male Female
- Terminal Quantity: 11
- Voltage Required: 12-18
- Weight and Size: 5.1 lbs.,8L x 4W x 2.25H
- Width: 4 IN
