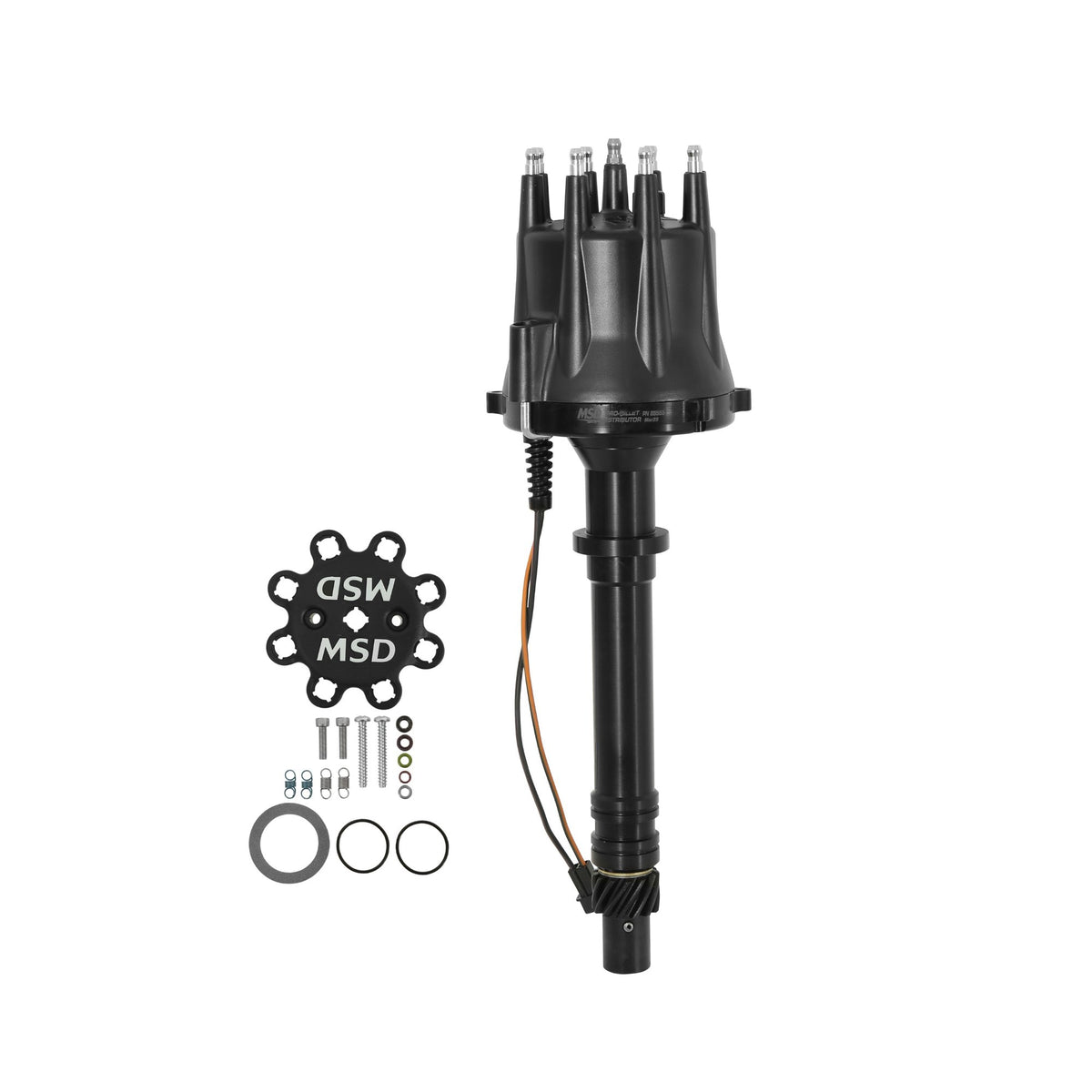

MSD Chevy Black V8 Pro-Billet Distributor - 85555
$399.95
Skip to product information
The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenancefree! Just above the pick-up is MSD's adjustable mechanical advance assembly.
Different springs and stop bushings are supplied so you can tune an advance curve to match your application. Must be used with an MSD 6, 7 or 8-series ignition.
MSD Chevy Black V8 Pro-Billet Distributor - 85555
$399.95
Features:
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Mechanical advance assembly can be locked out for crank trigger systems
- Will not accept a vacuum advance canister
- O-ring seals can be added to modified blocks to improve oil pressure control
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
- Must be used with an MSD Ignition Control
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
- No CARB Exemption Order Number
- Nylon pads ensure smooth operation of the advance weights
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Advance weight pins are staked and tig welded to the plate
- CNC machined billet aluminum housing and billet aluminum base
- Special oil tract improves lubrication to the distributor and cam gear
Product Specifications:
- Product Details: This is our most popular performance distributor! Must be used with an MSD 6, 7 or 8-series ignition. Now in Black!
- Advance Type: Mechanical
- C.A.R.B. EO #: D-40-39
- Cap Color: Black
- Coil Wire Included: No
- Color: Black
- Distributor Cap Included: Yes
- Distributor Gear Included: Yes
- Distributor Type: Magnetic Pickup
- Engine: Chevy V8
- Gear: Cast Iron
- Gear Material: Cast Iron Melonized QPQ Coated
- Grade Type: Performance
- Housing Color: Black
- Housing Finish: Anodized
- Housing Material: 6061-T6 Billet Aluminum
- Ignition Box Required: Yes
- Ignition Coil Included: No
- Ignition Rotor Included: Yes
- Length: Standard
- Product Type: Distributor
