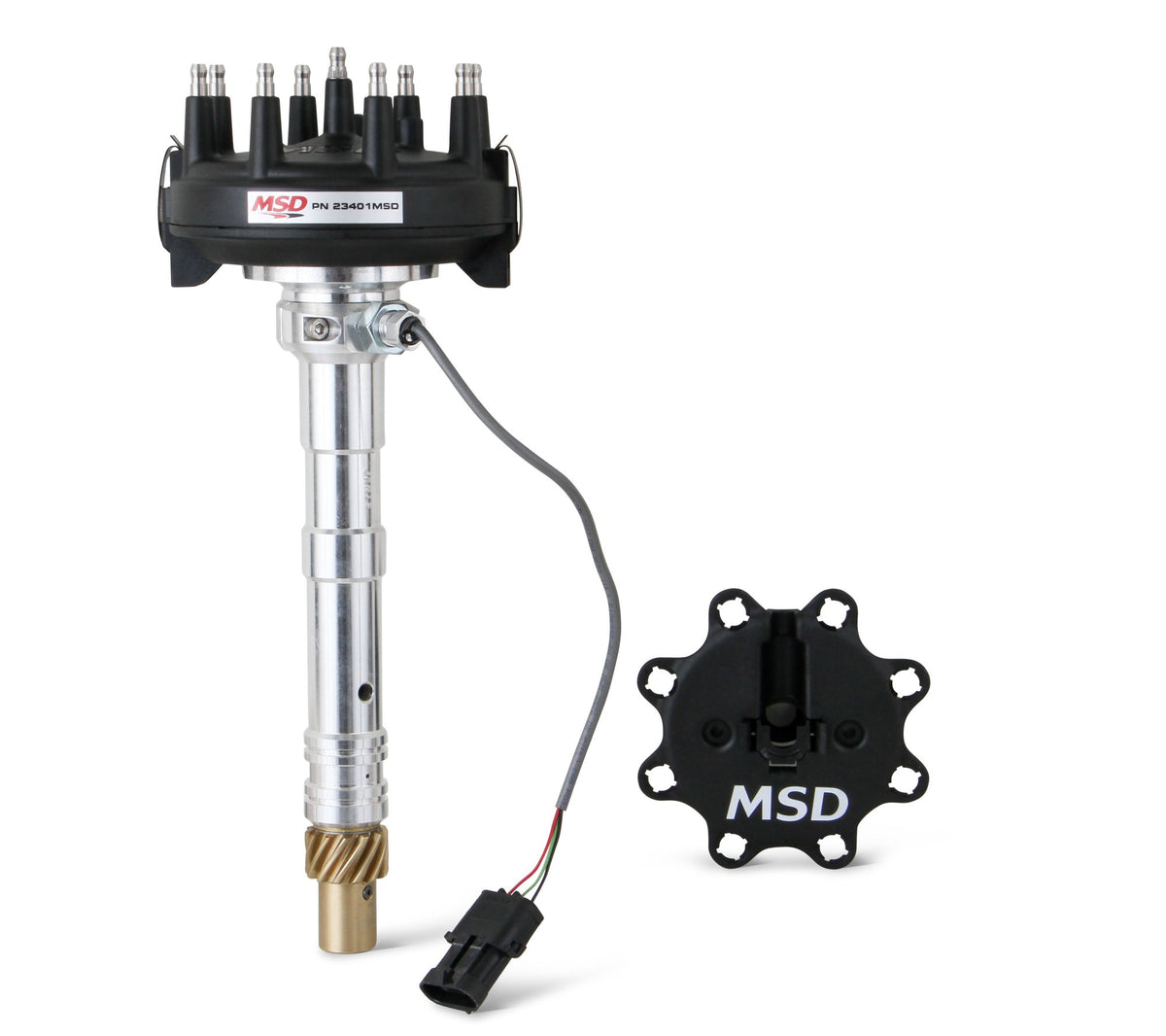

MSD Chevy Crank Trigger Distributor with adjustable Cam Sync Pick-up - 23401MSD
$799.95
Skip to product information
If your racecar benefits from the accuracy of an MSD Crank Trigger and is fueled by EFI, the MSD Crank Trigger Distributor with adjustable cam sync pick-up is just what you need.
Built on the tried and true Pro-Billet distributor platform, this distributor is equipped with an adjustable hall-effect cam sync sensor for fuel-injected engines that require a cam sync input. The cam sync can be adjusted up to + / - 30° to achieve the proper lead-time required for your particular EFI system.
The cam sync pickup is equipped with a bright LED making precise setup quick and easy.
MSD Chevy Crank Trigger Distributor with adjustable Cam Sync Pick-up - 23401MSD
$799.95
Features:
- Must be used with MSD Crank Trigger and MSD Ignition
- Shaft is guided by a sealed ball bearing and an extra-long sintered bushing
- CNC machined billet aluminum housing
- Oversized polished steel shaft with a QPQ coating for friction reduction
- Supplied with large diameter HEI style distributor cap and rotor
- O-ring seals can be added to modified blocks to improve oil pressure control
- Special oil tract improves lubrication to the distributor and cam gear
- Supplied with Bronze distributor gear, PN 8471
- Hall-Effect sensor accepts 5-18 Volts continuous input
- Adjustable slip collar for tall deck race engines
Product Specifications:
- Product Details: Distributor
- Color: Black
- Distributor Cap Included: Yes
- Distributor Type: Crank Trigger
- Engine: Chevy Small and Big Block
- Gear: Bronze
- Gear Material: Bronze
- Grade Type: Performance
- Ignition Box Required: Yes
- Ignition Coil Included: No
- Ignition Rotor Included: Yes
- Part Type: Distributor
- Product Type: Distributor
