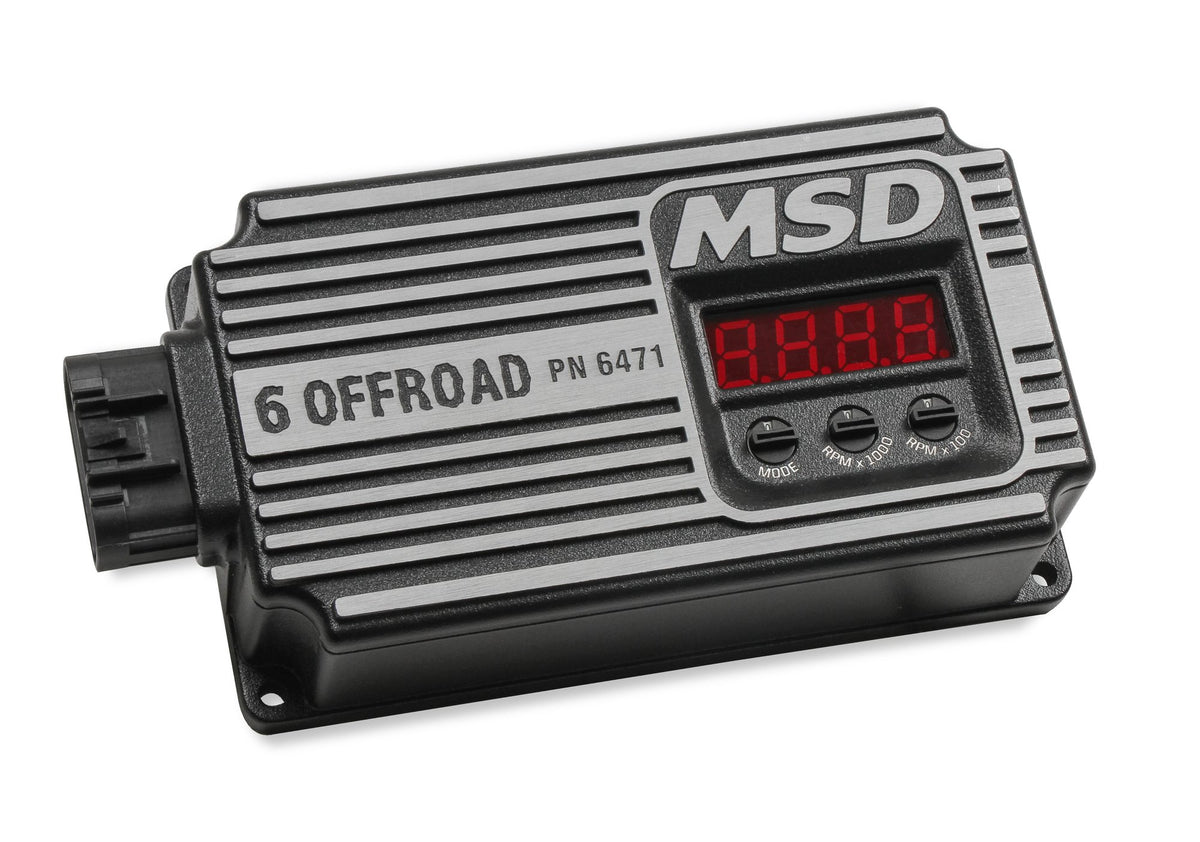

MSD Digital 6 Offroad Ignition - 6471
$599.95
Skip to product information
The 6 Offroad multi-sparks below 3,000 RPM on V8's ensuring clean, crisp throttle response and complete fuel burn when crawling at low speeds. Above 3,000 RPM a powerful capacitive discharge spark keeps the fire lit until you let off the skinny pedal. A smooth, accurate rev-limiter will protect your engine from over-rev damage due to drivetrain failure or a slick spot on the trail.
An easy to read LED display on the face of the unit clearly displays the rev-limit RPM. The display, in conjunction with rotary dials, is used to set the rev-limit, cylinder select, and even a timing start retard for race engines. The handy display can also show a live tach reading and even battery voltage with the quick turn of a knob.
If you're crawling rocks, high speed desert racing, or playing in any kind of harsh terrain in your offroad rig, the MSD 6 Offorad ignition is a must. Its fully potted design provides the ruggedness and reliability needed to get your 4WD to any destination.
MSD Digital 6 Offroad Ignition - 6471
$599.95
Features:
- Rugged housing to stand up to demanding offroad and race conditions
- 0.8 Amps per 1,000 RPM
- Large, easy to read LED display
- Fully potted design provides reliability even in high vibration and wet circumstances
- Full delivery of spark energy down to 6 volts battery supply
- Single plug-in connector for clean wiring
- Highly efficient, low current draw for extended battery life
- Built-in Start Retard adjustable in 0⁰, 10⁰ or 20⁰ increments for quick, easy starts and extend starter life
- LED displays rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
- MSD’s smoothest rev limiter yet! Easy on your engine
- Works on 4, 6 and 8 cylinder engines
- Reverse polarity and overheat protection provide ultimate reliability
- Simple setup of features such as the rev limiter with three rotary dials on the face of the unit
- 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250
Product Specifications:
- Product Details: Offroad Ignition, purpose built to handle tough, challenging trail use and race conditions.
- Color: Black
- Connector Gender: Female
- Connector Quantity: 1
- Current Draw: 1000 RPM
- Features: Start Retard
- Grade Type: Performance
- Height: 1.87 IN
- Ignition Type: Performance
- Length: 7.89 IN
- Maximum RPM: 12,000 RPM
- Mount Type: Surface Mount
- Mounting Hardware Included: Yes
- Primary Voltage: 535-550
- Product Type: Digital 6 Offroad Ignition Box
- Secondary Voltage: 45,000
- Spark Energy (mJ per spark): 135 w/ Blaster Coil / 150 w/ HVC Coil PN 8250
- Spark Series Duration: 20° Crankshaft Rotation
- Terminal Gender: Male
- Terminal Quantity: 12
- Voltage Required: 6-18
- Weight and Size: 2.5 lbs., 7.89L x 4.00W x 1.87H
- Width: 4 IN
