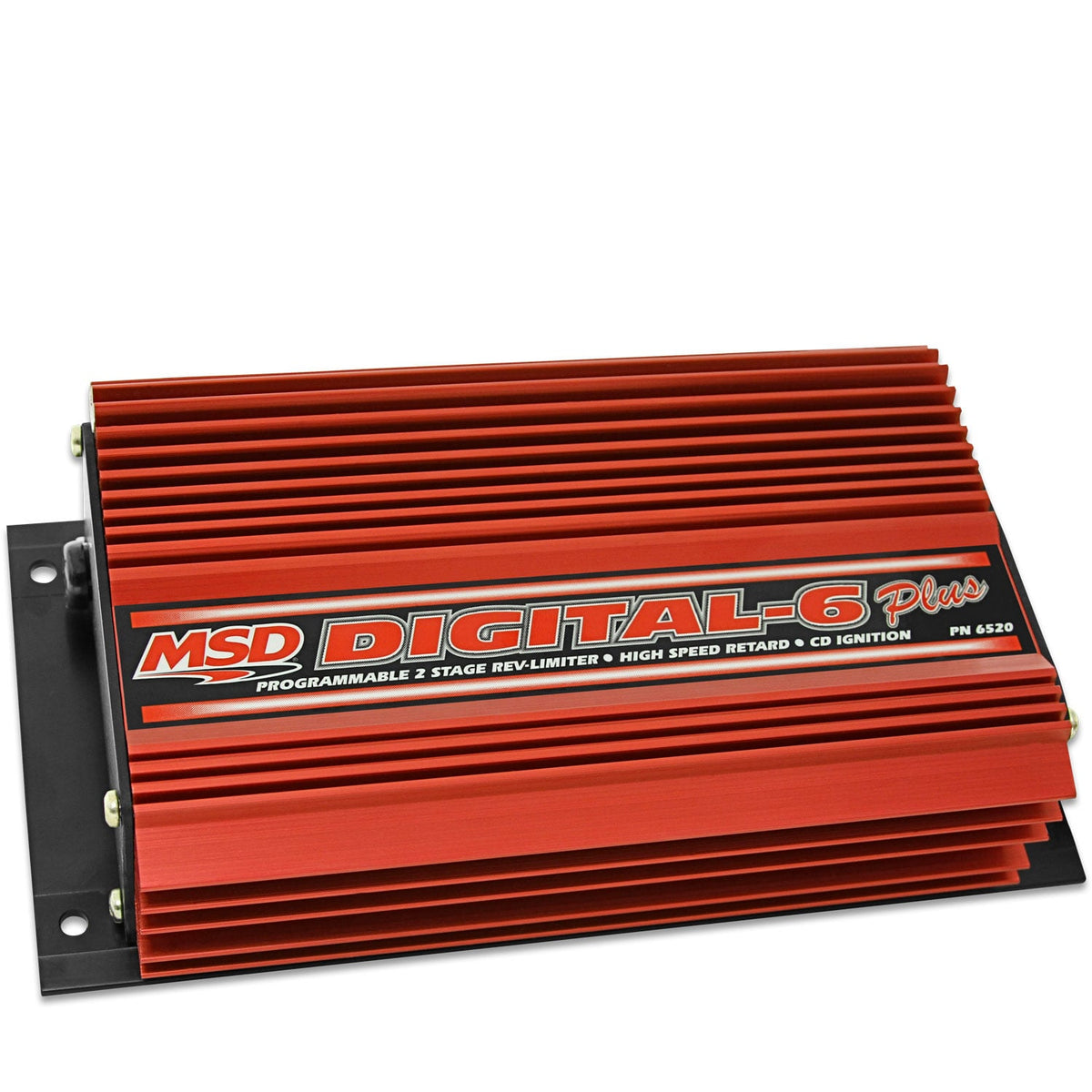

MSD Digital 6-Plus Ignition Control - 6520
$678.95
Skip to product information
Every spark of the Digital-6 Plus Ignition is packed with 135 millijoules of spark energy and 535 primary volts.
The MSD Digital 6 Plus uses a high-speed RISC microcontroller to control the ignition's output while constantly analyzing the various inputs such as supply voltage, trigger signals, and rpm. The high-speed controller can make extremely quick compensations to the output voltage, multiple spark series, timing, and rpm limits while maintaining accurate timing signals to within 1° and 1% of the rpm limits. The circuits and controller of the Digital 6 Plus have been thoroughly debounced and isolated to create protection against Electro-Magnetic Interference (EMI).
The Digital-6 Plus accepts points, amplifier, and mag pickup inputs and will run on 4, 6, or 8 cylinder engines.
The MSD Digital-6 Plus Ignition Control combines terrific power, digital accuracy, and great accessories making it ideal for street/strip applications.
For nitrous-equipped cars, the Digital-6 Plus offers a step retard that will retard the timing when the nitrous is activated. There is also a 2-step rev limiter for holeshot consistency and overrev protection.
MSD Digital 6-Plus Ignition Control - 6520
$678.95
Features:
- 12,500 RPM with 14.4 Volts
- Adjustable magnetic pickup compensation produces accurate trigger signals.
- Switch between two rev limits that adjust with rotary switches in 100 rpm increments.
- 12-18 Volts, Negative Ground
- LED display warns of trigger signal problems or faulty charging system.
- Start retard eases pressure on the starter, flywheel and engine.
- .7 Amp per 1,000 RPM
- Single stage retard for nitrous and top end performance.
Product Specifications:
- Product Details: Universal - Soft Touch 2 Step Rev Control - 1 Stage Retard Control - Start Retard
- C.A.R.B. EO #: D-722-2
- Color: Red
- Connector Gender: Male Female
- Connector Quantity: 1
- Current Draw: 1000 RPM
- Grade Type: Performance
- Height: 2.2 IN
- Ignition Type: Performance
- Length: 8.5 IN
- Maximum RPM: 12,500 RPM
- Mount Type: Surface Mount
- Mounting Hardware Included: Yes
- Primary Voltage: 535
- Product Type: Digital 6-Plus Ignition Control Box
- Secondary Voltage: 45,000
- Spark Energy (mJ per spark): 135
- Spark Series Duration: 20° Crankshaft Rotation
- Terminal Gender: Male Female
- Terminal Quantity: 10
- Voltage Required: 12-18
- Weight and Size: 3.7 lbs., 8.5L x 4.5W x 2.2H
- Width: 4.5 IN
